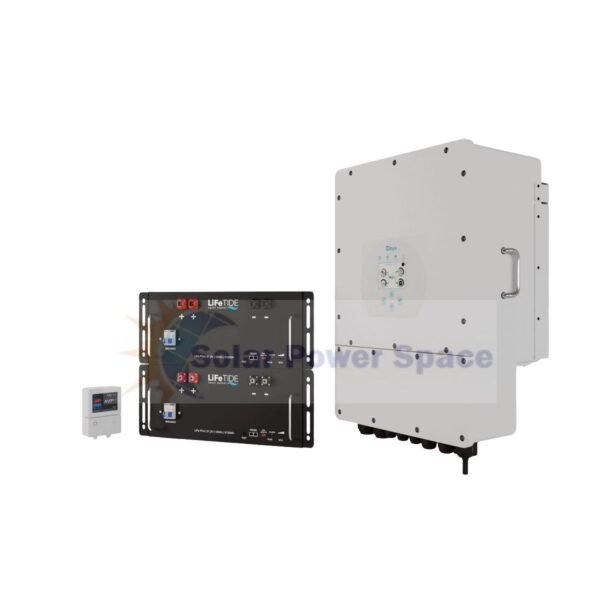

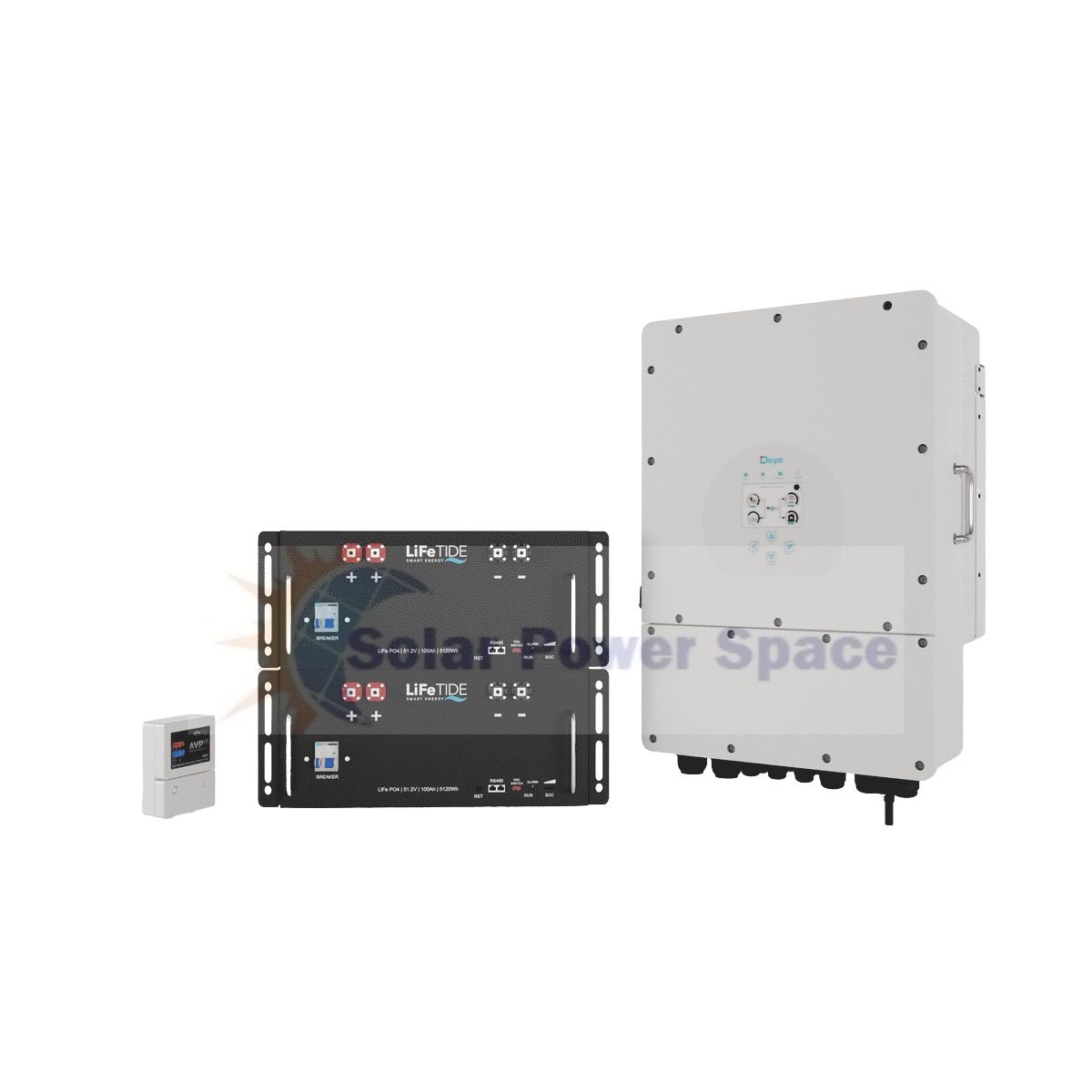

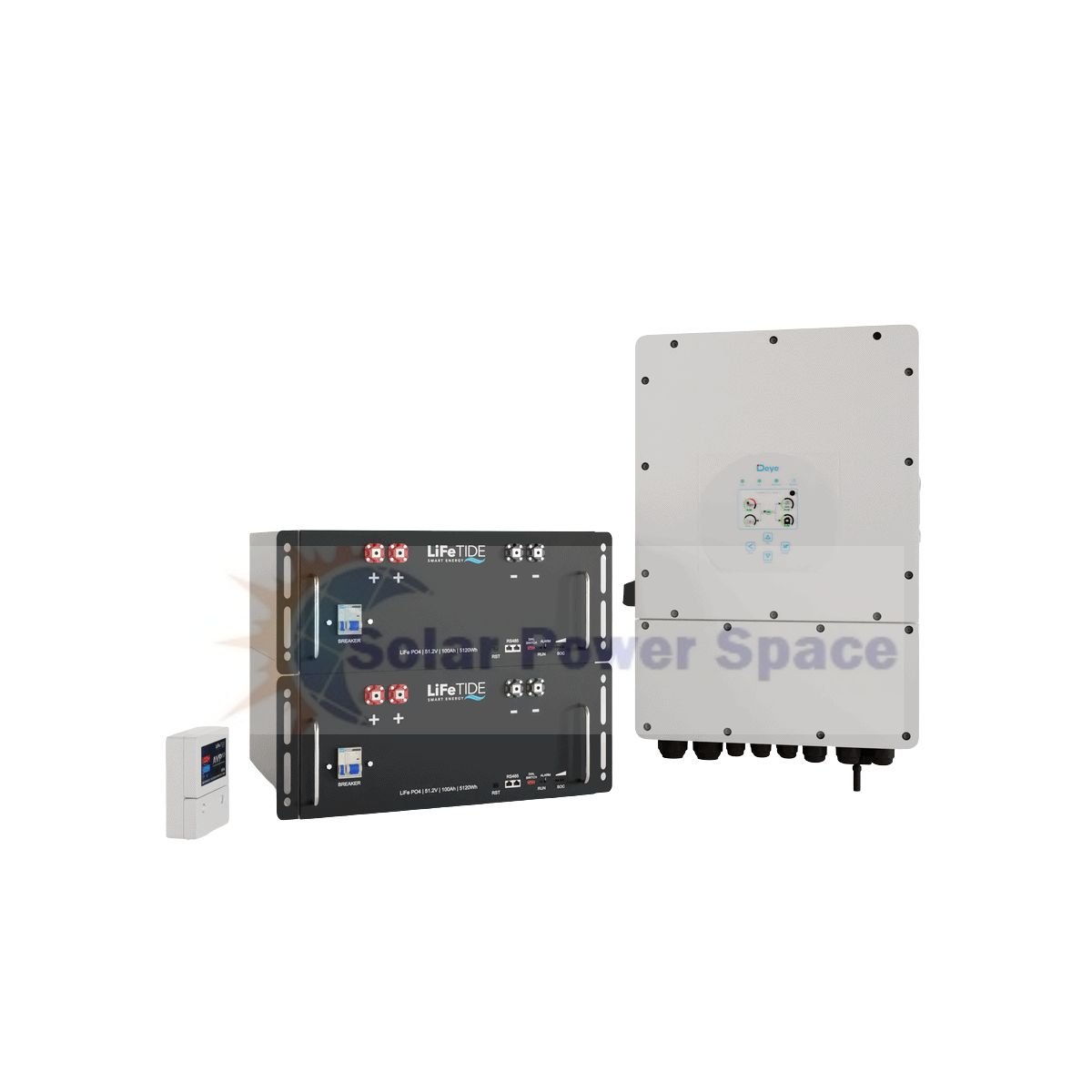

12kW Deye Load Shedding Kit | 2x 5120Wh Batteries

R77 099,00
Price incl. VAT

12kW Deye Load Shedding Kit | 2x 5120Wh Batteries

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: Deye 12kw Hybrid Solar Inverter
BATTERIES: 2x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , , ,
Brands: ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:
  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

Deye Hybrid | 12kW | 48V | 3 Phase

THE INVERTER

Experience the incredible versatility of the Deye 12kW Solar Inverter with its innovative blending technology and the ability to cater to both Essential and Non-Essential Loads.

This exceptional inverter offers a wide range of applications:

  1. Grid-Tied Inverter: Utilise the inverter with solar panels only, seamlessly connecting to the grid to maximise your solar energy production and reduce your reliance on the utility.
  2. Load Shedding Solution: Use the inverter with batteries only, providing a reliable backup power source during load shedding or grid outages. Keep your essential loads powered and maintain your daily activities uninterrupted.
  3. Hybrid Solution: Enjoy the best of both worlds by harnessing the power of solar energy and the grid. The Deye 12kW Solar Inverter enables you to charge your batteries using solar panels and the grid, ensuring a continuous power supply during outages or load shedding.

Features:

  • 100% unbalanced output, each phase Max. output up to 50% rated power.
  • 48V low voltage battery, transformer isolation design.
  • 6 time periods for battery charging/discharging.
  • Max. charging/discharging current of 240A.
  • Frequency droop control.
  • DC couple and AC couple to retrofit existing solar system.
  • Support storing energy from diesel generator

Battery Input Data

  • Battery Type: Lead-acid or Li-lon
  • Battery Voltage Range (V): 40-60V
  • Max. Charging Current (A): 240A
  • Max. Discharging Current (A): 240A
  • Charging curve: 3 Stages/Equalization
  • External Temperature Sensor: Optional
  • Charging Strategy for Lithium Battery: Self-adaption to BMS

PV String Input Data

  • Max. DC Input Power (W): 15600W.
  • PV input Voltage (V): 550V (150V-800V).
  • MPPT Range (V): 200-650V.
  • Start-up Voltage (V): 160V.
  • PV Input Current (A): 25A + 125.5A.
  • No. of MPPT Trackers: 2
  • No. of Strings Per MPPT Tracker: 2+1.

AC Output Data

  • Rated AC Output and UPS Power (W): 12000W
  • Max AC Output Power (W): 13200W
  • Peak Power(off-grid): 2 times of rated power, 10 S.
  • AC Output Rated Current(A): 18A
  • Max.AC Current(A): 27A
  • Max Continuous AC Pass-through(A): 50A.
  • Output Frequency and Voltage: 50/60Hz; 230/400Vac (Three Phase)
  • Grid Type: Three Phase
  • Current Harmonic Distortion: THD<3% (Linear load<1.5%).

Efficiency

  • Max. Efficiency: 97.60%
  • Euro Efficiency: 97.00%
  • MPPT Efficiency: 99.90%

Protection

  • PV Arc Fault Detection: Integrated (Except European Type)
  • PV Input Lightning Protection: Integrated
  • Anti -islanding Protection: Integrated
  • PV String Input Reverse Polarity Protection: Integrated
  • Insulation Resistor Detection: Integrated
  • Residual Current Monitoring Unit: Integrated
  • Output over Current Protection: Integrated
  • Output Shorted Protection: Integrated
  • Output over Voltage Protection: Integrated

Certifications and Standards

  • Grid Regulation: UL1741, IEEE1547, RULE21, VDE0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IE61727
  • Safety Regulation: IEC62109-1, IEC62109-2
  • EMC: EN61000-6-1, EN61000-6-3, FCC 15 class B

General Data

  • Operating Temperature Range ( C ): -25—60 C , >45 C Derating
  • Cooling: Fan
  • Noise (dB): <30
  • Communication with BMS: RS485; CAN
  • Weight (kg): 37
  • Size (mm): 422W X 685H X 281mm
  • Protection Degree: IP65
  • Installation Style: Wall-mounted
  • Warranty: 5 years
Essential & Non-Essential Loads
  • Separate and prioritize your heavy appliances, saving battery backup for essential loads.
Completely Autonomous
  • The Autonomous Hybrid Solar Inverter effortlessly keeps the lights on and your bills to zero. Smart technology ensures the inverter knows what to do and when to do it.
Robust & Reliable
  • The Fusion inverter boasts a great design and exceptional quality, making it a preferred choice. Stable and robust performance when configured correctly.
Compatibility
  • Compatible with most AGM and Lithium-ion batteries on the market, ensuring flexibility. Years of development guarantee stability and robustness when configured correctly.
Blending AC & DC
  • True Hybrid inverter that efficiently blends DC (panels & batteries) with the AC grid power.
Phone App
  • Monitor your consumption remotely with the Solar System monitoring iPhone or Android app.
LCD Screen
  • Change settings and monitor the inverter’s performance with the convenient LCD display.
5-Year Warranty
  • Enjoy peace of mind with a standard 5-year warranty, ensuring reliable performance.

PRODUCT SPECIFICATIONS

Weight 141 kg
Dimensions 61 × 52 × 72 cm
Brand LiFeTIDE, Deye
Product Type Load Shedding Kit
System Phase Three Phase
System Type Hybrid
kW Size 12kW
Battery Storage Capacity 5120Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units 16 Batteries, 16 Inverters
Maximum PV Array Power 15600W/inverter
Mounting Battery Cabinet, Wall Mount
Voltage 48V
Warranty Manufacturer Warranty Per Item
