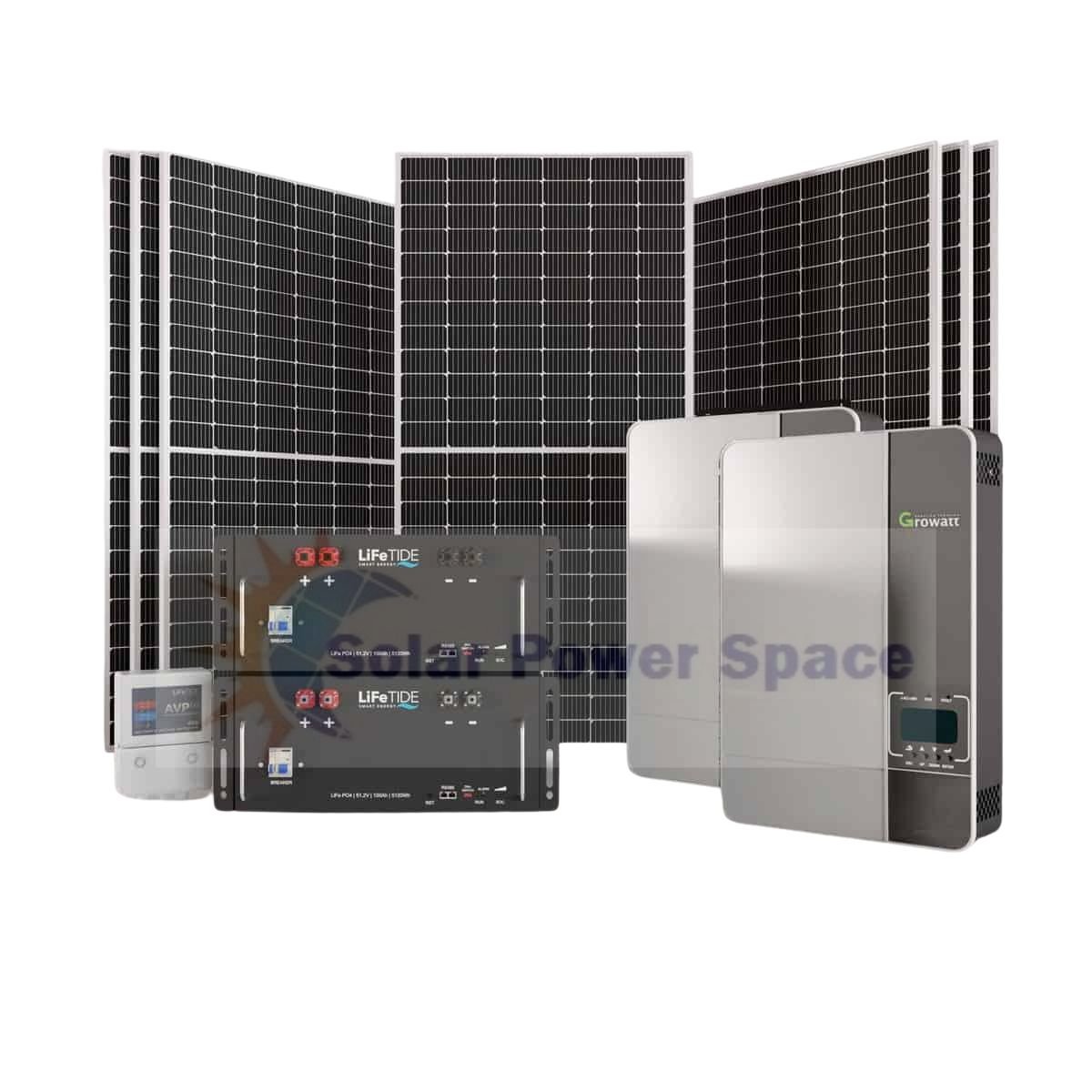

12kW Growatt Solar System | 2x LiFePO4 Battery | 5x 460W/465W Solar Panels

R54 685,00
Price incl. VAT

12kW Growatt Solar System | 2x LiFePO4 Battery | 5x 460W/465W Solar Panels

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: 2x Growatt SPF 6000 ES | 2x 6Kw | 48V
BATTERY: 2x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
PANELS: 5x 460W/465W Solar Panels (JA Solar, Jinko or similar)
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , ,
Brands: , ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

Growatt SPF 6000 ES | 5KW | 48V

THE INVERTER

With enhanced power capacity and next-generation technology, the Growatt SPF 6000ES Plus delivers reliable, high-performance power conversion for modern solar systems. Offering a robust 6000W output, it’s perfectly suited for both residential and light commercial applications. Its integrated dual MPPT charge controllers maximise solar energy yield, while the smart, user-friendly interface and optional WiFi/GPRS connectivity allow for effortless monitoring and system management. Trust the SPF 6000ES Plus to power your energy independence with efficiency, flexibility, and confidence.

Key Features

  • Dual MPPT solar charge controller (integrated)

  • Equalisation charging function for battery health

  • Supports up to 500 VDC PV input

  • Selectable input priority: solar or grid

  • WiFi/GPRS remote monitoring (optional)

  • Parallel support for up to 6 units (battery required)

  • Smart hybrid mode: PV and grid can supply load simultaneously

  • Scalable system – add solar panels later

  • From the world’s #1 residential inverter brand

General Specifications

  • Model: Growatt SPF 6000ES Plus

  • Battery Voltage: 48 VDC

  • Compatible Battery Types: Lithium / Lead-acid

Inverter Output [AC]

  • Rated Power: 6000 W

  • AC Output Voltage (Battery Mode): 230 VAC ± 5%

  • Surge Power: 12000 VA (for 5 sec)

  • Peak Efficiency: ≥ 93%

  • Waveform: Pure sine wave

  • Transfer Time: 10–20 ms

Solar Charger

  • Max PV Array Power: 8000 W

  • MPPT Operating Range: 120 – 460 VDC

  • Max PV Open Circuit Voltage: 500 VDC

  • Max Solar Charge Current: 100 A

AC Charger

  • Max Charge Current: 80 A

  • Input Voltage: 230 VAC

  • Selectable Voltage Range: 170–280 VAC (user configurable)

  • Frequency Range: 50/60 Hz (auto sensing)

Physical

  • Protection Rating: IP20 (indoor use)
  • Dimensions (W × H × D): 460 mm × 395 mm × 132 mm

  • Weight: 13.5 kg

Monocrystalline Solar Panel | 460W

JA SOLAR PANEL

The JA Solar 460W Monocrystalline Solar Panel is a high-quality and high-performance solar panel designed to deliver exceptional power output and efficiency. With its advanced monocrystalline technology, this panel maximises energy conversion, ensuring optimal performance even in low-light conditions.

Impressive Power Output

With a power rating of 460 Watts, this solar panel offers excellent power generation capabilities, allowing you to maximise your solar energy production and reduce your reliance on traditional energy sources.

Enhanced Efficiency

The monocrystalline design of the panel ensures high efficiency, capturing more sunlight and converting it into usable energy. This results in greater energy production and improved overall system performance.

Durable and Weather-Resistant

Built with high-quality materials, the JA Solar 460W Monocrystalline Solar Panel is designed to withstand various weather conditions, including heavy rain, snow, and strong winds. Its durable construction ensures long-term reliability and performance.

Versatile Applications

Whether you’re installing a residential or commercial solar system, this panel is suitable for a wide range of applications. Its versatility allows for seamless integration into various rooftop or ground-mounted installations.

Eco-Friendly and Sustainable

By harnessing solar energy, you contribute to a cleaner and more sustainable future. The JA Solar 460W Monocrystalline Solar Panel enables you to reduce your carbon footprint and lower your reliance on fossil fuels.

Rigorous Quality Control

JA Solar is renowned for its strict quality control measures, ensuring that each solar panel meets the highest industry standards. You can trust in the reliability and longevity of the JA Solar brand.

Easy Installation

The panel features a user-friendly design, making installation quick and hassle-free. Compatible with various mounting systems, it allows for flexible and convenient installation options.
