12kW LuxPower Load Shedding Kit | 2x 5120Wh Batteries

R71 899,00
Price incl. VAT

12kW LuxPower Load Shedding Kit | 2x 5120Wh Batteries

Need help choosing the right Solar equipment? Call us today!

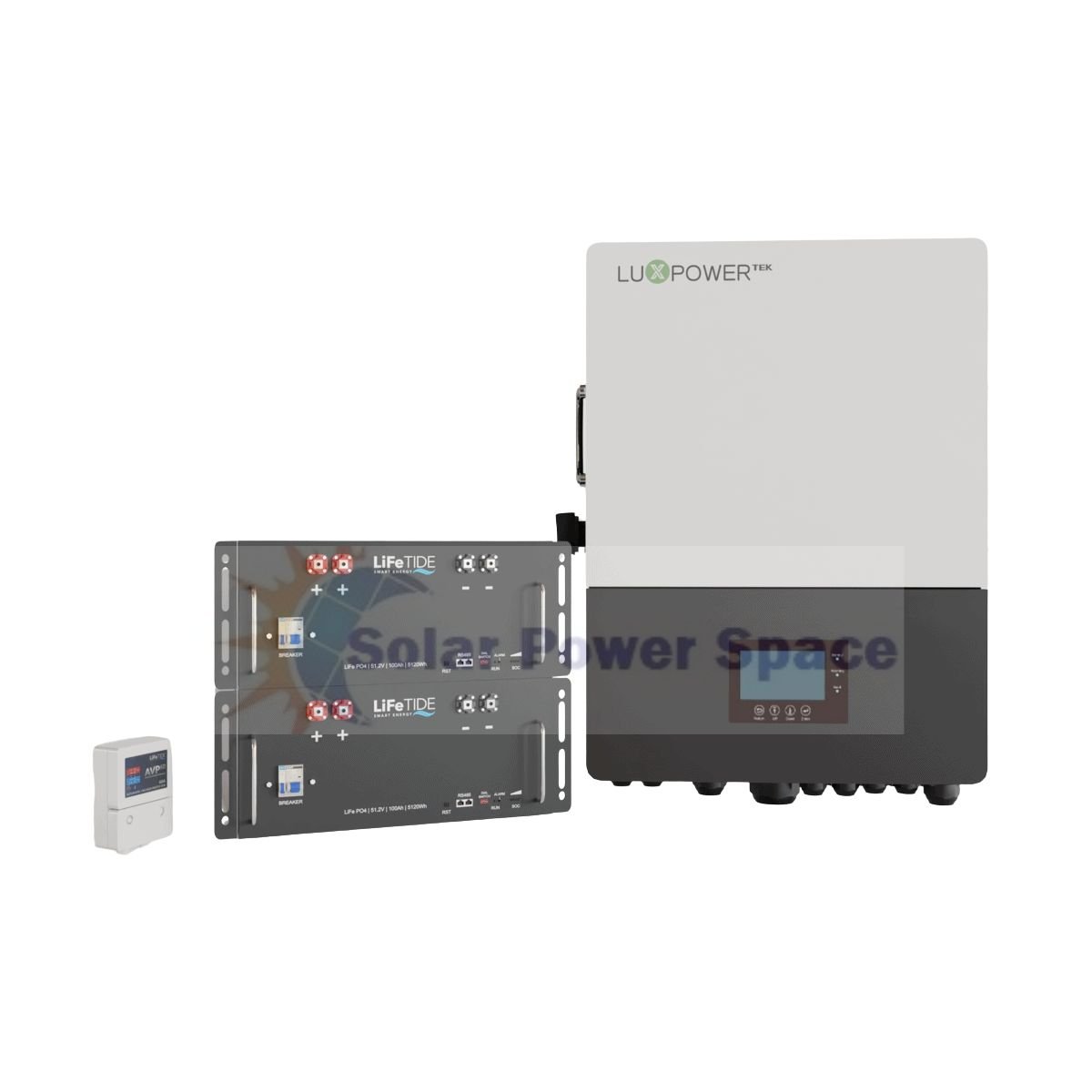

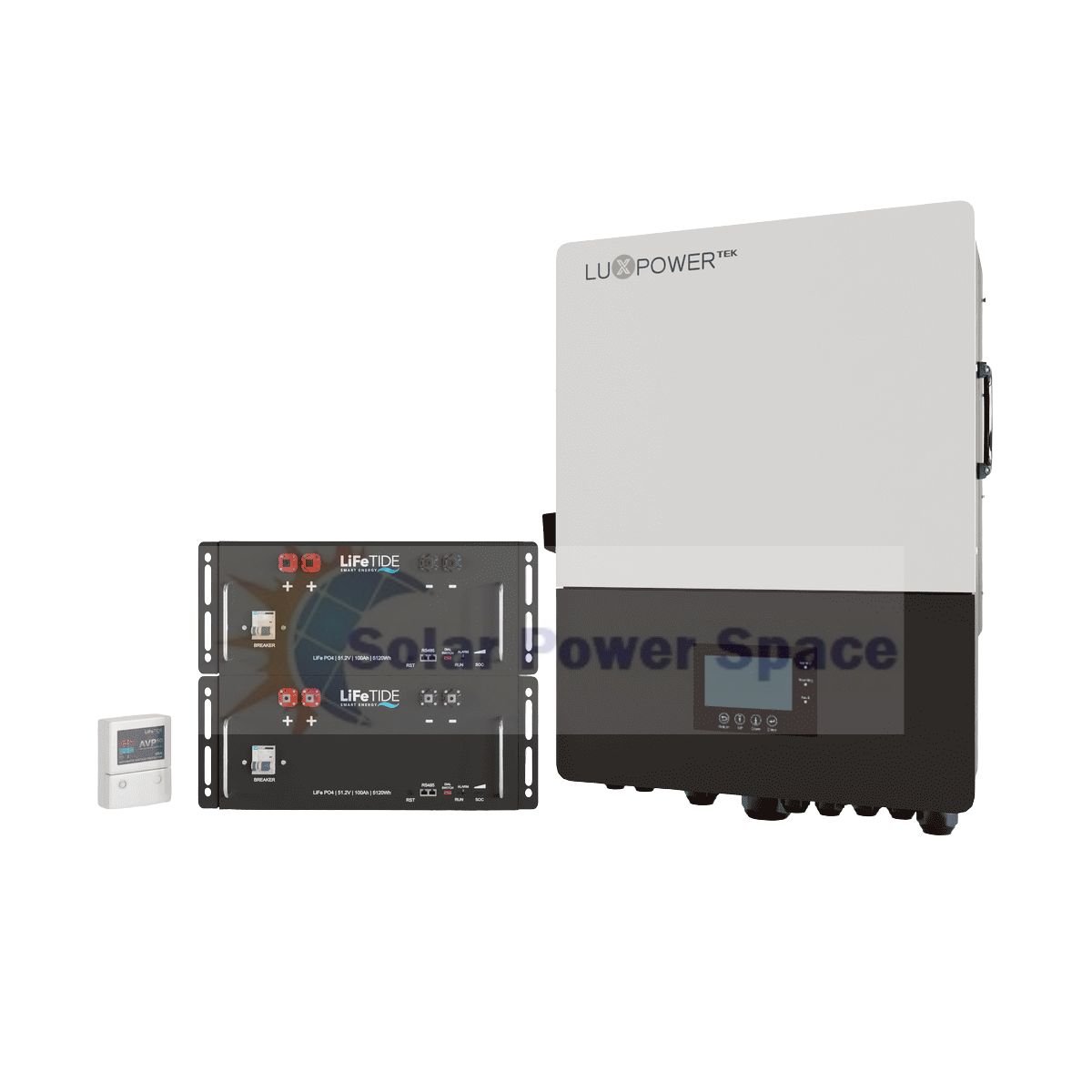

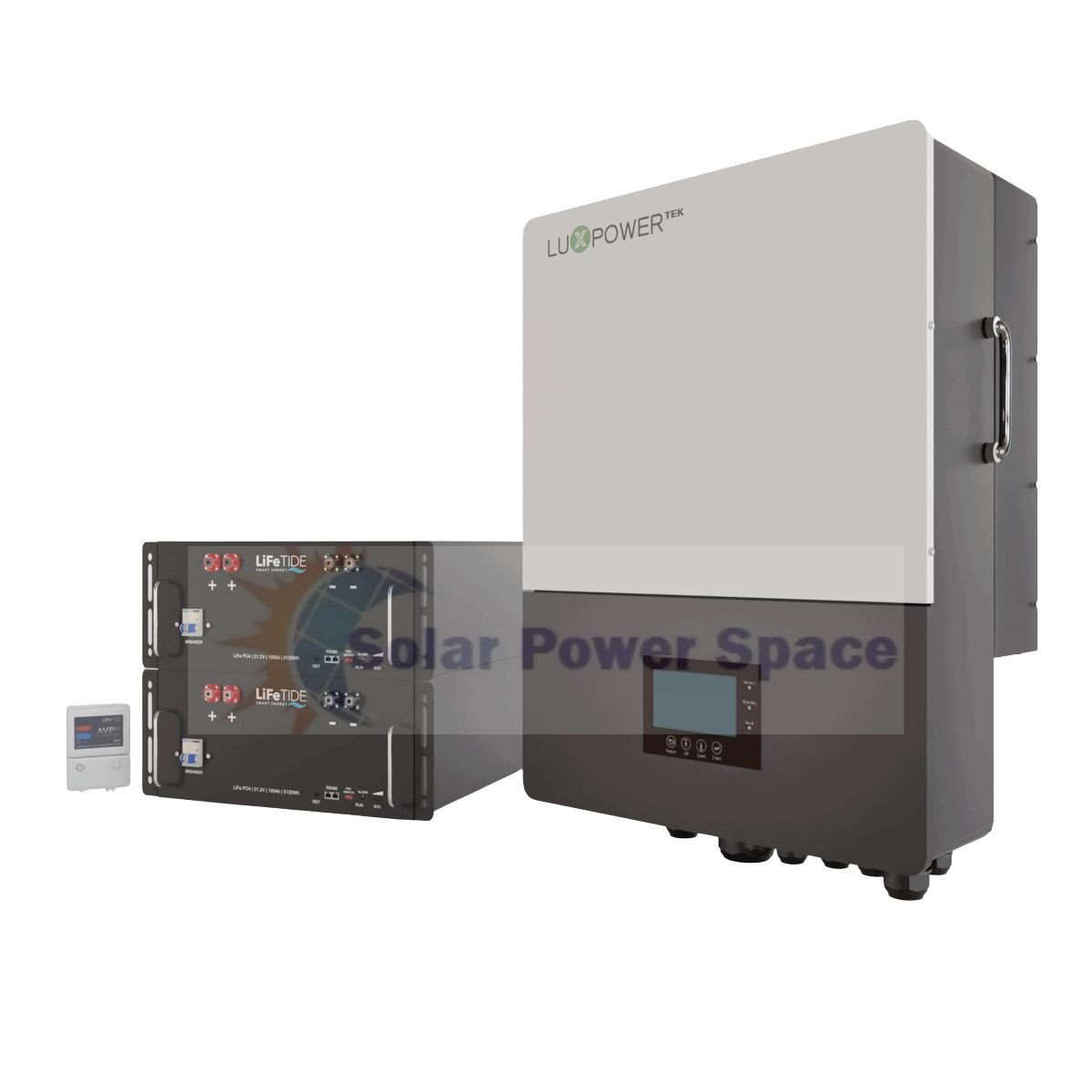

Everything you need when the power goes out:

INVERTER: LuxPower 12kw Hybrid Solar Inverter
BATTERIES: 2x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , ,
Brands: ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

LuxPower | 12kW | 48V

THE INVERTER

The LuxPower LXP 12kW Hybrid Inverter is a high-quality inverter that delivers exceptional performance and reliability for large residential and commercial applications.

With its advanced features and cutting-edge technology, this inverter is designed to meet the demands of offhigh-end solar systems. It boasts two high voltage MPPTs and a massive maximum PV input of 18,000 Watts, allowing for efficient energy conversion and utilisation.

The LuxPower LXP 12kW Inverter is also compatible with a wide range of lithium batteries, providing flexibility and versatility in system configuration. With the added convenience of off-site monitoring via an intuitive app, you can easily track and manage your energy production.

LuxPower LXP hybrid inverters support variable working modes

Self consumption mode: Solar energy is first used to carry the load, and the remaining solar energy is used to charge the batteries, which can then charge and integrate the solar energy into the grid.

Force charge and discharge mode: The power inverter battery can charge or discharge the battery according to the time set by the user.

Charge first mode: Solar energy will be used first to charge the inverter battery, then for the home load, and finally fed into the grid. This model is suitable for areas with unstable power supply from the grid.

Battery Parameters

  • Compatible Battery Type: Lead-acid / Lithium
  • Nominal Battery Voltage: 48VDC
  • Battery Voltage Range: 40VDC-60VDC
  • Maximum Charge / Discharge Current: 250A
  • Maximum Charge / Discharge Power: 12 000W

DC PV Input

  • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
  • Maximum PV Input: 18 000W
  • DC Input Voltage Range: 100VDC-600VDC
  • Nominal DC Input Voltage: 360VDC
  • Full Power MPPT Voltage Range: 230VDC-500VDC
  • Maximum DC Input Current: 25A / 15A / 15A
  • MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)

  • Nominal Power: 12 000W
  • Nominal AC Voltage: 240VAC
  • Operating Voltage Range: 180VAC-270VAC
  • Maximum Continuous AC Current: 50A @ 240VAC
  • Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)

  • UPS Max Output Power: 12 000W
  • UPS Nominal Output Voltage: 240VAC
  • UPS Nominal Output Frequency: 50Hz / 60Hz
  • UPS Nominal Output Current: 50A @ 240VAC
  • Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
  • Switching Time: <20ms

Environment Limit

  • Ingress Protection: IP65
  • Operating Temperature Range: -25°C to +60°C
  • Cooling: Fan
  • Communication: RS485 / WIFI / CAN

PRODUCT SPECIFICATIONS

Weight 147 kg
Dimensions 61 × 52 × 72 cm
Brand LiFeTIDE, Luxpower
Product Type Load Shedding Kit
System Phase Single Phase
System Type Hybrid
kW Size 12kW
Battery Storage Capacity 5120Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units 10 Inverters, 16 Batteries
Maximum PV Array Power 18000W/inverter
Mounting Battery Cabinet, Wall Mount
Voltage 48V
Warranty Manufacturer Warranty Per Item
