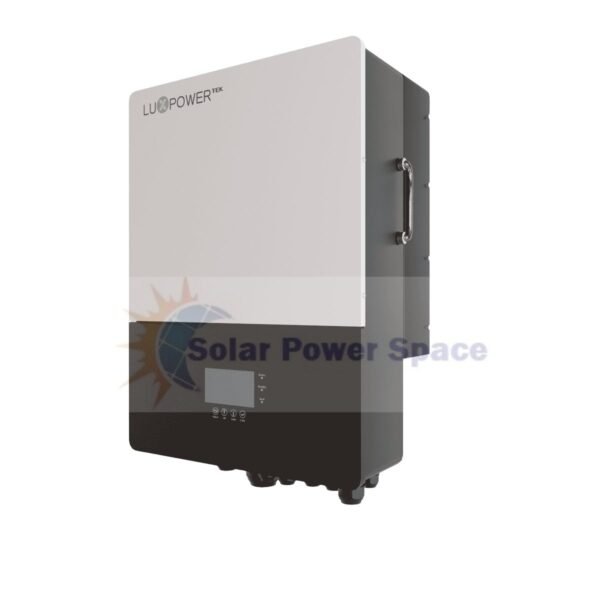

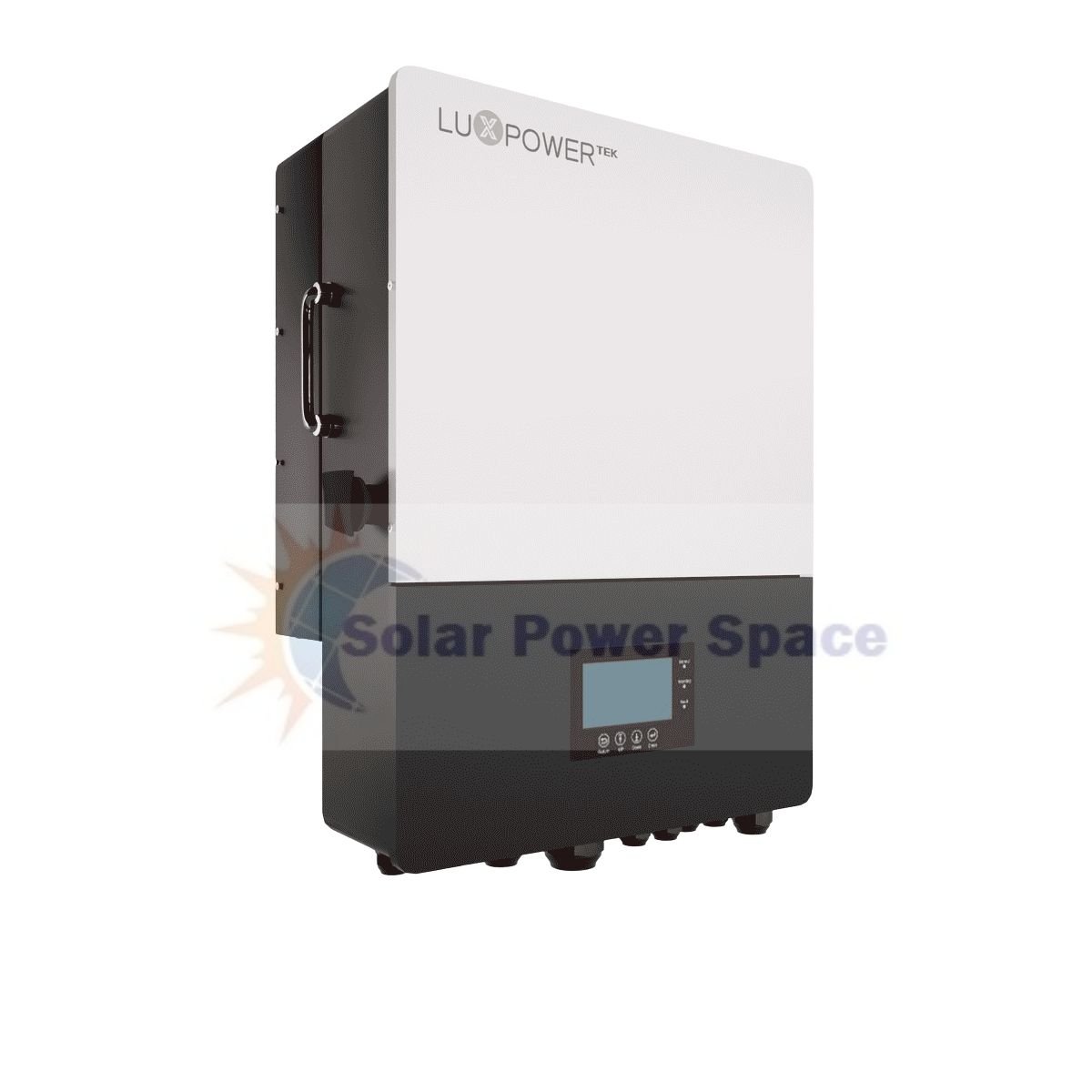

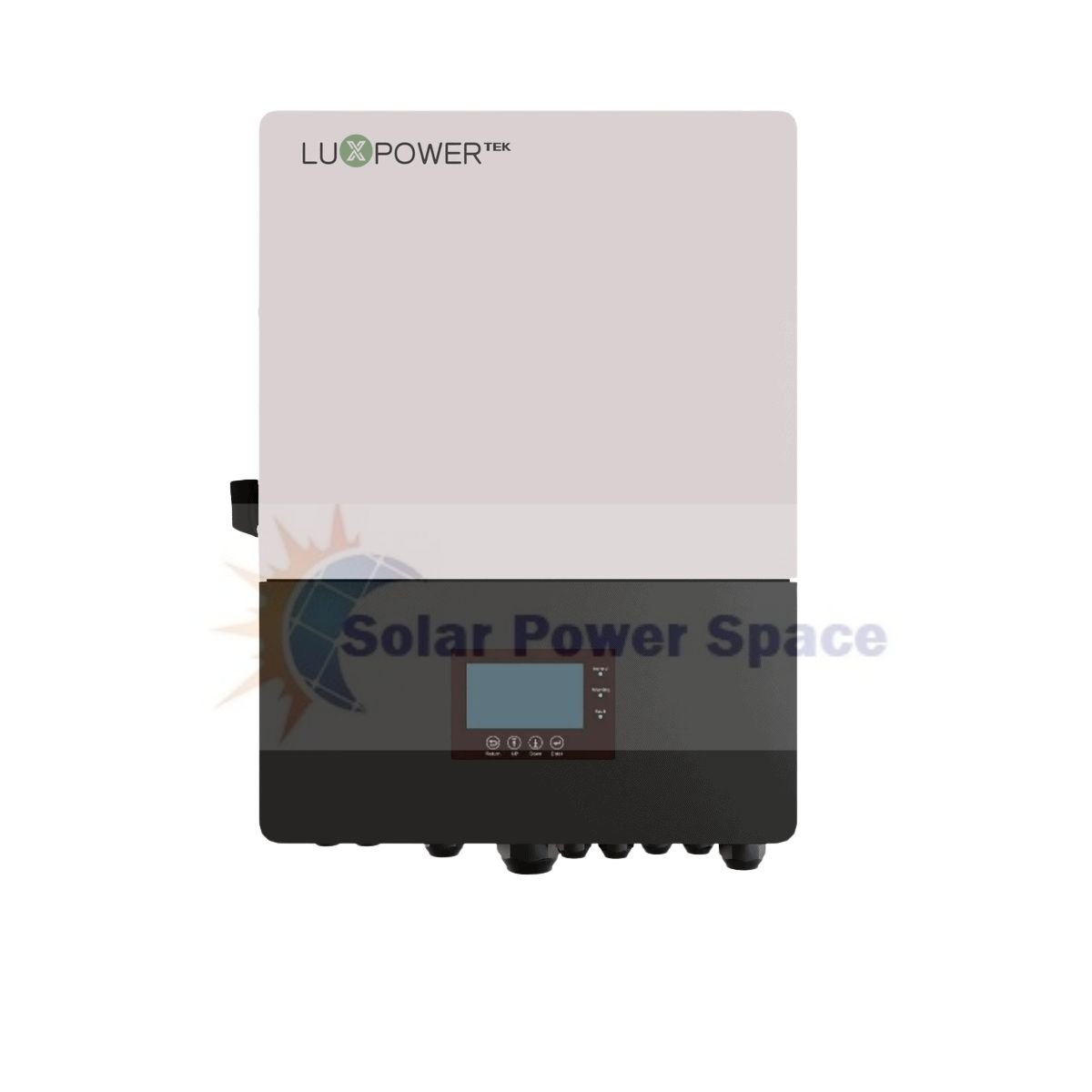

12kW LuxPower LXP Hybrid Inverter

The LuxPower LXP 12kW Hybrid Inverter is a high-quality inverter that delivers exceptional performance and reliability for large residential and commercial applications.

With its advanced features and cutting-edge technology, this inverter is designed to meet the demands of offhigh-end solar systems. It boasts two high voltage MPPTs and a massive maximum PV input of 18,000 Watts, allowing for efficient energy conversion and utilisation.

The LuxPower LXP 12kW Inverter is also compatible with a wide range of lithium batteries, providing flexibility and versatility in system configuration. With the added convenience of off-site monitoring via an intuitive app, you can easily track and manage your energy production.

LuxPower LXP hybrid inverters support variable working modes

Self consumption mode: Solar energy is first used to carry the load, and the remaining solar energy is used to charge the batteries, which can then charge and integrate the solar energy into the grid.

Force charge and discharge mode: The power inverter battery can charge or discharge the battery according to the time set by the user.

Charge first mode: Solar energy will be used first to charge the inverter battery, then for the home load, and finally fed into the grid. This model is suitable for areas with unstable power supply from the grid.

Battery Parameters

• Compatible Battery Type: Lead-acid / Lithium
• Nominal Battery Voltage: 48VDC
• Battery Voltage Range: 40VDC-60VDC
• Maximum Charge / Discharge Current: 250A
• Maximum Charge / Discharge Power: 12 000W

DC PV Input

• Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
• Maximum PV Input: 18 000W
• DC Input Voltage Range: 100VDC-600VDC
• Nominal DC Input Voltage: 360VDC
• Full Power MPPT Voltage Range: 230VDC-500VDC
• Maximum DC Input Current: 25A / 15A / 15A
• MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)

• Nominal Power: 12 000W
• Nominal AC Voltage: 240VAC
• Operating Voltage Range: 180VAC-270VAC
• Maximum Continuous AC Current: 50A @ 240VAC
• Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)

• UPS Max Output Power: 12 000W
• UPS Nominal Output Voltage: 240VAC
• UPS Nominal Output Frequency: 50Hz / 60Hz
• UPS Nominal Output Current: 50A @ 240VAC
• Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
• Switching Time: <20ms

Environment Limit

• Ingress Protection: IP65
• Operating Temperature Range: -25°C to +60°C
• Cooling: Fan
• Communication: RS485 / WIFI / CAN
