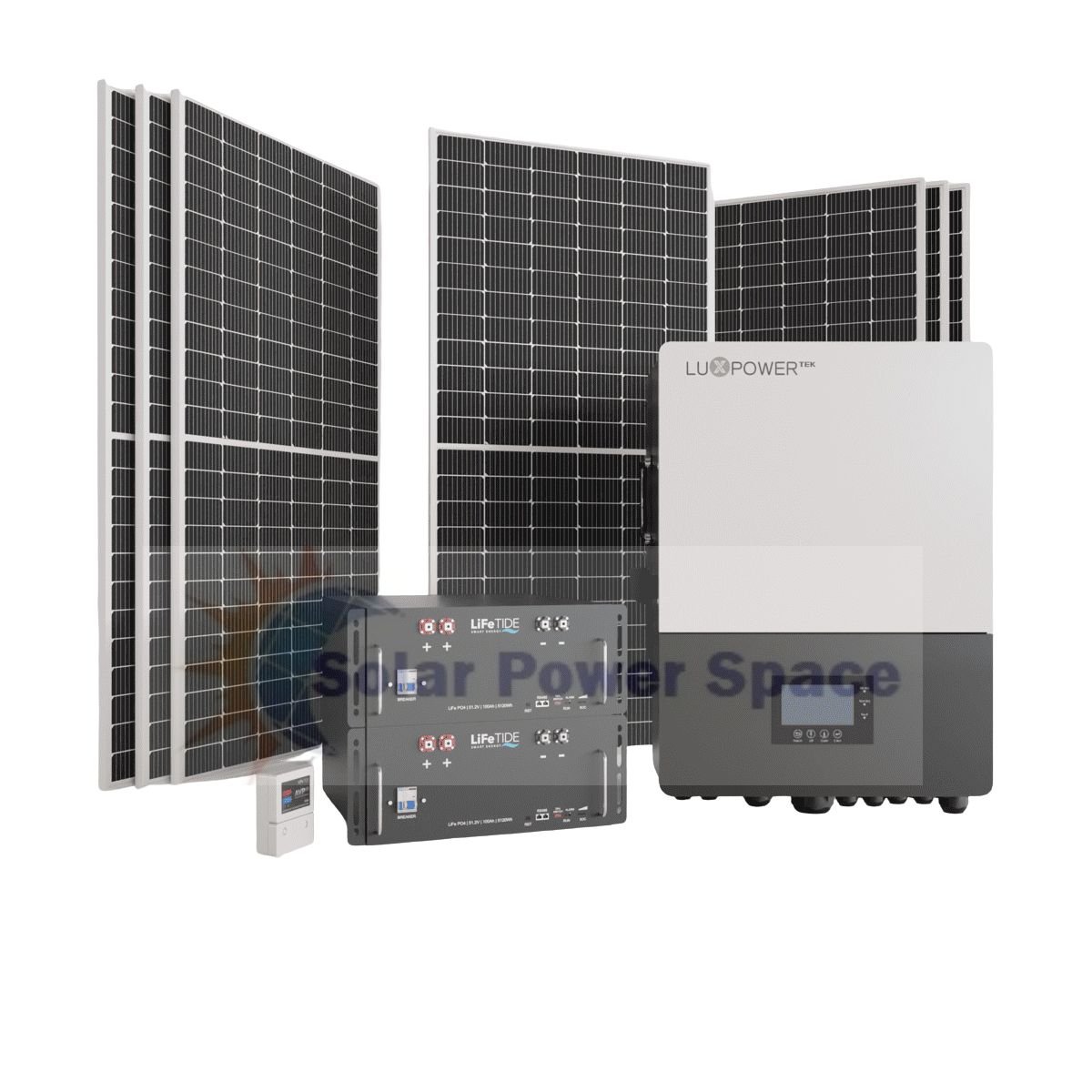

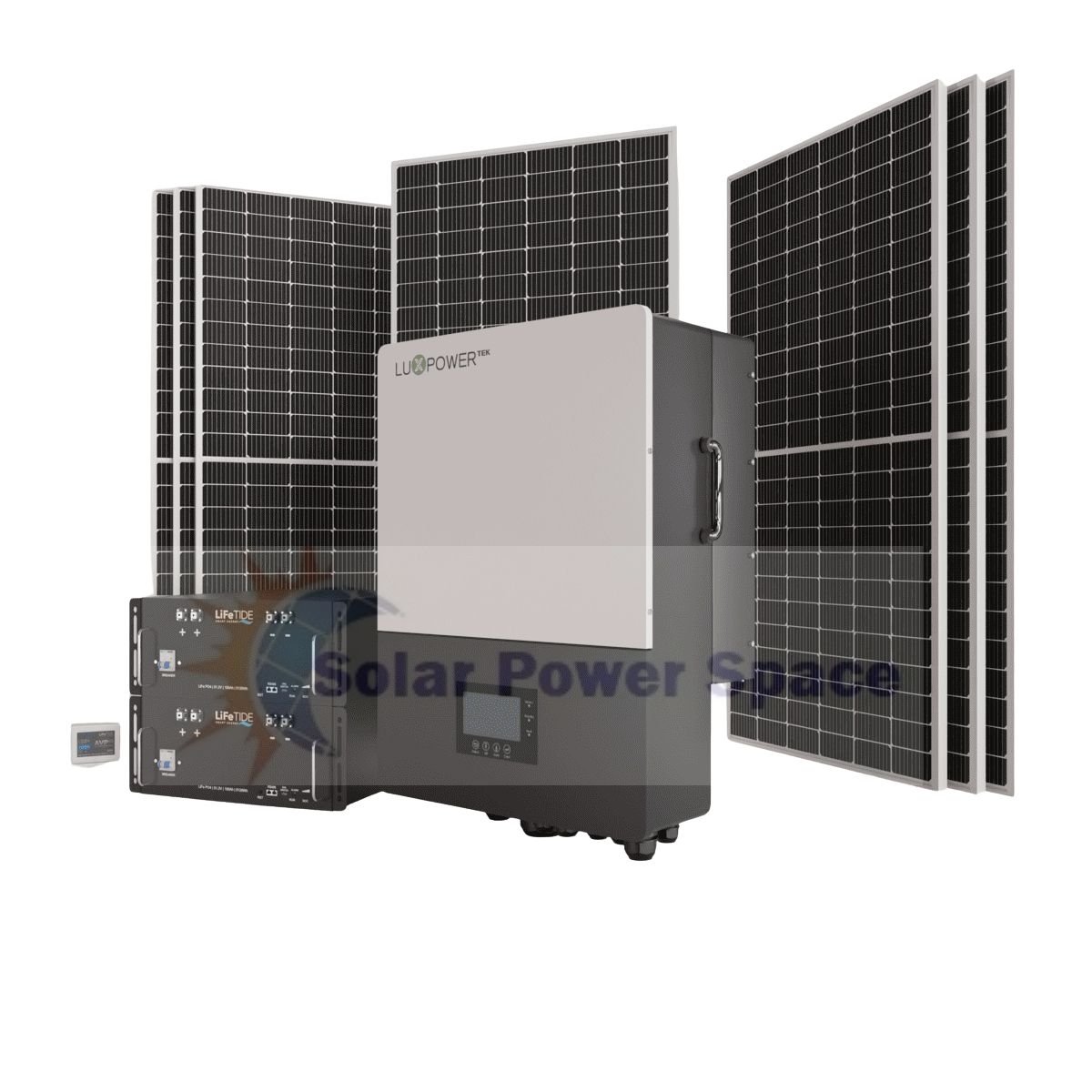

12kW LuxPower Solar System | 2x 5120Wh Batteries | 5x 460W/465W Solar Panels

R79 449,00
Price incl. VAT

12kW LuxPower Solar System 2x 5120Wh Batteries 5x 460W/465W Solar Panels

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: LuxPower LXP Hybrid Inverter | 12Kw | 48V
BATTERIES: 2x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
PANELS: 5x 460W/465W Solar Panels (JA Solar, Jinko or similar)
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , ,
Brands: , ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

LuxPower | 12kW | 48V

THE INVERTER

The LuxPower LXP 12kW Hybrid Inverter is a high-quality inverter that delivers exceptional performance and reliability for large residential and commercial applications.

With its advanced features and cutting-edge technology, this inverter is designed to meet the demands of offhigh-end solar systems. It boasts two high voltage MPPTs and a massive maximum PV input of 18,000 Watts, allowing for efficient energy conversion and utilisation.

The LuxPower LXP 12kW Inverter is also compatible with a wide range of lithium batteries, providing flexibility and versatility in system configuration. With the added convenience of off-site monitoring via an intuitive app, you can easily track and manage your energy production.

LuxPower LXP hybrid inverters support variable working modes

Self consumption mode: Solar energy is first used to carry the load, and the remaining solar energy is used to charge the batteries, which can then charge and integrate the solar energy into the grid.

Force charge and discharge mode: The power inverter battery can charge or discharge the battery according to the time set by the user.

Charge first mode: Solar energy will be used first to charge the inverter battery, then for the home load, and finally fed into the grid. This model is suitable for areas with unstable power supply from the grid.

Battery Parameters

  • Compatible Battery Type: Lead-acid / Lithium
  • Nominal Battery Voltage: 48VDC
  • Battery Voltage Range: 40VDC-60VDC
  • Maximum Charge / Discharge Current: 250A
  • Maximum Charge / Discharge Power: 12 000W

DC PV Input

  • Max DC Input for Single MPPT: 12 000W / 7 000W / 7 000W
  • Maximum PV Input: 18 000W
  • DC Input Voltage Range: 100VDC-600VDC
  • Nominal DC Input Voltage: 360VDC
  • Full Power MPPT Voltage Range: 230VDC-500VDC
  • Maximum DC Input Current: 25A / 15A / 15A
  • MPPT Number / Strings per MPPT: 3(2/1/1)

AC Output (Grid)

  • Nominal Power: 12 000W
  • Nominal AC Voltage: 240VAC
  • Operating Voltage Range: 180VAC-270VAC
  • Maximum Continuous AC Current: 50A @ 240VAC
  • Nominal AC Frequency: 50Hz / 60Hz

UPS Output (With Battery)

  • UPS Max Output Power: 12 000W
  • UPS Nominal Output Voltage: 240VAC
  • UPS Nominal Output Frequency: 50Hz / 60Hz
  • UPS Nominal Output Current: 50A @ 240VAC
  • Peak Power: 14Kw 10Min / 16Kw 5 Min / 20Kw 500ms
  • Switching Time: <20ms

Environment Limit

  • Ingress Protection: IP65
  • Operating Temperature Range: -25°C to +60°C
  • Cooling: Fan
  • Communication: RS485 / WIFI / CAN

Monocrystalline Solar Panel | 460W

JA SOLAR PANEL

The JA Solar 460W Monocrystalline Solar Panel is a high-quality and high-performance solar panel designed to deliver exceptional power output and efficiency. With its advanced monocrystalline technology, this panel maximises energy conversion, ensuring optimal performance even in low-light conditions.

Impressive Power Output

With a power rating of 460 Watts, this solar panel offers excellent power generation capabilities, allowing you to maximise your solar energy production and reduce your reliance on traditional energy sources.

Enhanced Efficiency

The monocrystalline design of the panel ensures high efficiency, capturing more sunlight and converting it into usable energy. This results in greater energy production and improved overall system performance.

Durable and Weather-Resistant

Built with high-quality materials, the JA Solar 460W Monocrystalline Solar Panel is designed to withstand various weather conditions, including heavy rain, snow, and strong winds. Its durable construction ensures long-term reliability and performance.

Versatile Applications

Whether you’re installing a residential or commercial solar system, this panel is suitable for a wide range of applications. Its versatility allows for seamless integration into various rooftop or ground-mounted installations.

Eco-Friendly and Sustainable

By harnessing solar energy, you contribute to a cleaner and more sustainable future. The JA Solar 460W Monocrystalline Solar Panel enables you to reduce your carbon footprint and lower your reliance on fossil fuels.

Rigorous Quality Control

JA Solar is renowned for its strict quality control measures, ensuring that each solar panel meets the highest industry standards. You can trust in the reliability and longevity of the JA Solar brand.

Easy Installation

The panel features a user-friendly design, making installation quick and hassle-free. Compatible with various mounting systems, it allows for flexible and convenient installation options.

PRODUCT SPECIFICATIONS

Weight 317.10 kg
Dimensions 61 × 52 × 72 cm
Brand LiFeTIDE, JA Solar, Luxpower
Product Type Solar System
System Phase Single Phase
System Type Hybrid
kW Size 12kW
Battery Storage Capacity 5120Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units 10 Inverters, 16 Batteries
Maximum PV Array Power 16000W/inverter
Panel Watts 460W/panel
Panel Cell Type Monocrystalline
Panel Efficiency 20.7%
Mounting Battery Cabinet, Roof Mounting, Wall Mount
Voltage 48V
Warranty Manufacturer Warranty Per Item
