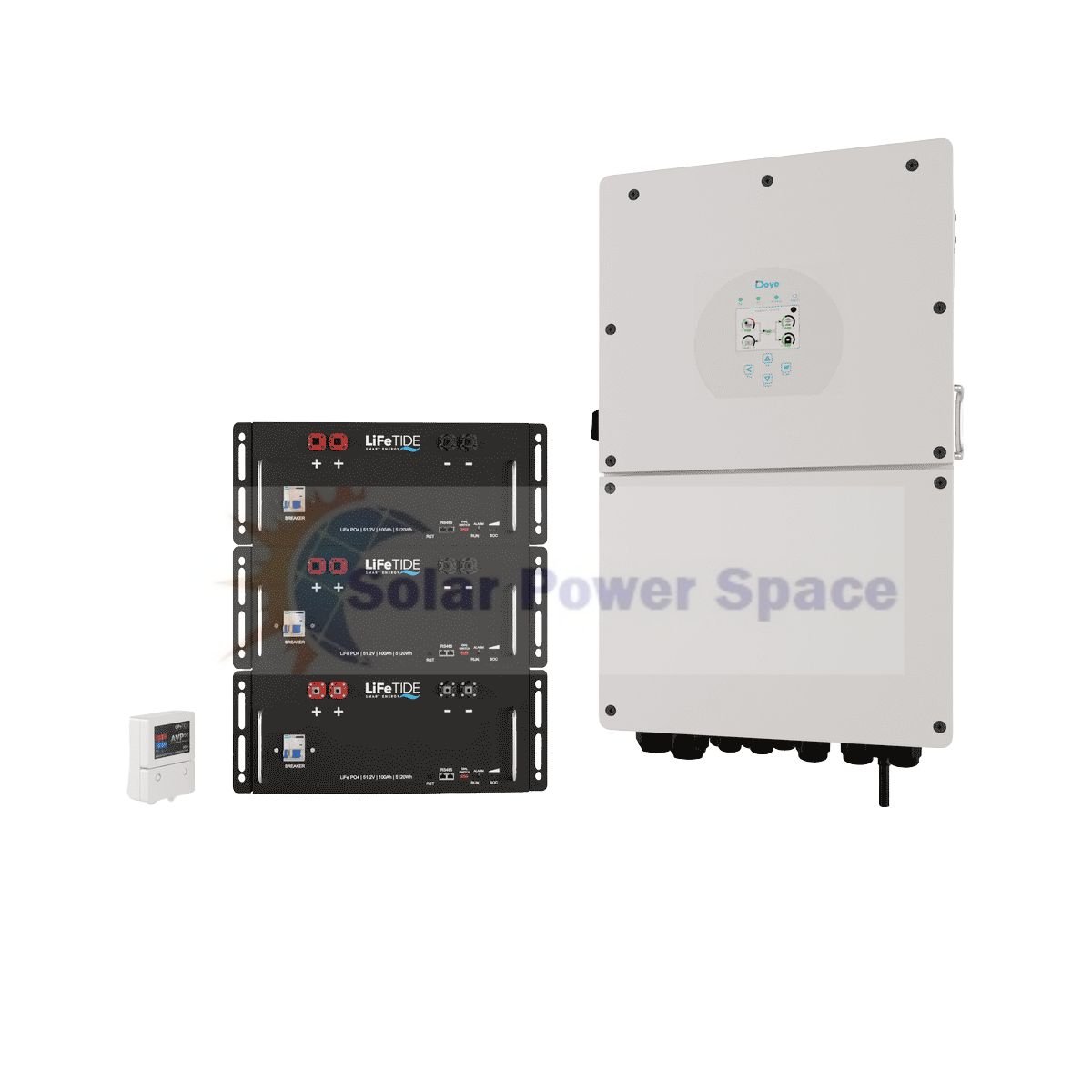

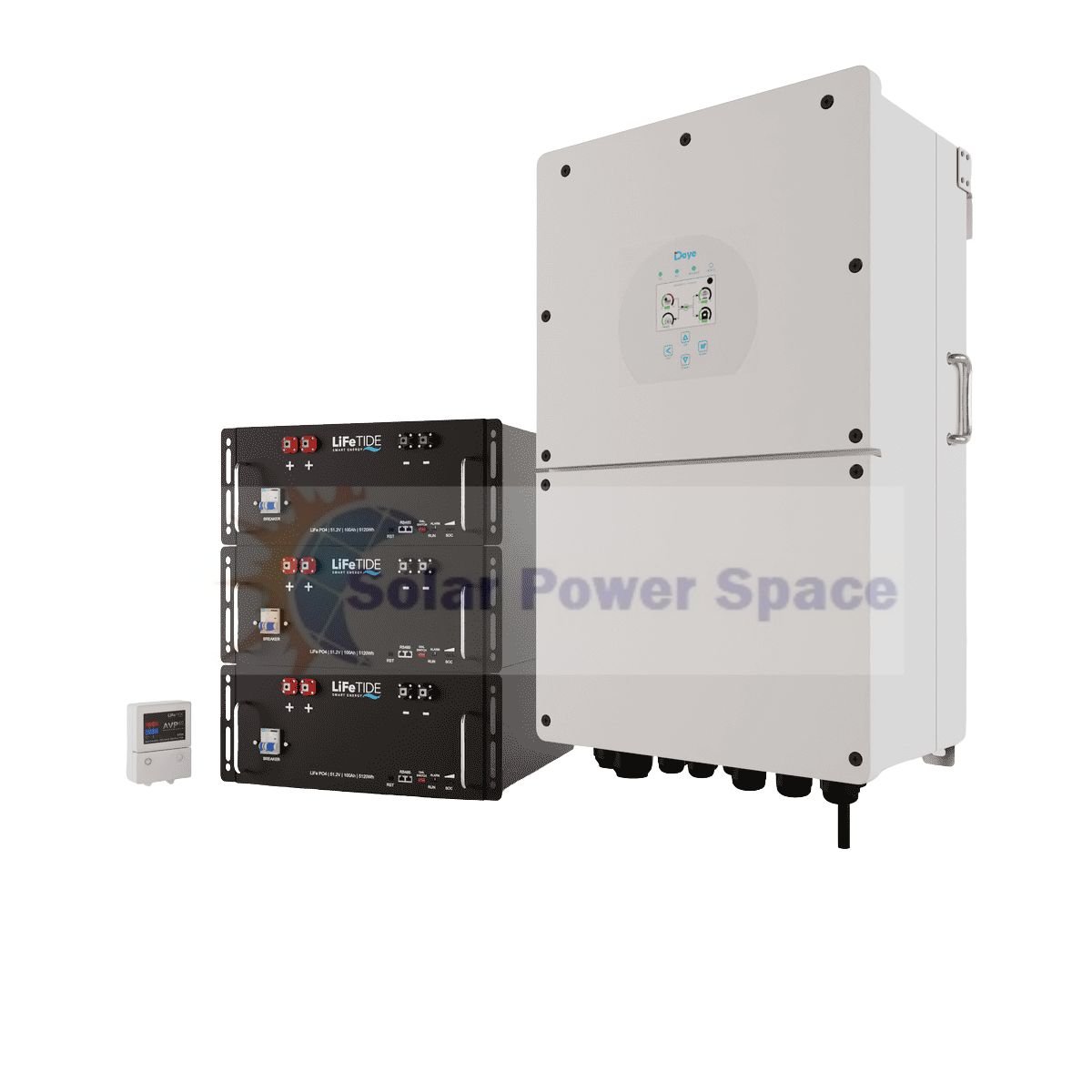

16kW Deye Load Shedding Kit | 3x 5120wh Batteries

R100 999,00
Price incl. VAT

16kW Deye Load Shedding Kit | 3x 5120wh Batteries

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: Deye 16kw Hybrid Solar Inverter
BATTERIES: 3x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , ,
Brands: ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

Deye Hybrid | 16kW | 48V

THE INVERTER

The Deye 16kW Hybrid Inverter is a cutting-edge solution designed to provide solar energy for residential and commercial buildings. With its versatile capabilities, this hybrid inverter offers both on-grid and off-grid power options, ensuring uninterrupted electricity supply even during grid outages. It supports up to 16 units in parallel for efficient operation and features an advanced MPPT tracking algorithm, making it suitable for large-scale PV power plants or residential rooftop systems. Additionally, the Deye Hybrid Inverter supports multiple battery parallel connections and boasts a maximum charging and discharging current of 290A. Whether you’re looking to upgrade an existing PV power plant or seeking a replacement for your current inverter, the Deye 16kW Hybrid Inverter is a reliable and powerful choice that allows you to harness the maximum potential of your solar power.

Technical Data.

  • Model: SUN-16K-SG01LP1-EU
  • Battery Type: Lead-acid or Li-lon.
  • Battery Voltage Range: 40-60V.
  • Max. Charging Current: 290A.
  • Max. Discharging Current: 290A.
  • UPS Power: 16000W.
  • External Temperature Sensor: Yes.
  • Charging Curve: 3 Stages / Equalization.
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS.

AC Output Data

  • Rated AC Output Power: 16000W
  • AC Output Rated Current: 69.6A
  • Maximum Continuous AC Passthrough: 100A
  • Peak Power (Off Grid): 2 time of rated Power, 5 S
  • Power Factor: 0.8 Leading to 0.8 Lagging
  • Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230VAC (Single Phase)
  • Grid Type: Single Phase

PV String Input Data.

  • Max. DC Input Power: 20800W.
  • Max. DC Input Voltage: 500V.
  • Start-up Voltage: 50V.
  • MPPT Range: 150-425V.
  • Rated DC Input Voltage: 370V.
  • PV Input Current: 26A+26A+26A.
  • Max. PV ISC: 44A+44A+44A.
  • Number of MPPT / Strings per MPPT: 3/2.

General Data.

  • Operating Temperature Range: -45~60º C, >45º C derating.
  • Cooling: Smart cooling.
  • Noise: <30 dB.
  • Communication with BMS: RS485; CAN.
  • Weight: 51.5kg.
  • Size: 464W×798.4H×300Dmm.
  • Protection Degree: IP65.
  • Installation Style: Wall-mounted.
  • Warranty: 5 years.
  • Max. Number of Parallel (PCS): 16.

Environment Limit

  • Operating Temperature Range: -45°C to 60°C
    • Cooling: Smart Cooling (<30 dB)
  • Communication: RS485 / CAN
  • Ingress Protection: IP65
  • Safety Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Efficiency.

  • Max. Efficiency: 97.60%.
  • Euro Efficiency: 96.50%.
  • MPPT Efficiency: 99.90%.
Essential & Non-Essential Loads
  • Separate and prioritize your heavy appliances, saving battery backup for essential loads.
Completely Autonomous
  • The Autonomous Hybrid Solar Inverter effortlessly keeps the lights on and your bills to zero. Smart technology ensures the inverter knows what to do and when to do it.
Robust & Reliable
  • The Fusion inverter boasts a great design and exceptional quality, making it a preferred choice. Stable and robust performance when configured correctly.
Compatibility
  • Compatible with most AGM and Lithium-ion batteries on the market, ensuring flexibility. Years of development guarantee stability and robustness when configured correctly.
Blending AC & DC
  • True Hybrid inverter that efficiently blends DC (panels & batteries) with the AC grid power.
Phone App
  • Monitor your consumption remotely with the Solar System monitoring iPhone or Android app.
LCD Screen
  • Change settings and monitor the inverter’s performance with the convenient LCD display.
5-Year Warranty
  • Enjoy peace of mind with a standard 5-year warranty, ensuring reliable performance.

PRODUCT SPECIFICATIONS

Weight 201.1 kg
Dimensions 61 × 52 × 72 cm
Brand LiFeTIDE, Deye
Product Type Load Shedding Kit
System Phase Single Phase
System Type Hybrid
kW Size 16kW
Battery Storage Capacity 5120Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units 16 Batteries, 16 Inverters
Maximum PV Array Power 20800W/inverter
Mounting Battery Cabinet, Wall Mount
Voltage 48V
Warranty Manufacturer Warranty Per Item
