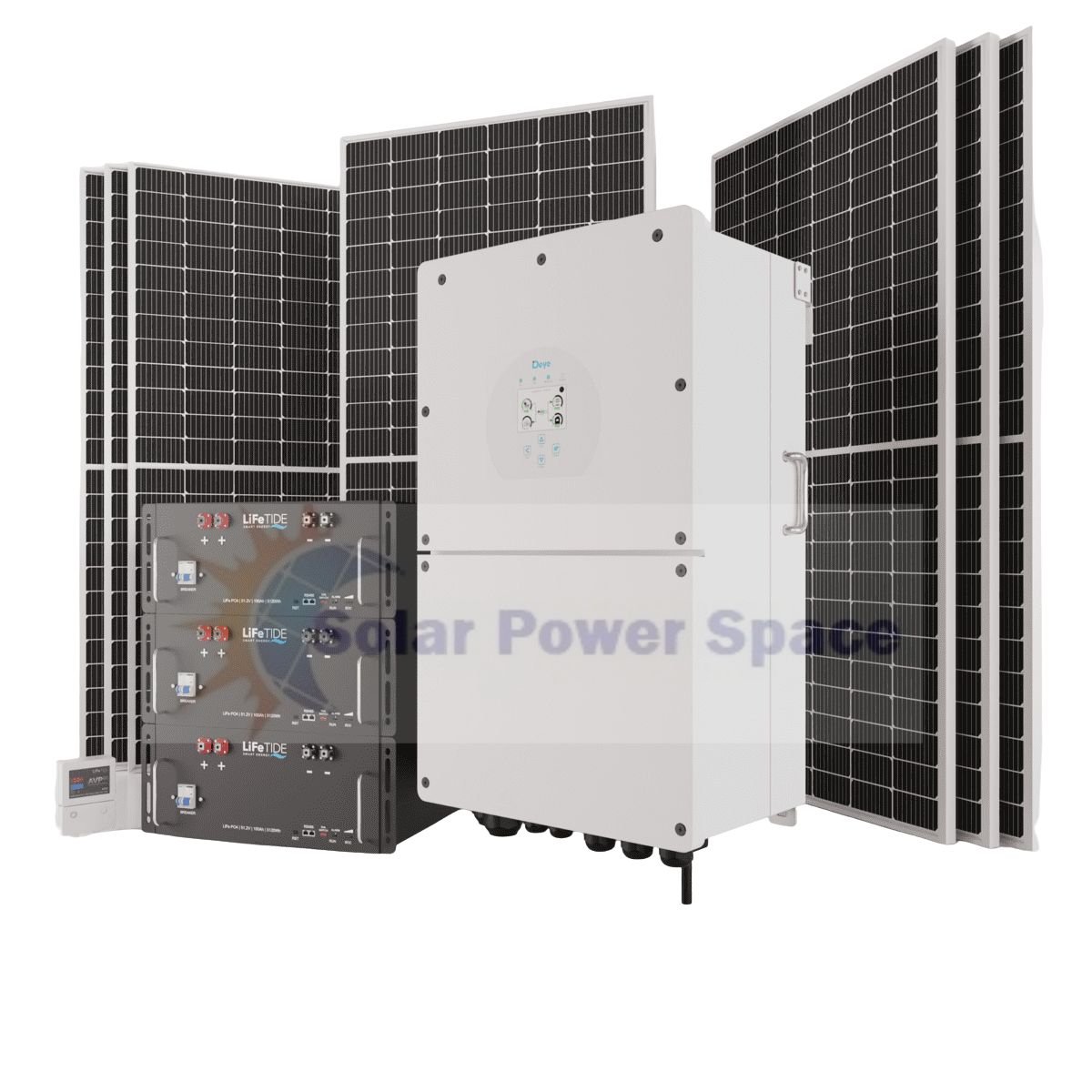

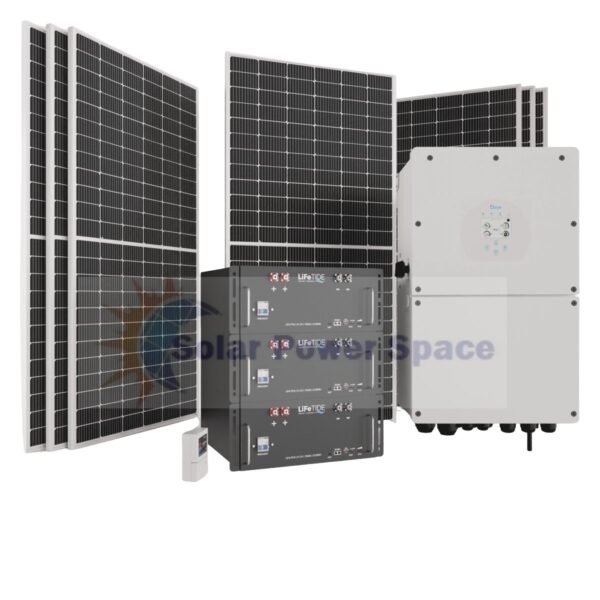

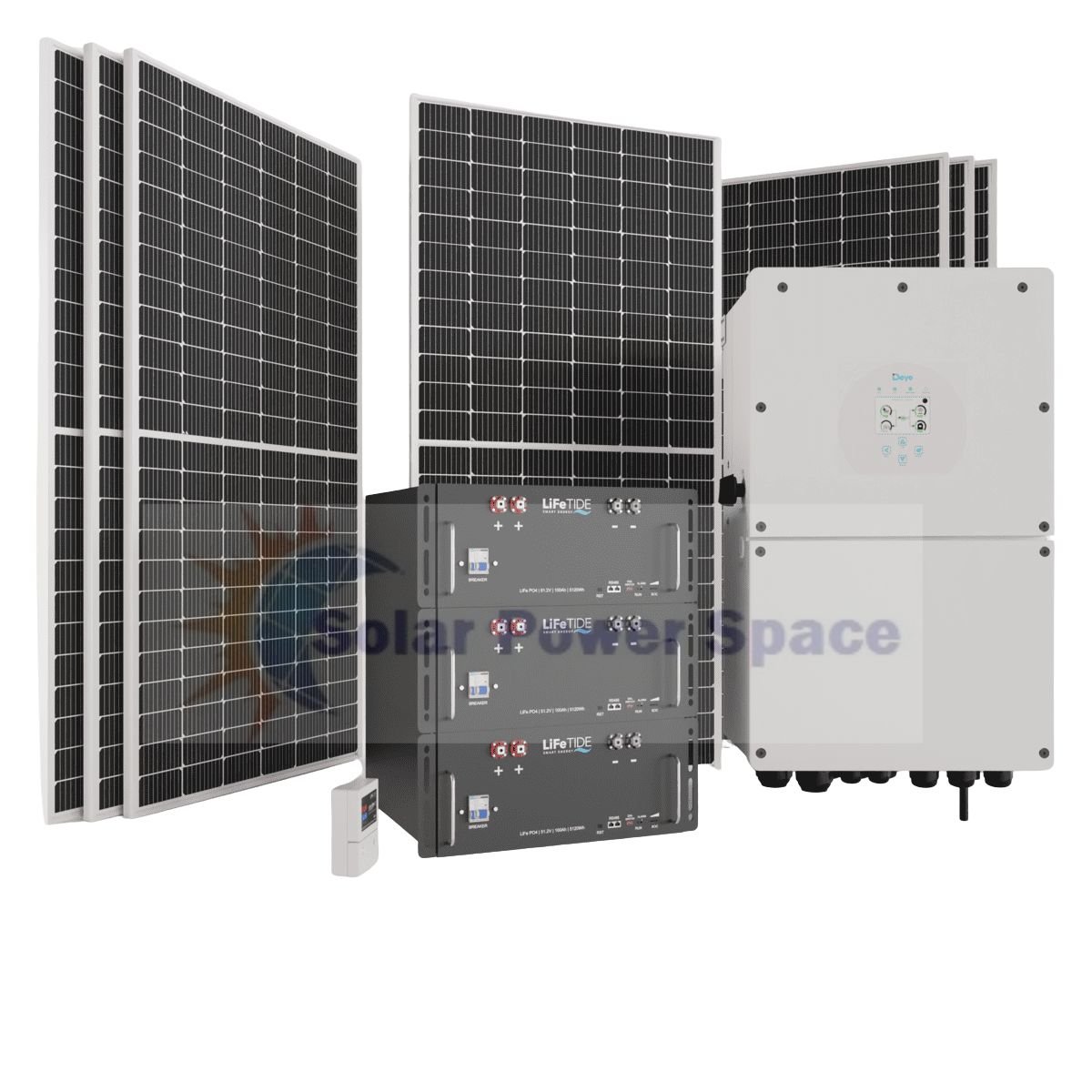

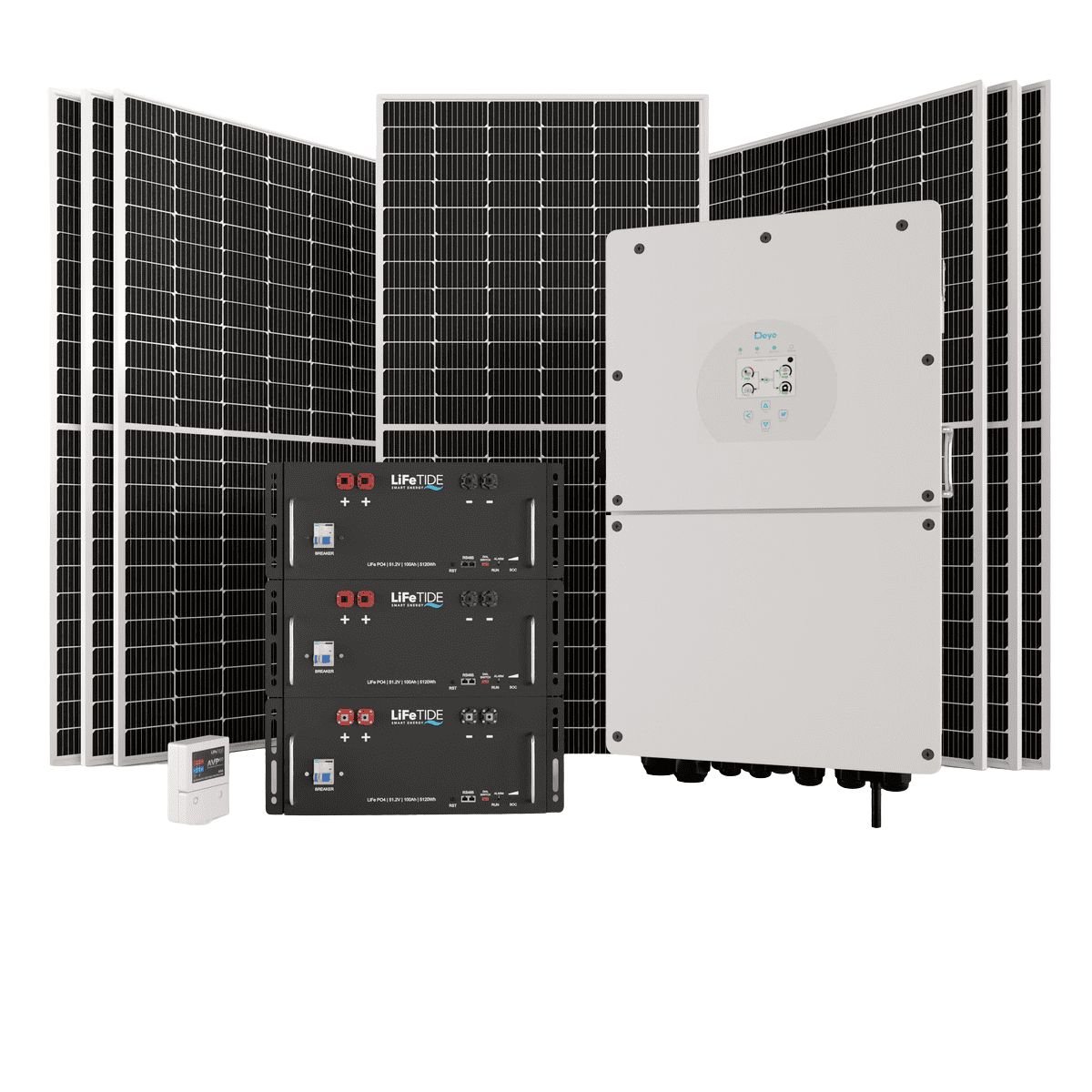

16kW Deye Solar System | 3x 5120Wh Batteries | 5x 460W/465W Solar Panels

R106 649,00
Price incl. VAT

16kW Deye Solar System | 3x 5120Wh Batteries | 5x 460W/465W Solar Panels

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: Deye Hybrid Inverter | 16Kw | 48V
BATTERIES: 3x LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
PANELS: 5x 460W/465W Solar PanelS (JA Solar, Jinko or similar)
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , , , , , ,
Brands: , ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:
  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

Deye Hybrid | 16kW | 48V

THE INVERTER

The Deye 16kW Hybrid Inverter is a cutting-edge solution designed to provide solar energy for residential and commercial buildings. With its versatile capabilities, this hybrid inverter offers both on-grid and off-grid power options, ensuring uninterrupted electricity supply even during grid outages. It supports up to 16 units in parallel for efficient operation and features an advanced MPPT tracking algorithm, making it suitable for large-scale PV power plants or residential rooftop systems. Additionally, the Deye Hybrid Inverter supports multiple battery parallel connections and boasts a maximum charging and discharging current of 290A. Whether you’re looking to upgrade an existing PV power plant or seeking a replacement for your current inverter, the Deye 16kW Hybrid Inverter is a reliable and powerful choice that allows you to harness the maximum potential of your solar power.

Technical Data.

  • Model: SUN-16K-SG01LP1-EU
  • Battery Type: Lead-acid or Li-lon.
  • Battery Voltage Range: 40-60V.
  • Max. Charging Current: 290A.
  • Max. Discharging Current: 290A.
  • UPS Power: 16000W.
  • External Temperature Sensor: Yes.
  • Charging Curve: 3 Stages / Equalization.
  • Charging Strategy for Li-Ion Battery: Self-adaption to BMS.

AC Output Data

  • Rated AC Output Power: 16000W
  • AC Output Rated Current: 69.6A
  • Maximum Continuous AC Passthrough: 100A
  • Peak Power (Off Grid): 2 time of rated Power, 5 S
  • Power Factor: 0.8 Leading to 0.8 Lagging
  • Output Frequency and Voltage: 50/60Hz; L/N/PE 220/230VAC (Single Phase)
  • Grid Type: Single Phase

PV String Input Data.

  • Max. DC Input Power: 20800W.
  • Max. DC Input Voltage: 500V.
  • Start-up Voltage: 50V.
  • MPPT Range: 150-425V.
  • Rated DC Input Voltage: 370V.
  • PV Input Current: 26A+26A+26A.
  • Max. PV ISC: 44A+44A+44A.
  • Number of MPPT / Strings per MPPT: 3/2.

General Data.

  • Operating Temperature Range: -45~60º C, >45º C derating.
  • Cooling: Smart cooling.
  • Noise: <30 dB.
  • Communication with BMS: RS485; CAN.
  • Weight: 51.5kg.
  • Size: 464W×798.4H×300Dmm.
  • Protection Degree: IP65.
  • Installation Style: Wall-mounted.
  • Warranty: 5 years.
  • Max. Number of Parallel (PCS): 16.

Environment Limit

  • Operating Temperature Range: -45°C to 60°C
    • Cooling: Smart Cooling (<30 dB)
  • Communication: RS485 / CAN
  • Ingress Protection: IP65
  • Safety Certification: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2

Efficiency.

  • Max. Efficiency: 97.60%.
  • Euro Efficiency: 96.50%.
  • MPPT Efficiency: 99.90%.

Monocrystalline Solar Panel | 460W

JA SOLAR PANEL

The JA Solar 460W Monocrystalline Solar Panel is a high-quality and high-performance solar panel designed to deliver exceptional power output and efficiency. With its advanced monocrystalline technology, this panel maximises energy conversion, ensuring optimal performance even in low-light conditions.

Impressive Power Output

With a power rating of 460 Watts, this solar panel offers excellent power generation capabilities, allowing you to maximise your solar energy production and reduce your reliance on traditional energy sources.

Enhanced Efficiency

The monocrystalline design of the panel ensures high efficiency, capturing more sunlight and converting it into usable energy. This results in greater energy production and improved overall system performance.

Durable and Weather-Resistant

Built with high-quality materials, the JA Solar 460W Monocrystalline Solar Panel is designed to withstand various weather conditions, including heavy rain, snow, and strong winds. Its durable construction ensures long-term reliability and performance.

Versatile Applications

Whether you’re installing a residential or commercial solar system, this panel is suitable for a wide range of applications. Its versatility allows for seamless integration into various rooftop or ground-mounted installations.

Eco-Friendly and Sustainable

By harnessing solar energy, you contribute to a cleaner and more sustainable future. The JA Solar 460W Monocrystalline Solar Panel enables you to reduce your carbon footprint and lower your reliance on fossil fuels.

Rigorous Quality Control

JA Solar is renowned for its strict quality control measures, ensuring that each solar panel meets the highest industry standards. You can trust in the reliability and longevity of the JA Solar brand.

Easy Installation

The panel features a user-friendly design, making installation quick and hassle-free. Compatible with various mounting systems, it allows for flexible and convenient installation options.

PRODUCT SPECIFICATIONS

Weight 371.20 kg
Dimensions 61 × 52 × 72 cm
Brand LiFeTIDE, Deye, JA Solar
Product Type Solar System
System Phase Single Phase
System Type Hybrid
kW Size 16kW
Battery Storage Capacity 5120Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units 16 Batteries, 16 Inverters
Maximum PV Array Power 20800W/inverter
Panel Watts 460W/panel
Panel Cell Type Monocrystalline
Panel Efficiency 20.7%
Mounting Battery Cabinet, Roof Mounting, Wall Mount
Voltage 48V
Warranty Manufacturer Warranty Per Item
