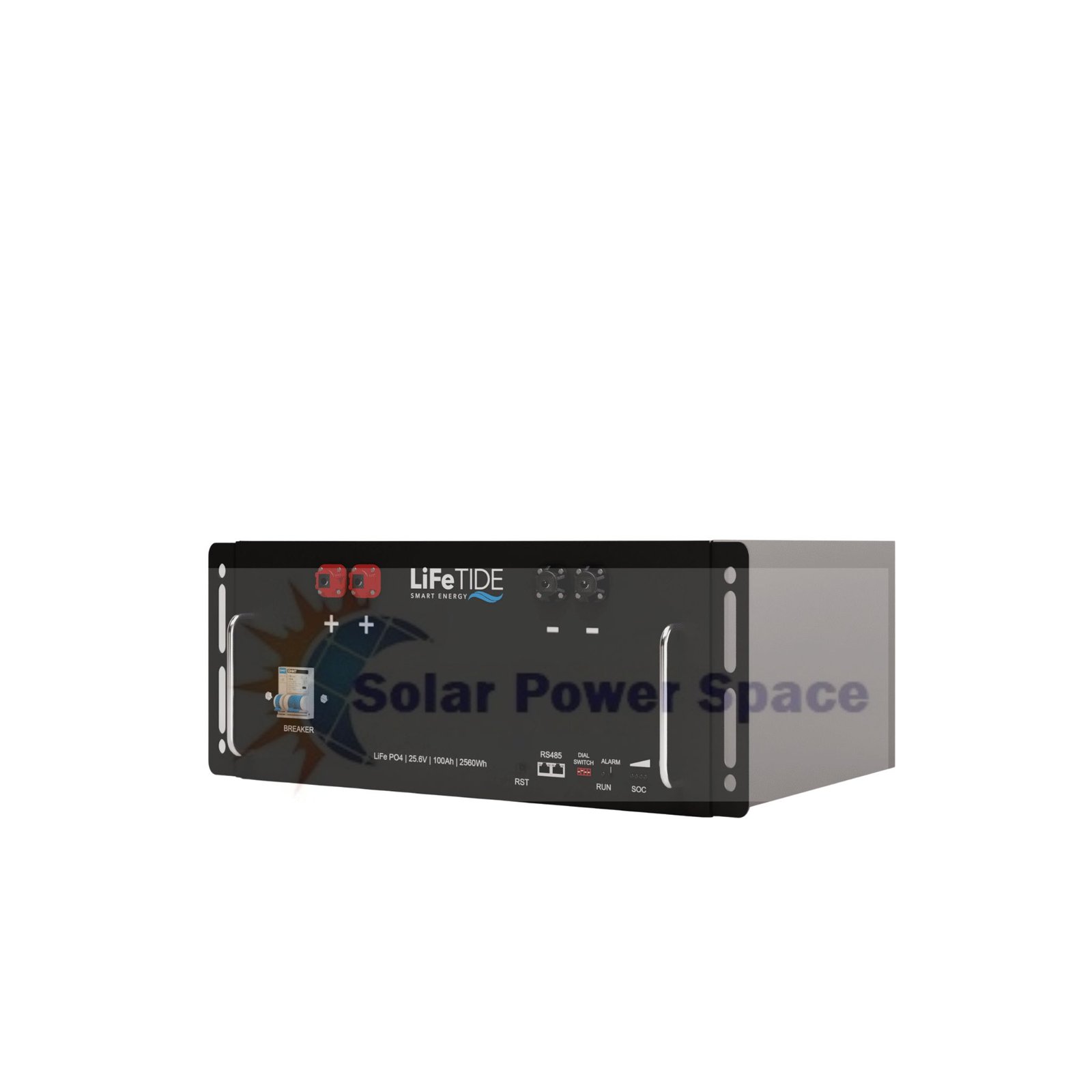

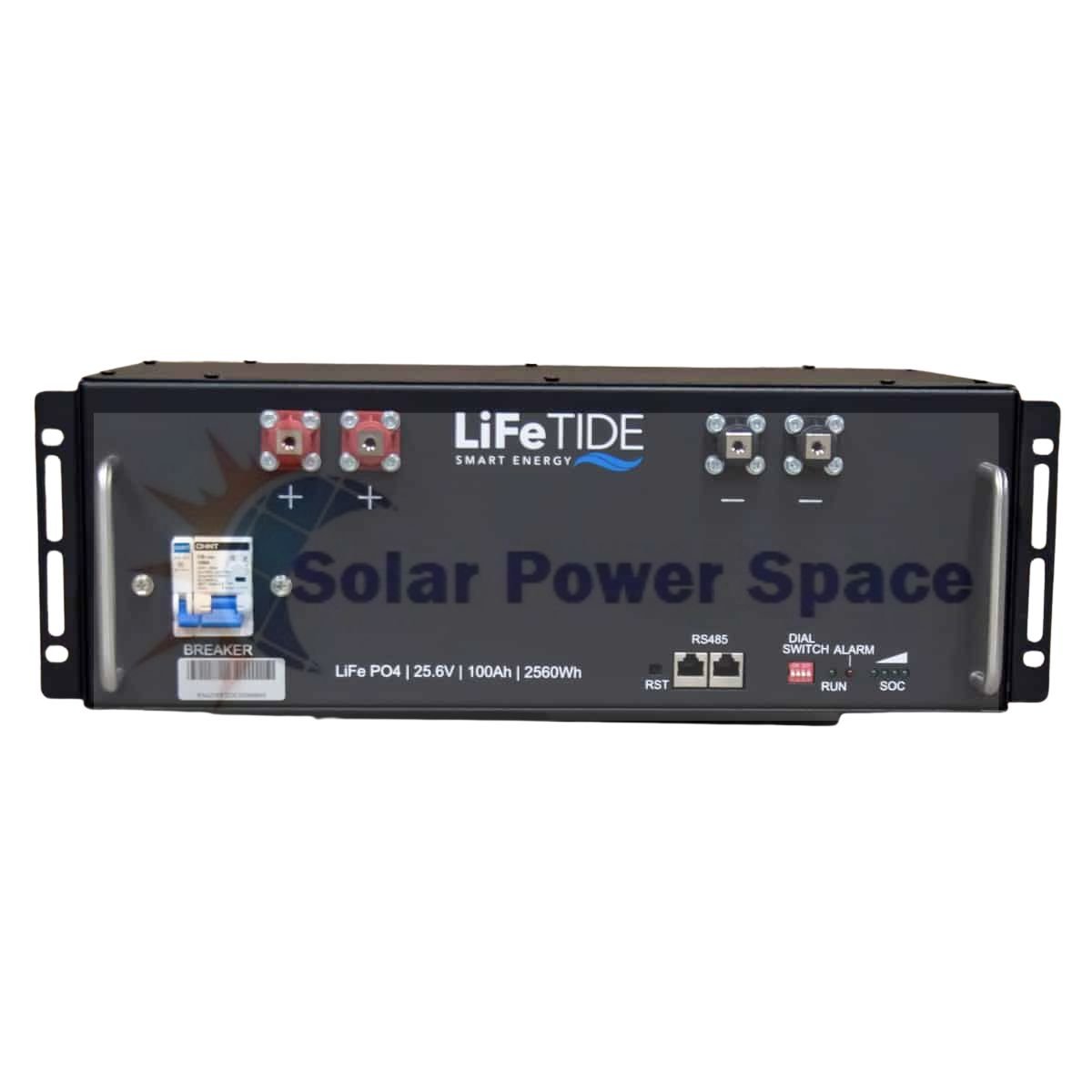

2560Wh LiFePO4 25.6V 100Ah Battery

A compact and powerful energy storage solution. This cutting-edge battery utilizes advanced Lithium Iron Phosphate (LiFePO4) technology, providing reliable and long-lasting performance. With its 2560Wh capacity, this battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Experience the benefits of high energy density, fast charging capabilities, and extended cycle life. The LiFeTIDE 2560Wh LiFePO4 Battery is your trusted companion for efficient and sustainable energy storage needs.

Features:

• Ultra-reliable Lithium Iron Phosphate Technology.
• High Performance  Tier One A+ Cells
• Power output = 2.56kW (continuous).
• Fully rechargeable in 2 hours.

Robust & Durable:

• Can be discharged to 100% DoD.
• 6,000 Cycles @ 80% DoD
• 99% Efficiency

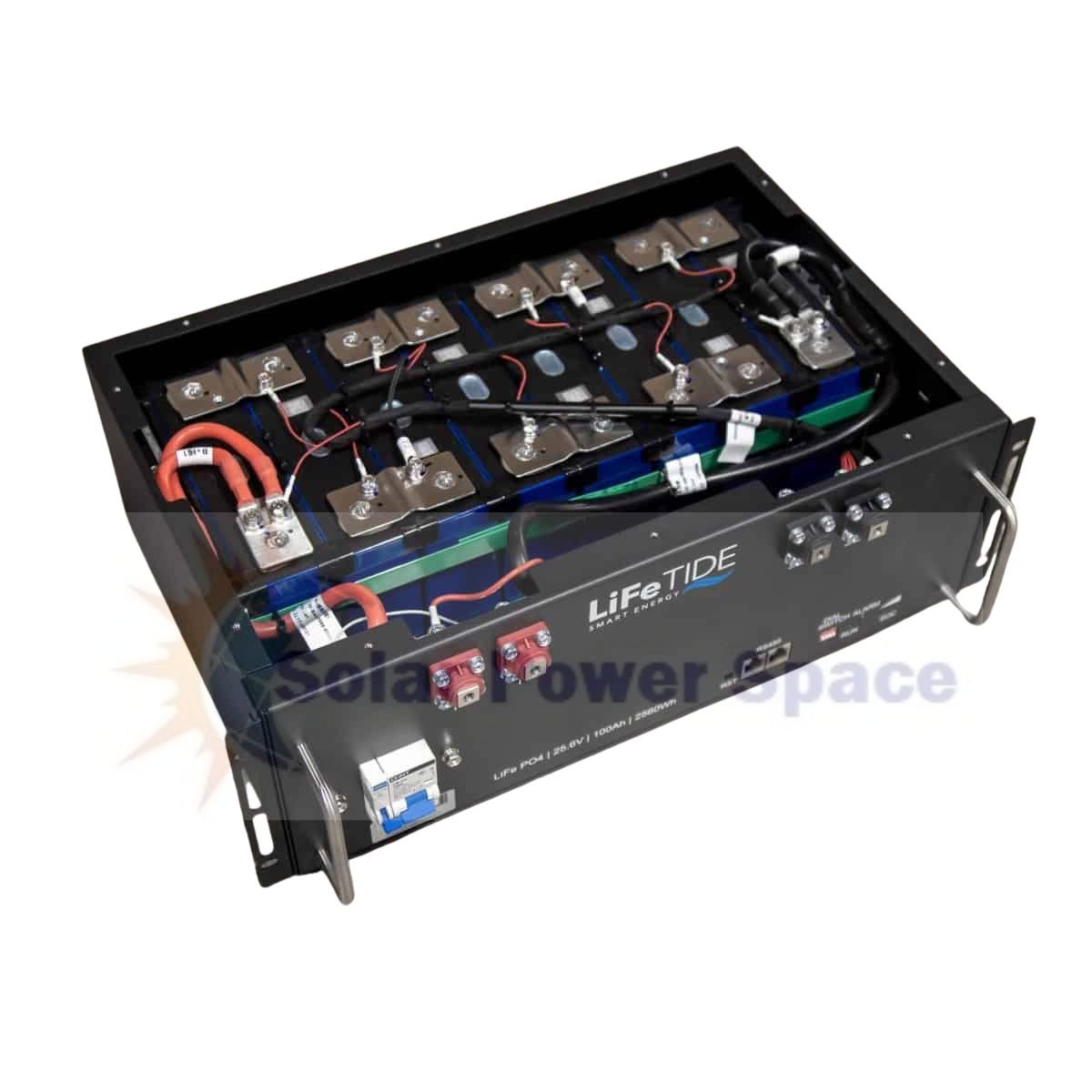

• Laser Welded Cell Connections

Safe & Secure:

• Over-charge, over-discharge & short-circuit protection.
• Temperature, Voltage and Current Monitoring
• Non-combustible & 100% Recyclable.
• Smart Battery Monitoring System
• Environmentally Friendly & Lead-Free
• Built-In Circuit Breaker

General Specification:

• Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
• Nominal Voltage: 25.6V.
• Ah Rating: 100Ah @C1, 25°C.
• Rack Mount or Cabinet Storage
• Maximum Energy Density

Physical Attributes:

• Dimensions – Main enclosure: 442mm x 310mm x 155mm (W x D x H).
• Net Weight: 26.0kg .
• 5 Year Warranty

Voltage

• Voltage: 25.6VDC
• Nominal Capacity: 100Ah
• Watt Hours: 2560Wh
• Charging Voltage (Bulk/Absorb): 28.4V ± 0.2V
• Float: 27V ± 0.2V
• Low DC Cutoff: 23.5V-22V depending on load
• Charing Current: 100A (30A – 50A recommended)
• Discharging Current: 100A
