3kW Growatt Load Shedding Kit | 2560Wh LiFePO4 Battery

R16 799,00
Price incl. VAT

3kW Growatt Load Shedding Kit | 2560Wh LiFePO4 Battery

Need help choosing the right Solar equipment? Call us today!

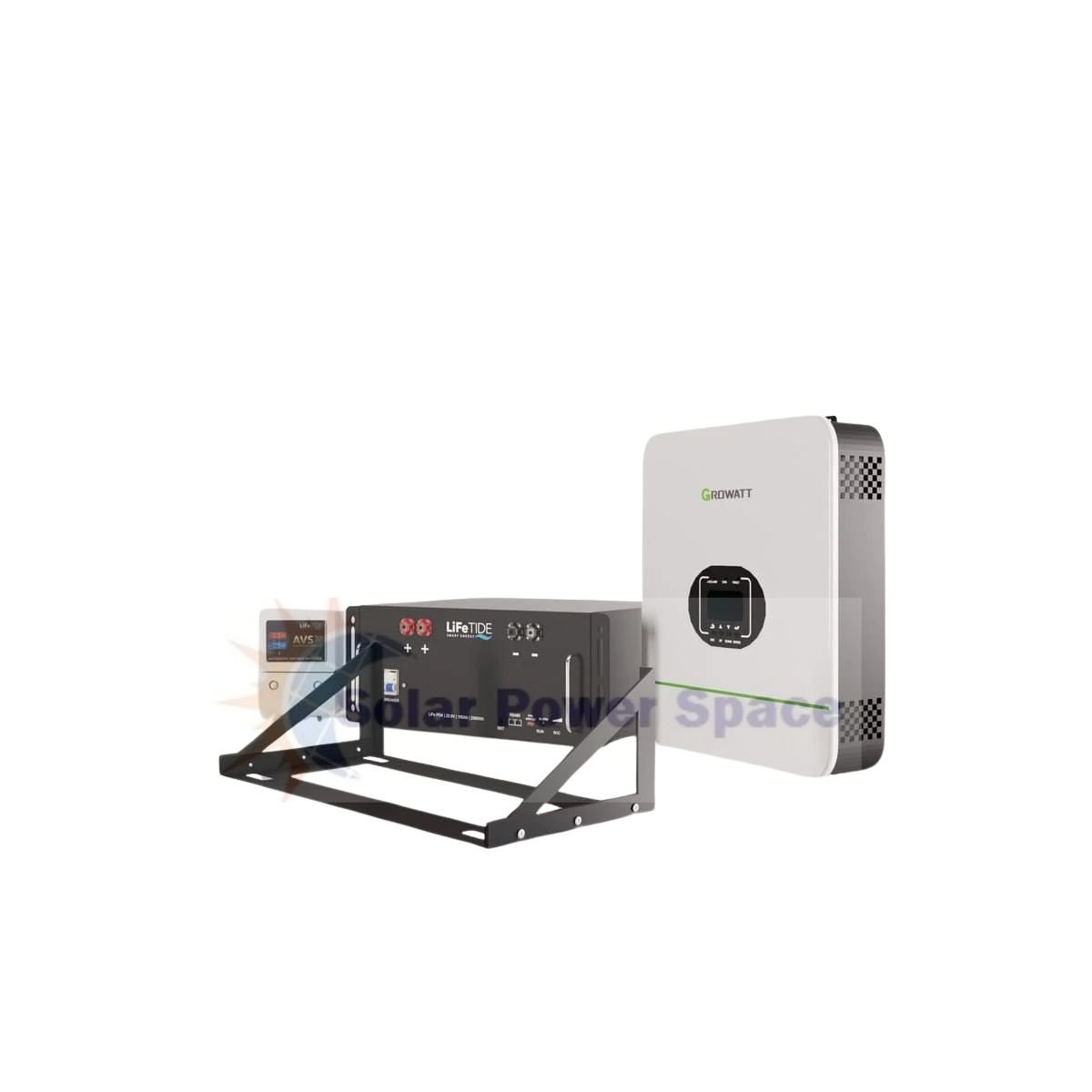

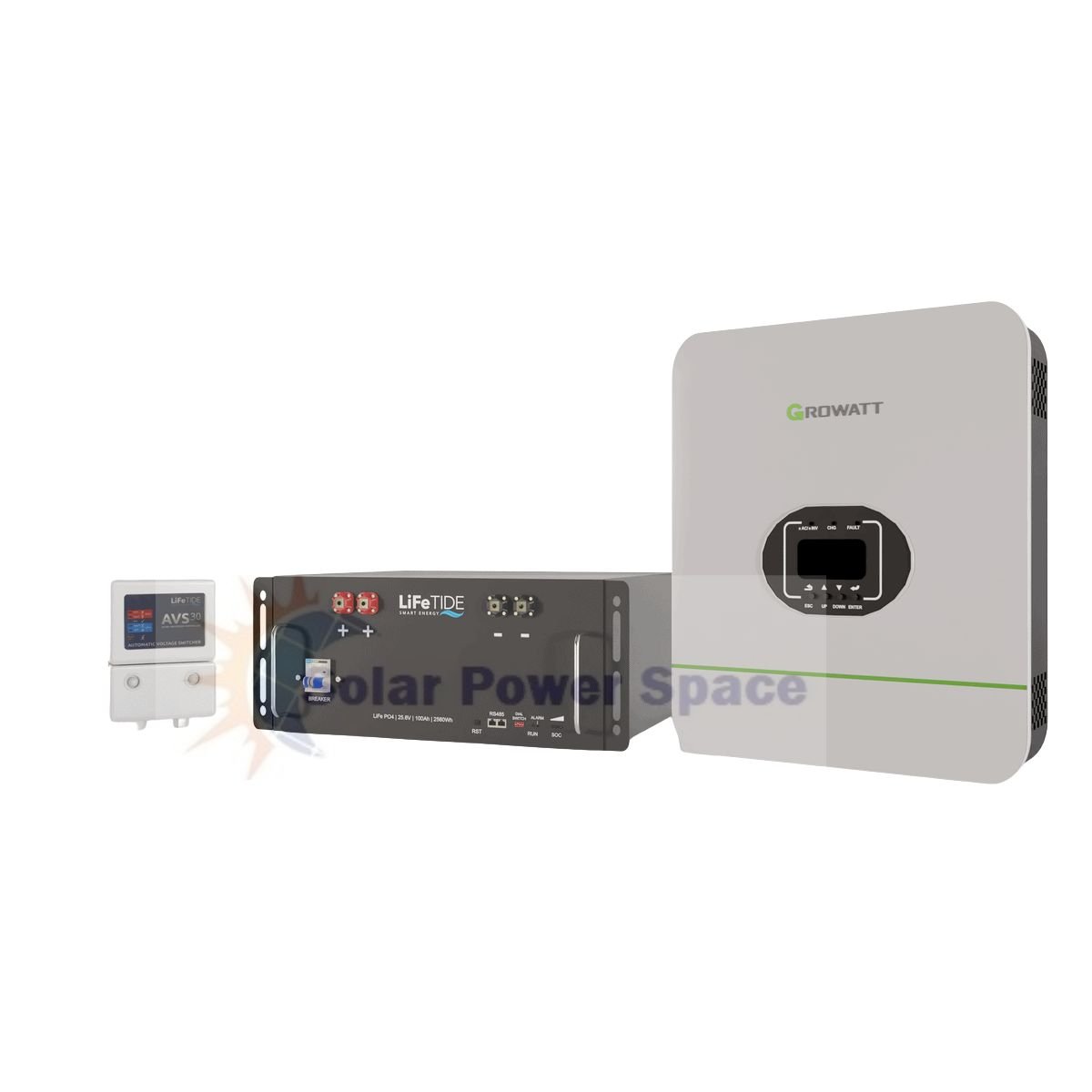

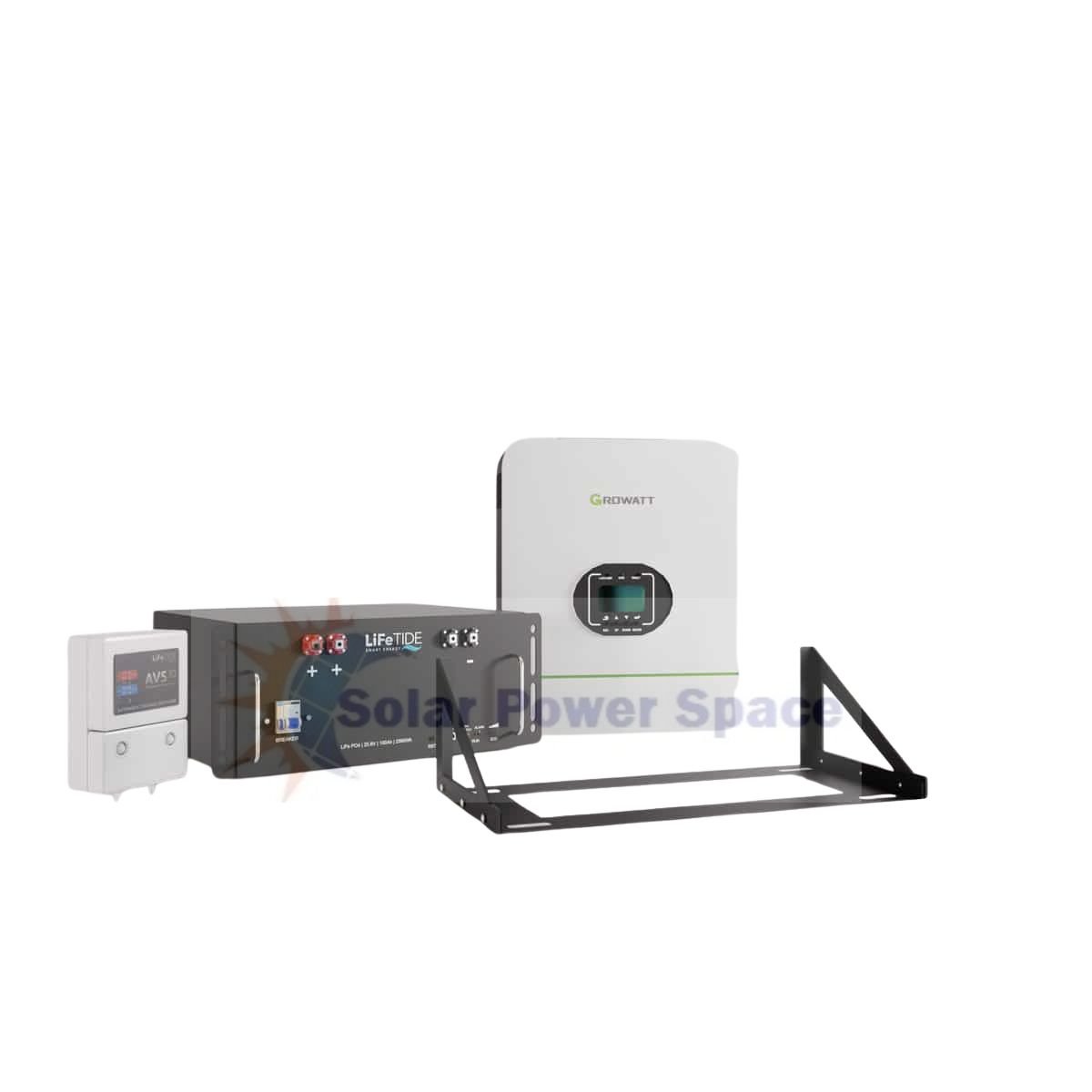

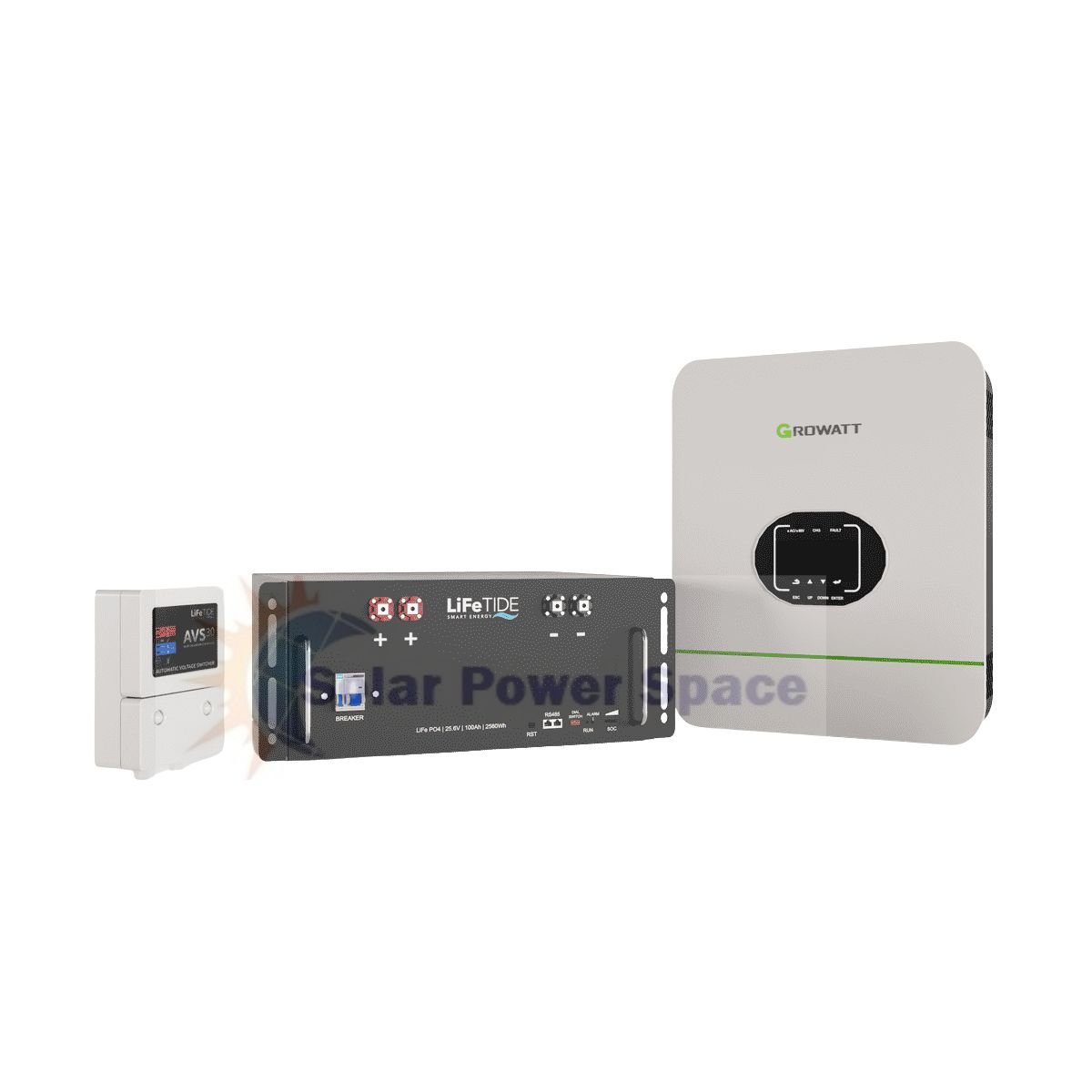

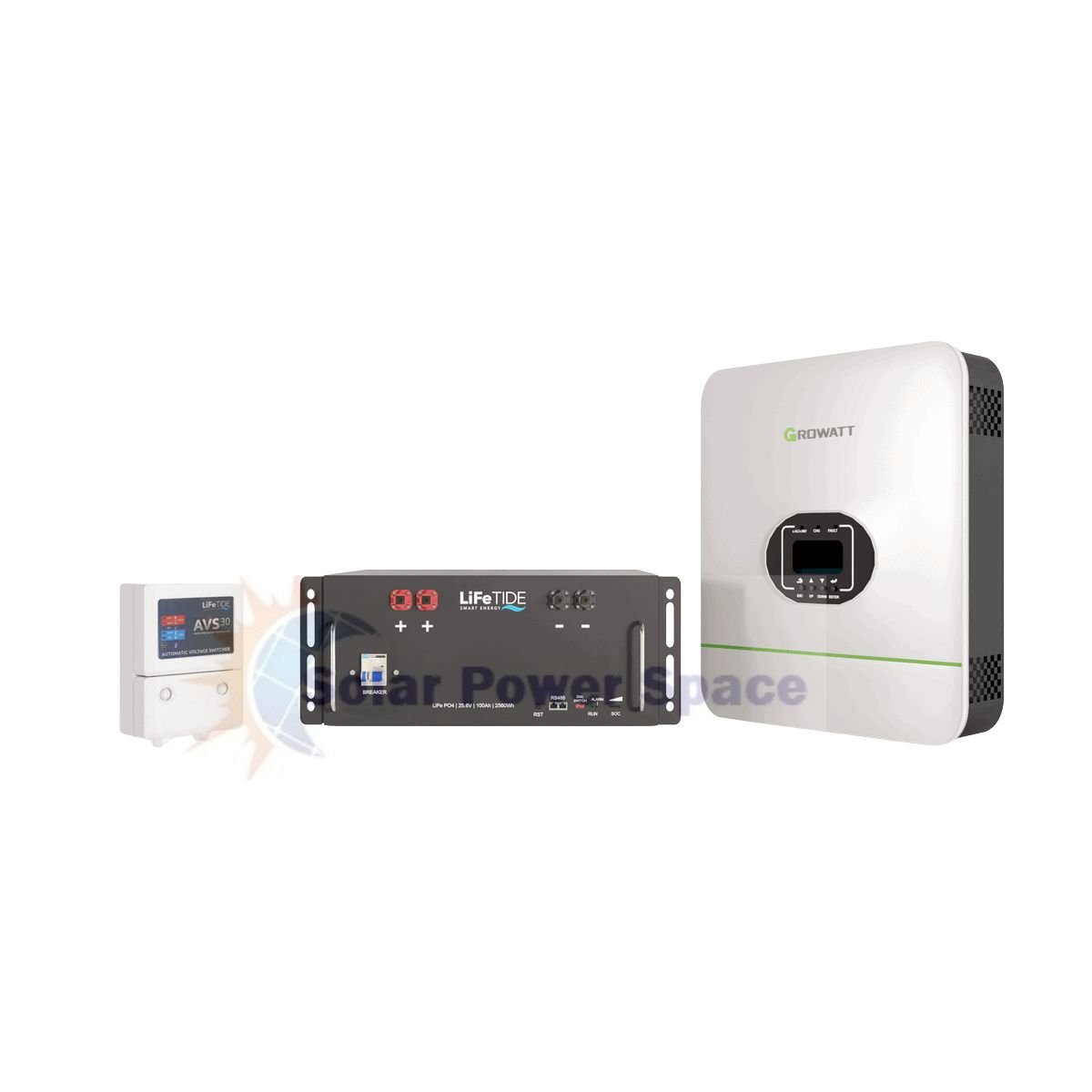

Everything you need when the power goes out:

INVERTER: Growatt SPF 3000TL HVM-24 | 3Kw | 24V
BATTERY: LiFeTIDE LiFePO4 | 25.6V | 100Ah | 2560Wh
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , ,
Brands: ,

Description

LiFePO4 | 25.6V | 100Ah | 2560Wh

LiFeTIDE BATTERY

A compact and powerful energy storage solution. This cutting-edge battery utilizes advanced Lithium Iron Phosphate (LiFePO4) technology, providing reliable and long-lasting performance. With its 2560Wh capacity, this battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Experience the benefits of high energy density, fast charging capabilities, and extended cycle life. The LiFeTIDE 2560Wh LiFePO4 Battery is your trusted companion for efficient and sustainable energy storage needs.

Features:

  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 2.56kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 25.6V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 310mm x 155mm (W x D x H).
  • Net Weight: 26.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 25.6VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 2560Wh
  • Charging Voltage (Bulk/Absorb): 28.4V ± 0.2V
  • Float: 27V ± 0.2V
  • Low DC Cutoff: 23.5V-22V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A
Growatt SPF 3000TL HVM-24 | 3KW | 24V

THE INVERTER

A compact and efficient solution for your solar power system. With its 3KW power rating and 24V input voltage, this inverter is designed to deliver reliable performance for residential and small-scale commercial applications. The SPF 3000TL HVM-24 features advanced High Voltage Modular (HVM) technology, ensuring enhanced efficiency and optimal power conversion. Benefit from its user-friendly interface, allowing for easy operation and monitoring. Trust in the Growatt SPF 3000TL HVM-24 Inverter to maximize your solar energy utilization and power your sustainable energy journey.

General

  • Model: SPF 3000TL HVM-24
  • Battery voltage: 24VDC

Inverter Output

  • Waveform: Pure Sine-Wave
  • Rated Power: 3000VA/3000W
  • Parallel Capability: No
  • AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
  • Surge Power: 6000VA
  • Efficiency (Peak): 93%
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)

Solar Charger

  • Maximum PV Array Power: 1000W
  • MPPT Range @ Operating Voltage: 30VDC ~80VDC
  • Standby Power Consumption: 2W
  • Maximum PV Array Open Circuit Voltage: 100VDC
  • Maximum Efficiency: 97%
  • Maximum Solar Charge Current: 50A

AC Charger

  • Charge Current: 30A
  • AC Input Voltage: 230 VAC
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
  • Frequency Range: 50Hz/60Hz (Auto sensing)

Physical

  • Dimensions: 530mm x 400mm x 210mm
  • Weight: 11 kg

PRODUCT SPECIFICATIONS

Weight 37.60 kg
Dimensions 60 × 51 × 72 cm
Brand Growatt, LiFeTIDE
Product Type Load Shedding Kit
System Phase Single Phase
kW Size 3kW
Voltage 24V
Battery Storage Capacity 2560Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units N/A
Maximum PV Array Power 1000W
Mounting Wall Mount
System Type Off-Grid
Warranty Manufacturer Warranty Per Item
