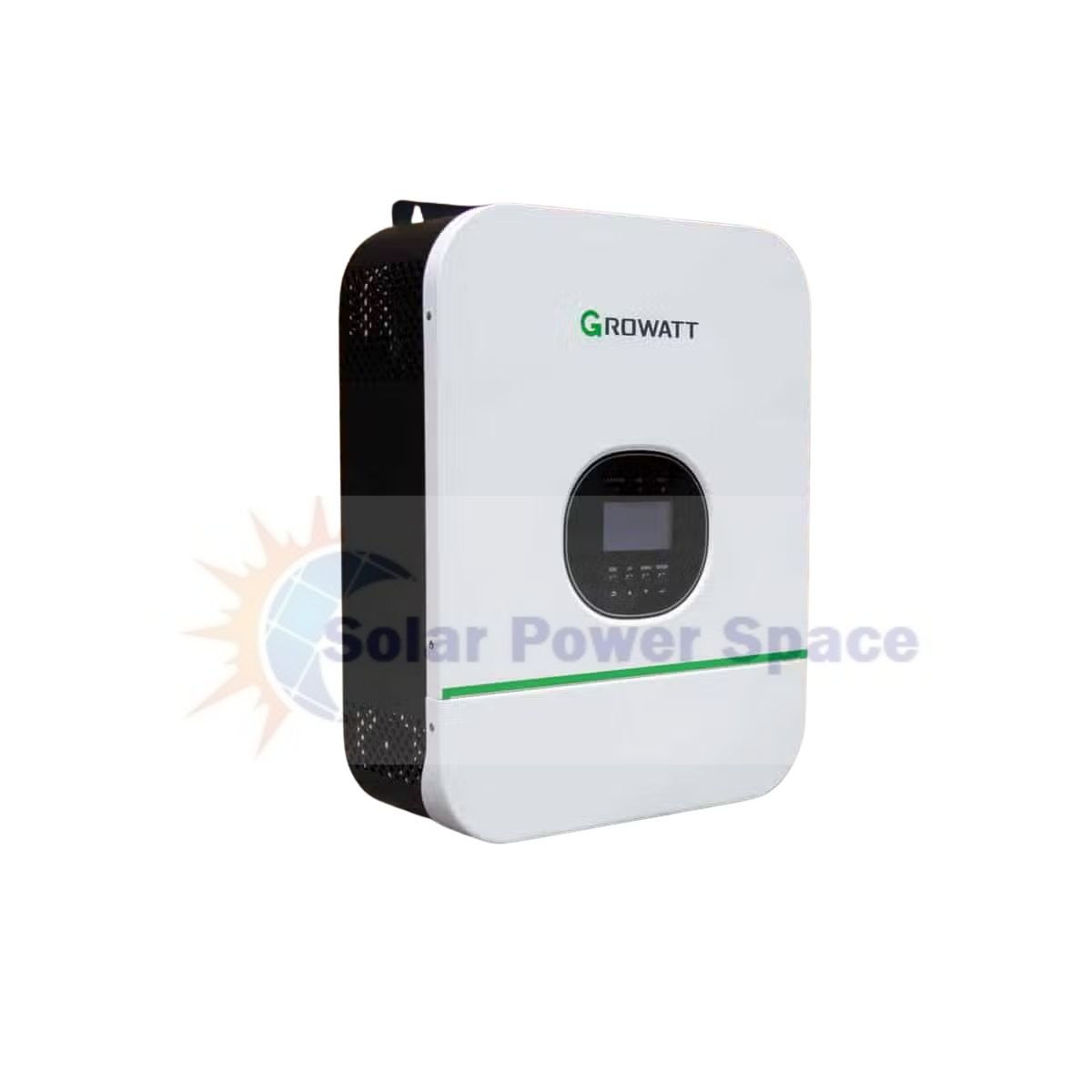

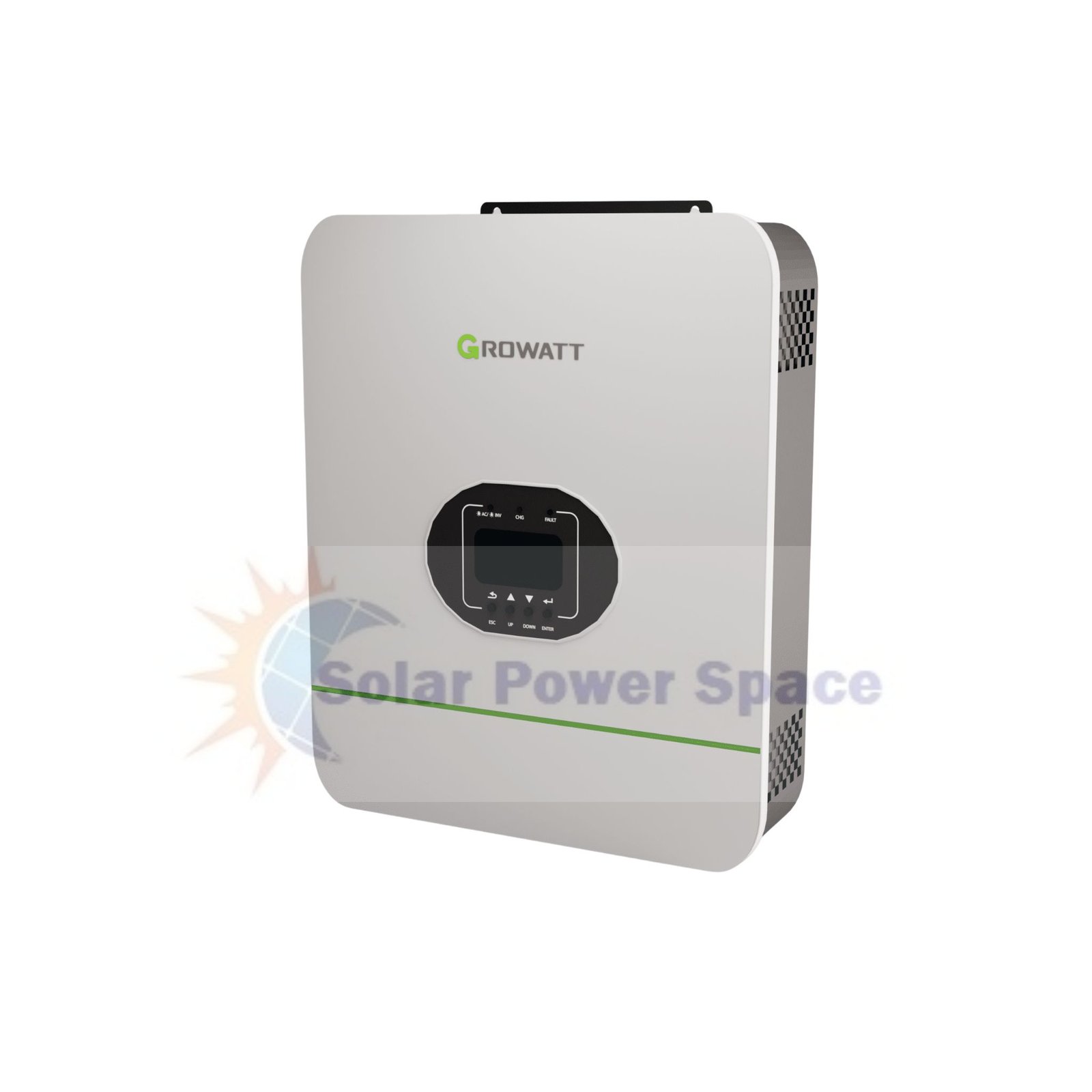

3kW Growatt SPF 3000TL HVM-24 24v Inverter

R5 499,00

Growatt SPF 3000TL HVM-24 | 3KW | 24V

Need help choosing the right Solar equipment?

Multifunctional off grid solar inverter, integrated with a MPPT solar charge controller, a high frequency pure sine wave inverter and a UPS function module all in one machine. Perfect for off grid backup power and self-consumption applications. Transformerless design provides reliable power conversion in a compact size.

  • Rated power 3000W, power factor 1
  • Voltage: 24V
  • MPPT ranges 30VDC ~80VDC
  • High-frequency inverter with small size and lightweight
  • Pure sine wave AC output
  • Solar and utility grid can power loads at the same time
  • With CAN/RS485 for BMS communication
  • WIFI/ GPRS remote monitoring (optional)

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category: Tags: , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , , Brand:

Description

Growatt SPF 3000TL HVM-24 | 3KW | 24V

THE INVERTER

3kW Growatt SPF 3000TL HVM-24 24v Inverter. A compact and efficient solution for your solar power system. With its 3KW power rating and 24V input voltage, this inverter is designed to deliver reliable performance for residential and small-scale commercial applications. The SPF 3000TL HVM-24 features advanced High Voltage Modular (HVM) technology, ensuring enhanced efficiency and optimal power conversion. Benefit from its user-friendly interface, allowing for easy operation and monitoring. Trust in the Growatt SPF 3000TL HVM-24 Inverter to maximize your solar energy utilization and power your sustainable energy journey.

Shop the Growatt SPF 3000TL HVM-24 Inverter 3kW 24V – reliable power for homes and small businesses. Perfect solar inverter for load shedding backup in Johannesburg, Cape Town, Durban, and Pretoria. Delivering pure sine wave output, this Growatt inverter protects your appliances. Ideal for residential solar systems in Sydney, Melbourne, Brisbane, and Adelaide. Experience 93% peak efficiency with Growatt’s HVM technology for optimal power conversion. Perfect solution for off-grid setups in Namibia, Botswana, and Zimbabwe. Compact, lightweight 11kg design for easy wall-mounted installation. Trusted by thousands in Western Cape, Gauteng, and KwaZulu-Natal for reliable energy.

General

  • Model: SPF 3000TL HVM-24
  • Battery voltage: 24VDC

Inverter Output

  • Waveform: Pure Sine-Wave
  • Rated Power: 3000VA/3000W
  • Parallel Capability: No
  • AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
  • Surge Power: 6000VA
  • Efficiency (Peak): 93%
  • Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)

Solar Charger

  • Maximum PV Array Power: 1000W
  • MPPT Range @ Operating Voltage: 30VDC ~80VDC
  • Standby Power Consumption: 2W
  • Maximum PV Array Open Circuit Voltage: 100VDC
  • Maximum Efficiency: 97%
  • Maximum Solar Charge Current: 50A

AC Charger

  • Charge Current: 30A
  • AC Input Voltage: 230 VAC
  • Selectable Voltage Range: 170-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
  • Frequency Range: 50Hz/60Hz (Auto sensing)

Physical

  • Dimensions: 530mm x 400mm x 210mm
  • Weight: 11 kg
1 in 7 of all residential inverters worldwide is a Growatt Inverter

Australia’s choice for home solar backup across Queensland, Tasmania, and WA. With surge power up to 6000VA, handle fridges, TVs, and essential loads with ease. Stay powered during outages in Limpopo, Mpumalanga, and Free State. Built for off-grid solar in remote towns of Northern Territory and rural South Africa. Supports up to 1000W PV array input – perfect for small to medium solar setups. NRS-approved and popular for solar installations in Port Elizabeth and Bloemfontein. Suitable for farm power systems in Botswana, Zambia, and Mozambique. 230VAC ±5% regulation ensures stable and reliable energy output. Customers in Canberra, Hobart, and Perth trust Growatt inverters for solar independence. 97% solar charger efficiency maximises energy harvested from panels. Load-shedding ready for South African homes needing dependable battery backup. A smart investment for energy independence across Victoria and New South Wales. Perfect solar partner for Lesotho and Swaziland rural power solutions. User-friendly design with plug-and-play setup for easy installation. Growatt SPF 3000TL HVM-24 is the go-to 24V inverter for small-scale businesses. Save electricity bills with solar hybrid mode blending PV and AC grid power. Power your sustainable energy journey with Growatt – trusted in over 100 countries worldwide
