5kW Luxpower Load Shedding Kit | 5120Wh Battery
R27 499,00

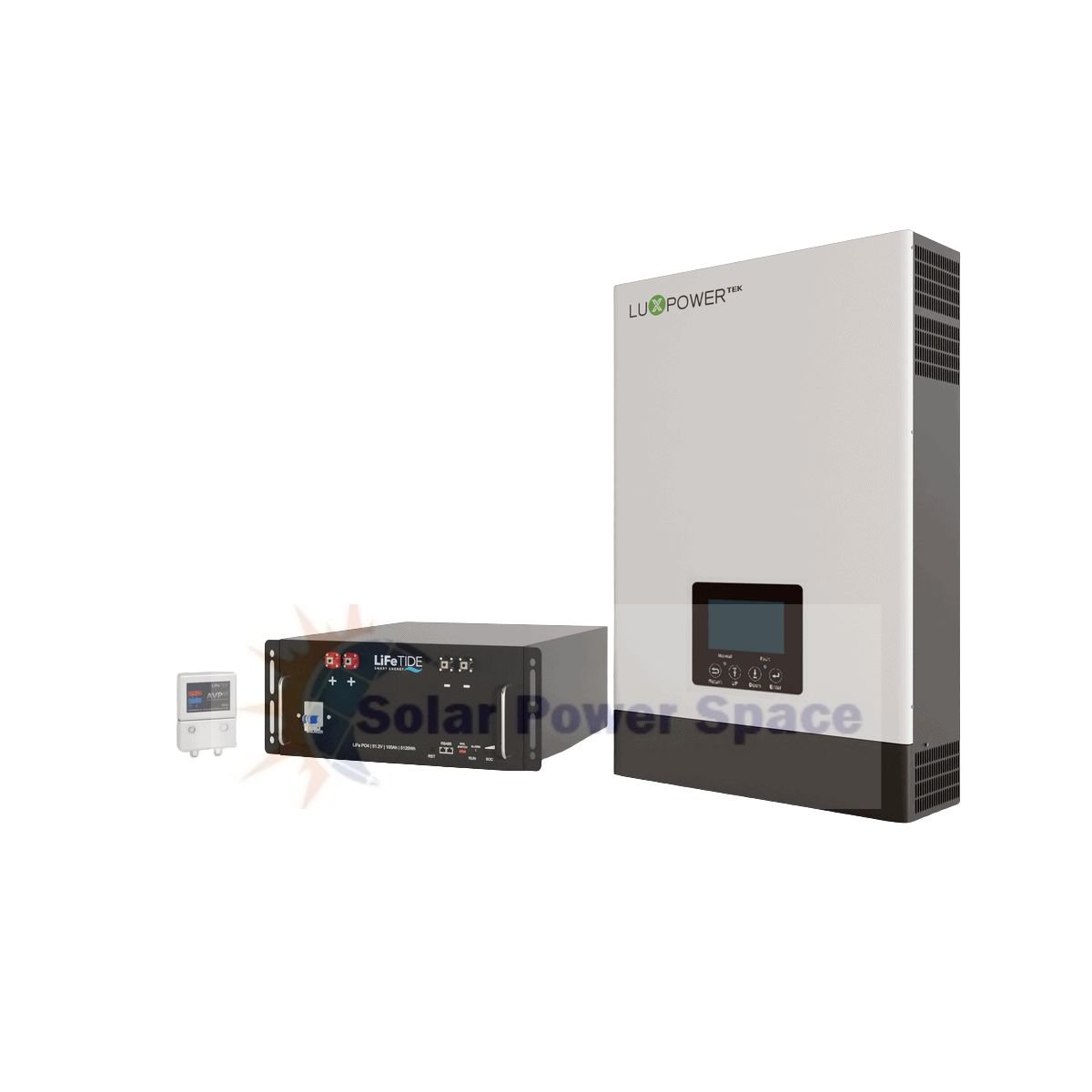

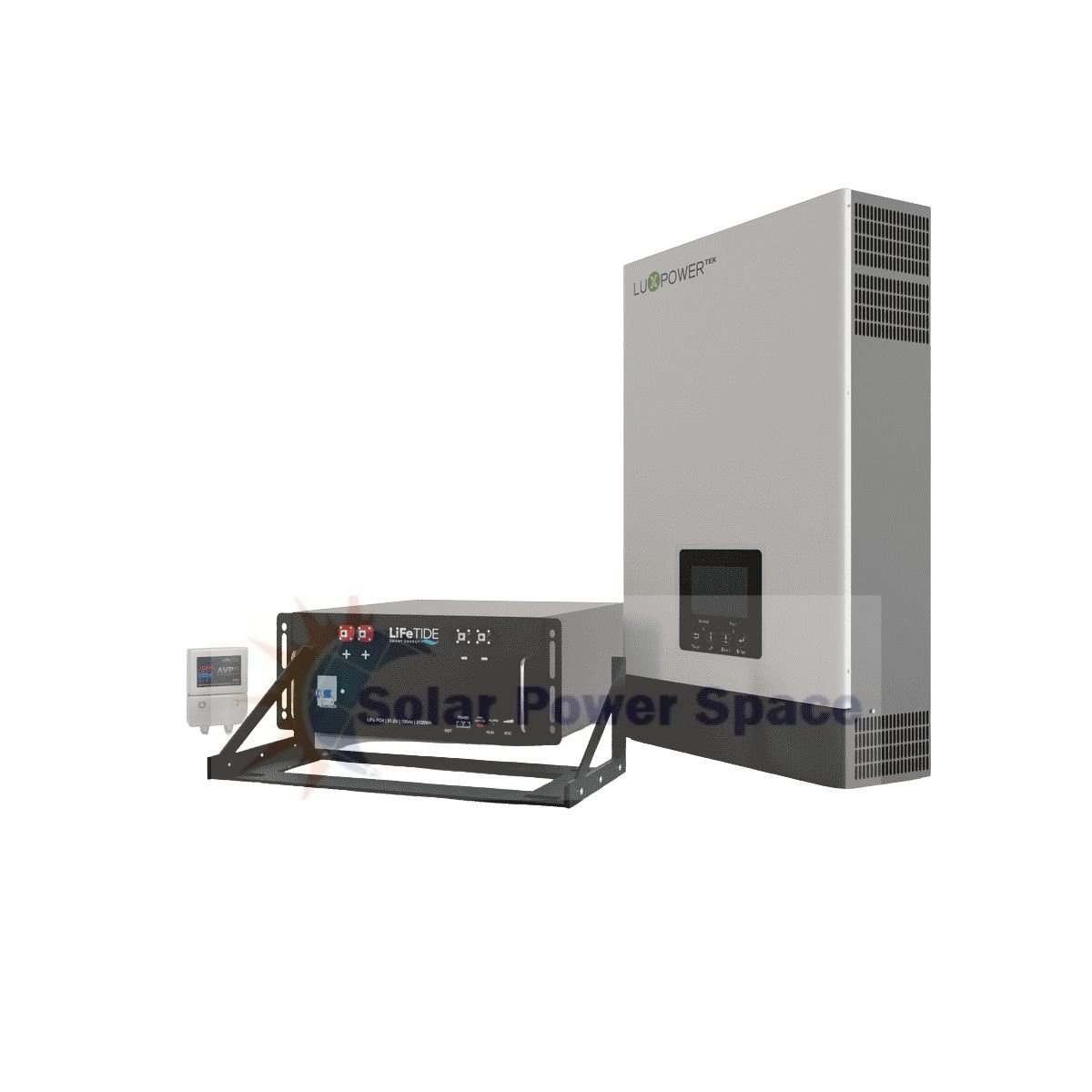

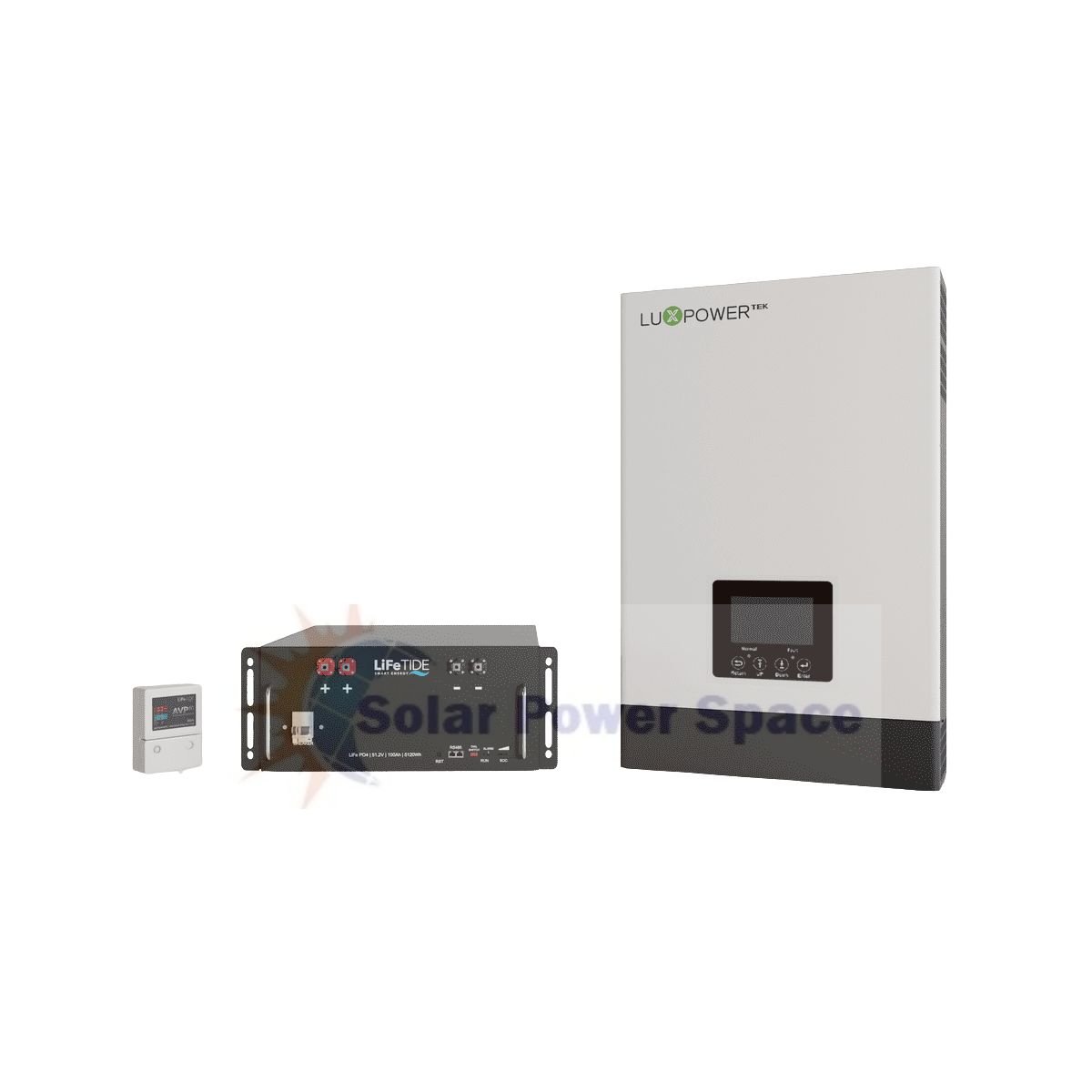

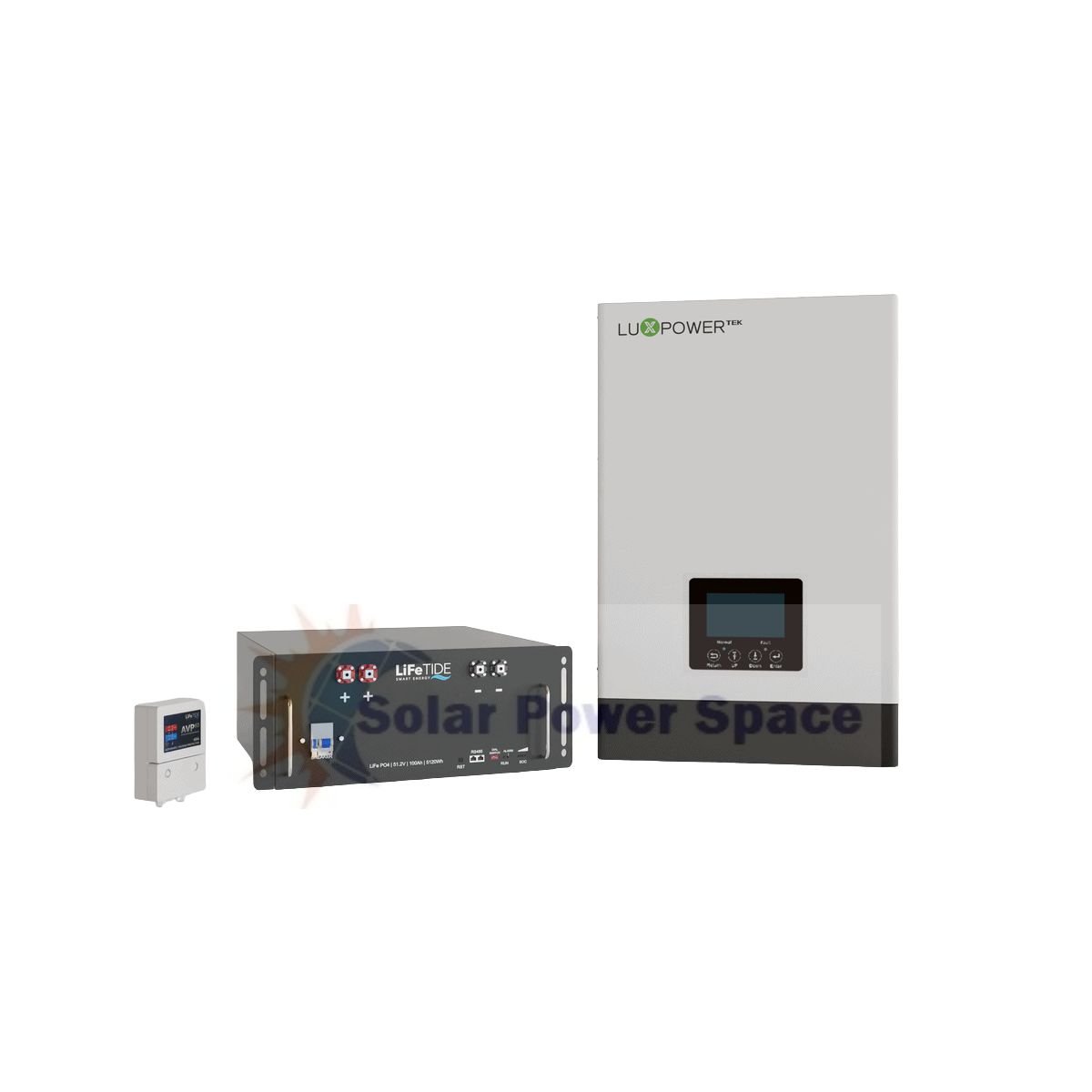

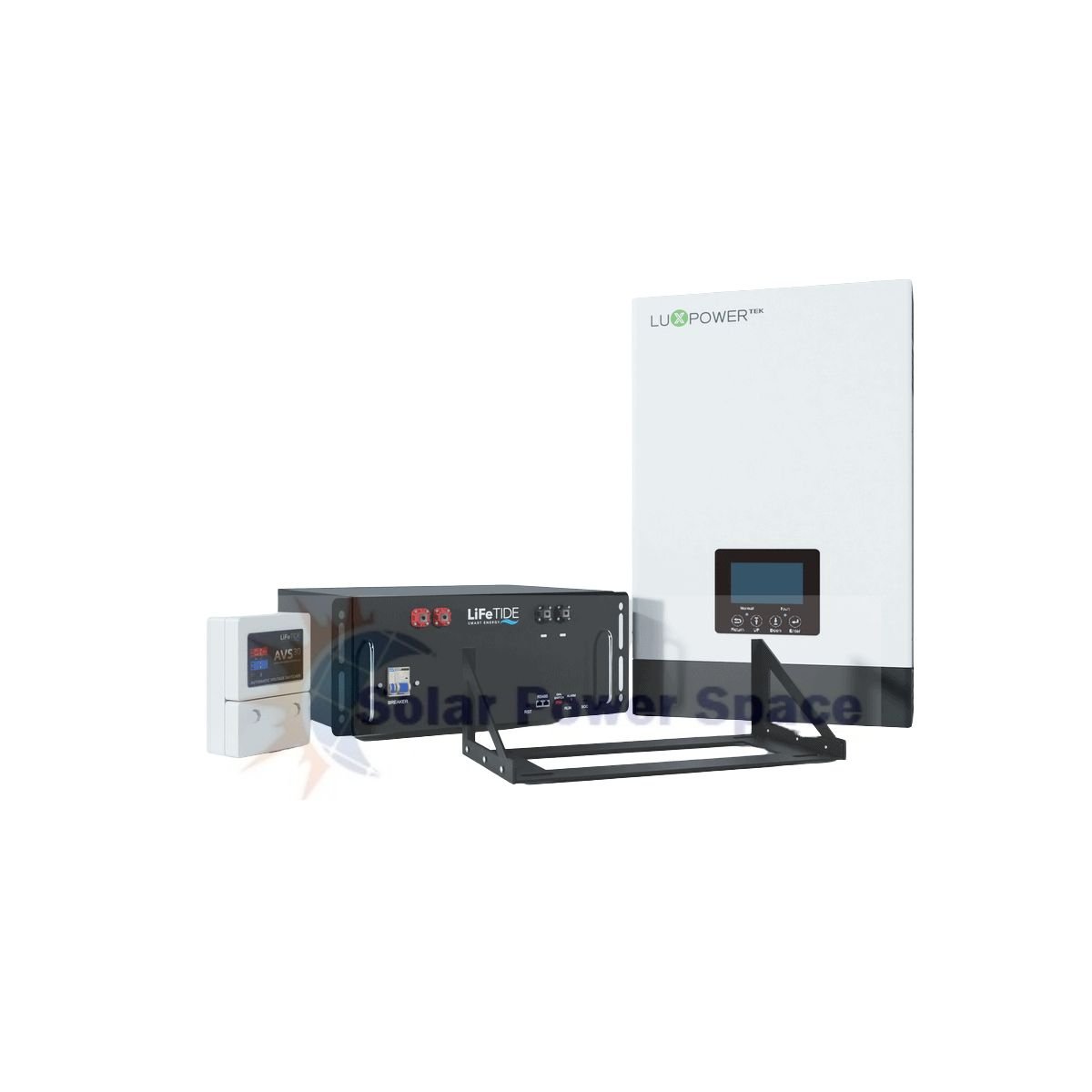

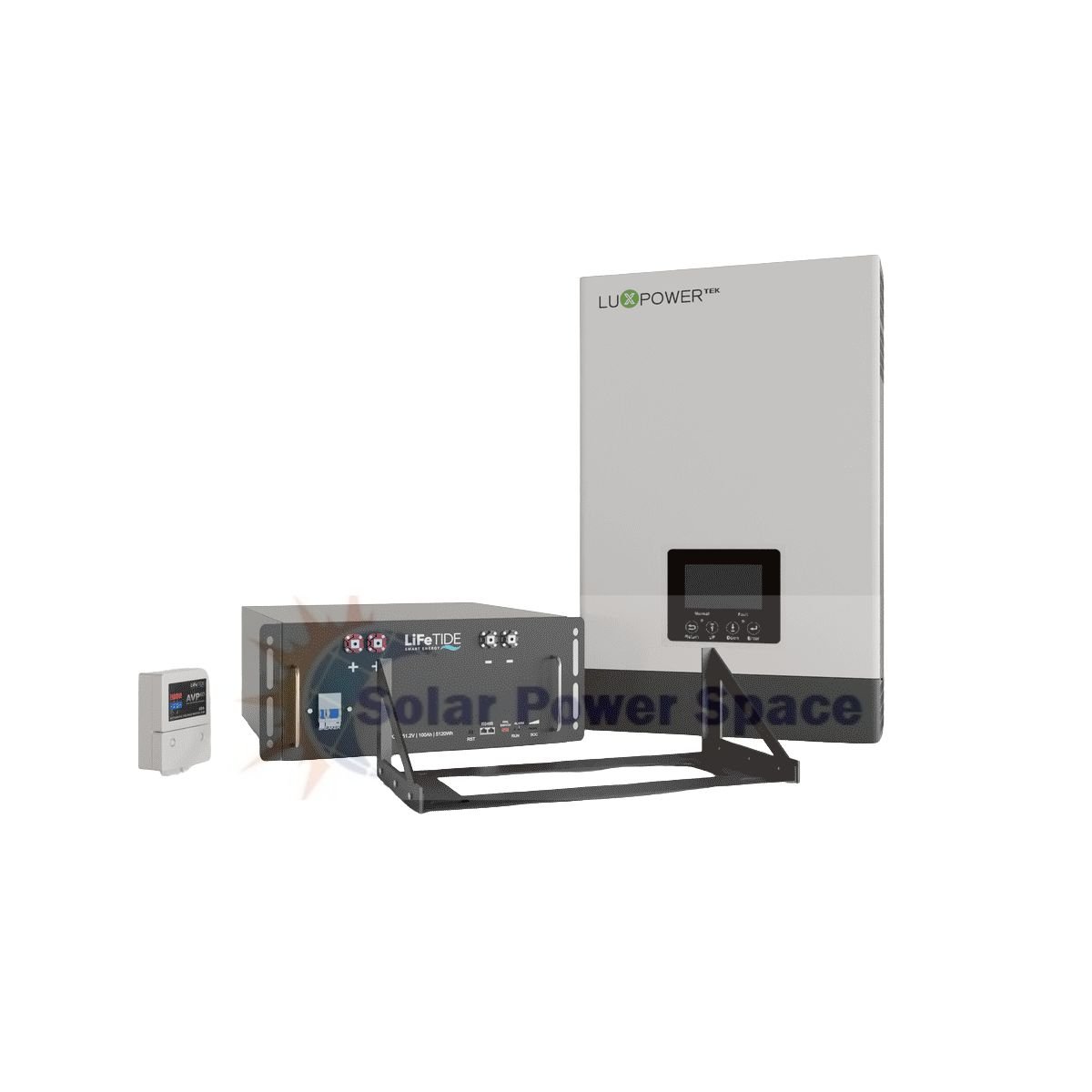

5kW Luxpower Load Shedding Kit | 5120Wh Battery
Need help choosing the right Solar equipment? Call us today!
Everything you need when the power goes out:
INVERTER: LuxPower 5kw SNA5000 Solar Inverter
BATTERY: LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
AVS: Automatic Voltage Protector 60A
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors
~ Please contact us for a final quote ~
~ Installation is not included ~
Description
LiFePO4 | 51.2V | 100Ah | 5120Wh
THE BATTERY
5kW Luxpower Load Shedding Kit | 5120Wh Battery. The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.
Buy 5120Wh LiFePO4 Battery – Reliable Off-Grid Storage, 51.2V 100Ah Lithium Battery – Solar & Load Shedding Backup, Long Life LiFePO4 Battery – 6000+ Cycles & Eco-Friendly, Fast Charging Lithium Battery – Renewable Energy Storage, Safe & Durable Lithium Solar Battery – 5-Year Warranty
These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.
Features:
- Ultra-reliable Lithium Iron Phosphate Technology.
- High Performance Tier One A+ Cells
- Power output = 5.12kW (continuous).
- Fully rechargeable in 2 hours.
Robust & Durable:
- Can be discharged to 100% DoD.
- 6,000 Cycles @ 80% DoD
- 99% Efficiency
- Laser Welded Cell Connections
Safe & Secure:
- Over-charge, over-discharge & short-circuit protection.
- Temperature, Voltage and Current Monitoring
- Non-combustible & 100% Recyclable.
- Smart Battery Monitoring System
- Built-In Fire Extinguisher
- Environmentally Friendly & Lead-Free
- Built-In Circuit Breaker
General Specification:
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
- Nominal Voltage: 51.2V.
- Ah Rating: 100Ah @C1, 25°C.
- Rack Mount or Cabinet Storage
- Maximum Energy Density
Physical Attributes:
- Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
- Net Weight: 48.0kg .
- 5 Year Warranty
Voltage
- Voltage: 51.2VDC
- Nominal Capacity: 100Ah
- Watt Hours: 5120Wh
- Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
- Float: 54V ± 0.2V
- Low DC Cutoff: 47V-44V depending on load
- Charing Current: 100A (30A – 50A recommended)
- Discharging Current: 100A
LuxPower | 5kW | 48V
THE INVERTER
The LuxPower SNA 5000 is a high-quality off-grid inverter that delivers exceptional performance and reliability.
With its advanced features and cutting-edge technology, this inverter is designed to meet the demands of off-grid power systems. It boasts two high voltage MPPTs and a maximum PV input of 6000 Watts, allowing for efficient energy conversion and utilisation.
Buy LuxPower SNA 5000 5kW Off-Grid Inverter – High Efficiency, 5kW LuxPower Solar Inverter – Off-Grid Load Shedding Solution, LuxPower SNA 5000 – Reliable 5kW Pure Sine Wave Inverter, Off-Grid Inverter 5kW – Solar + Lithium Battery Compatible, LuxPower 5kW Solar Inverter – Affordable Backup Power
The LuxPower SNA 5000 is also compatible with a wide range of lithium batteries, providing flexibility and versatility in system configuration. With the added convenience of off-site monitoring via an intuitive app, you can easily track and manage your energy production.
Trust in the LuxPower SNA 5000 for reliable and efficient off-grid power solutions.
Output
- Rated Power: 5000W
- Parallel Supported: Yes
- Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
- Normal Output Frequency: 50Hz / 60Hz
- Surge Power: 10000VA
- Switch Time: 10ms
- Wave Form: Pure Sine Wave
Battery
- Battery Type Supported: Lithium / Lead-Acid
- Normal Voltage: 51.2VDC / 48VDC
- Maximum Charging Voltage: 59VDC
Solar
- Maximum PV Power: 3200W / 3200W
- Number of MPP Trackers: 2
- Maximum PV Open Circuit Voltage: 480VDC
- MPPT Voltage Range: 100VDC – 385VDC
- Maximum Solar Charge Current: 100A
- Maximum Solar Input Current: 13A / 13A
Grid
- Normal Voltage: 230VAC
- AC Voltage Range: 110VAC-280VAC
- Maximum Charge Current: 60A
- Frequency Range: 50Hz / 60Hz (Auto Sensing)
Environment Limit
- Ingress Protection: IP20
- Relative Humidity: 5% to 95% (Non Condensing)
- Operating Temperature Range: 0°C to +50°C
- Storage Temperature: -15°C to +60°C
- Communication: CAN / RS485/ WIFI / GPRS
PRODUCT SPECIFICATIONS
| Weight | 65.3 kg |
|---|---|
| Dimensions | 61 × 52 × 72 cm |
| Brand | LiFeTIDE, Luxpower |
| Product Type | Load Shedding Kit |
| System Phase | Single Phase |
| System Type | Off-Grid |
| kW Size | 5kW |
| Battery Storage Capacity | 5120Wh/battery |
| Amp Hours (Ah) | 100Ah/battery |
| Battery Cycles | >6000/battery |
| Depth of Discharge (DoD) | 80% |
| Energy Storage | Lithium Iron Phosphate (LiFePO4) Battery |
| Max Parallel Units | 10 Inverters, 16 Batteries |
| Maximum PV Array Power | 6000W/inverter |
| Mounting | Battery Cabinet, Wall Mount |
| Voltage | 48V |
| Warranty | Manufacturer Warranty Per Item |
