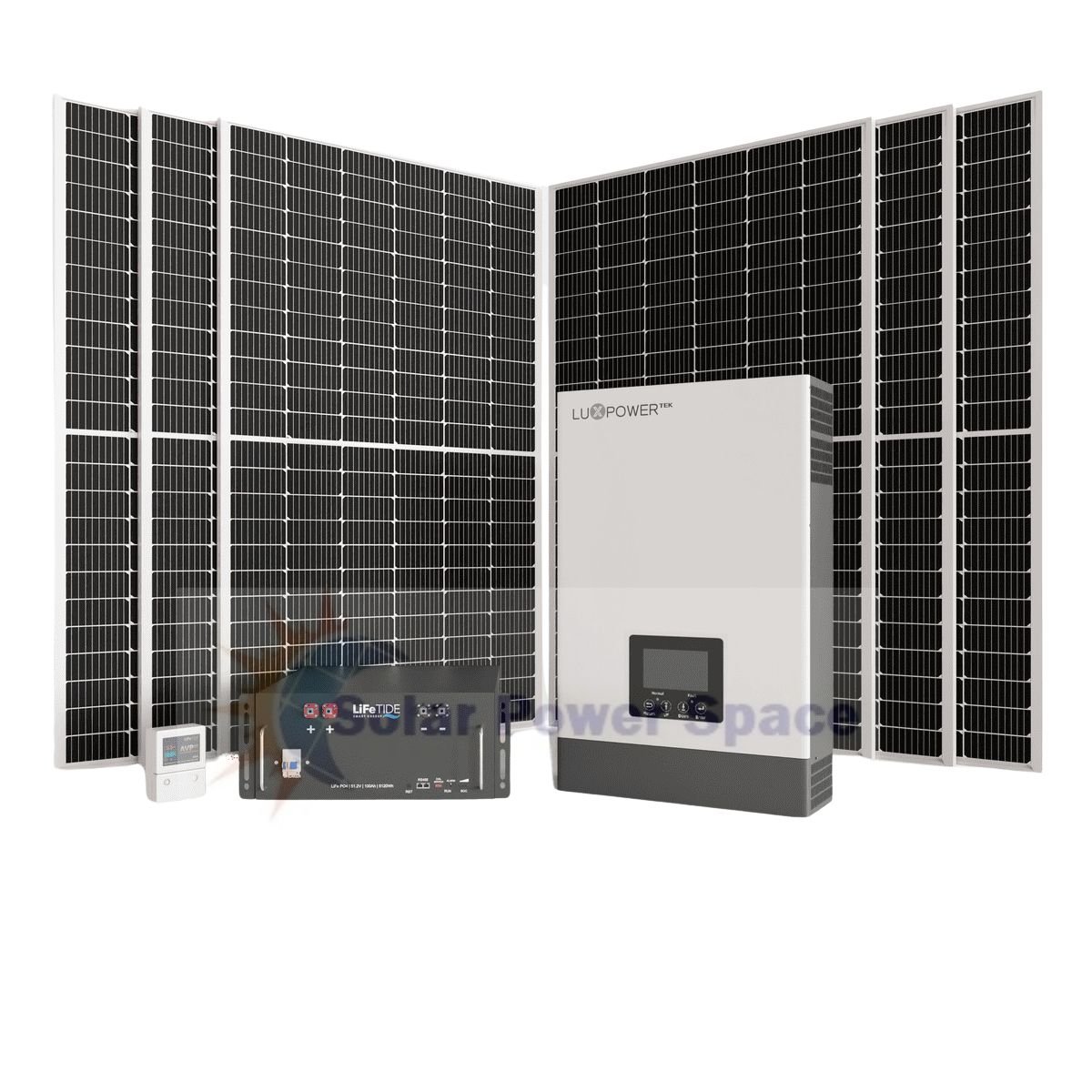

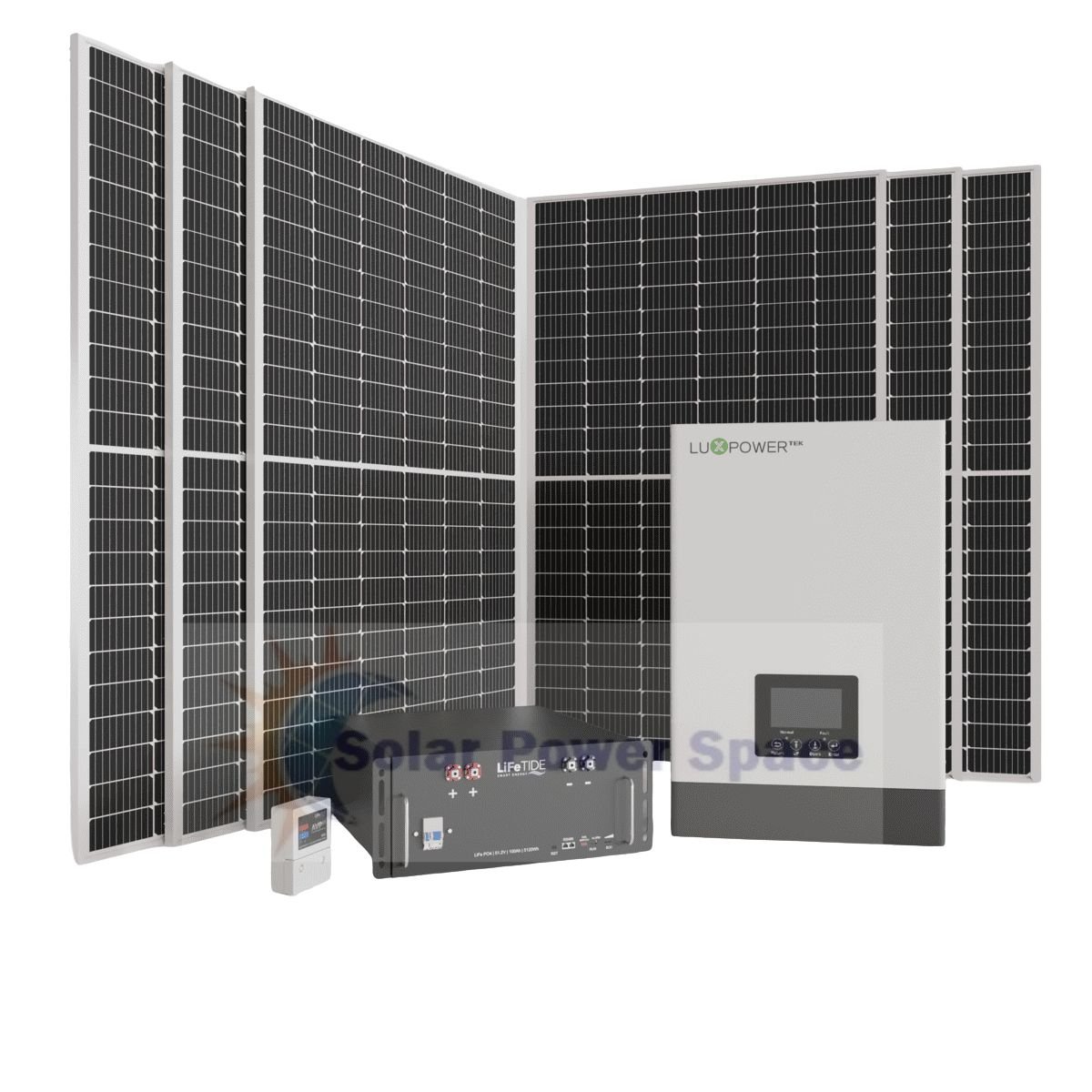

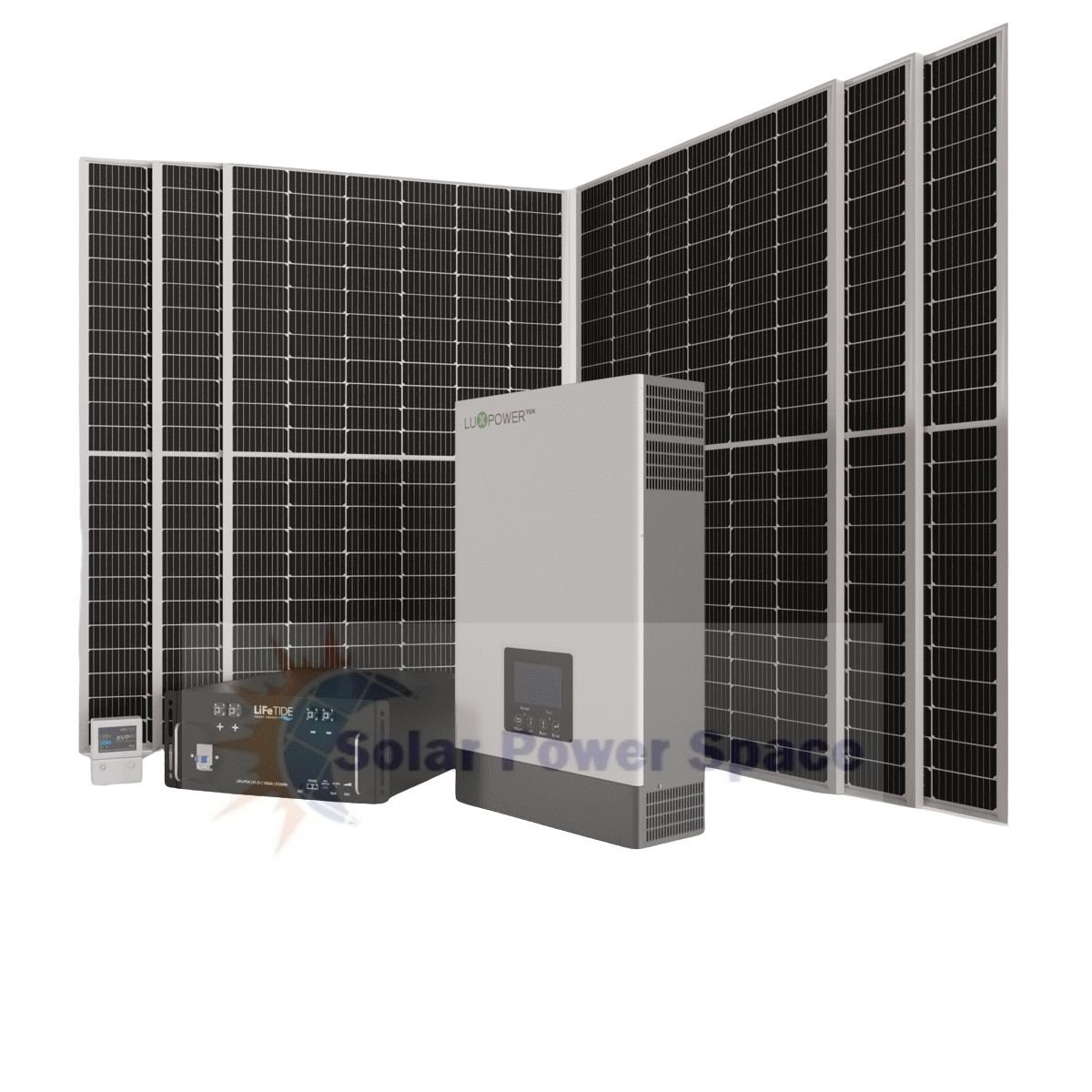

5kW LuxPower Solar System | 5.12KWH Battery | 5x 565W JA Solar Panels
Original price was: R38 999,00.R36 999,00Current price is: R36 999,00.
Price incl. VAT
5kW LuxPower Solar System | 5.12KWH Battery | 5x 565W JA Solar Panels
Need help choosing the right Solar equipment? Call us today!
Everything you need when the power goes out:
INVERTER: LuxPower SNA5000 | 5Kw | 48V
BATTERY: LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
PANELS: 5x JA Solar 565W Bifacial Solar Panel
AVS: Automatic Voltage Protector 60A
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors
~ Please contact us for a final quote ~
~ Installation is not included ~
This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Description
LiFePO4 | 51.2V | 100Ah | 5120Wh
THE BATTERY
The 5120Wh LiFePO4 Batteries offered by LiFeTIDE are a high-capacity and reliable energy storage solution.
These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.
Features:
- Ultra-reliable Lithium Iron Phosphate Technology.
- High Performance Tier One A+ Cells
- Power output = 5.12kW (continuous).
- Fully rechargeable in 2 hours.
Robust & Durable:
- Can be discharged to 100% DoD.
- 6,000 Cycles @ 80% DoD
- 99% Efficiency
- Laser Welded Cell Connections
Safe & Secure:
- Over-charge, over-discharge & short-circuit protection.
- Temperature, Voltage and Current Monitoring
- Non-combustible & 100% Recyclable.
- Smart Battery Monitoring System
- Built-In Fire Extinguisher
- Environmentally Friendly & Lead-Free
- Built-In Circuit Breaker
General Specification:
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
- Nominal Voltage: 51.2V.
- Ah Rating: 100Ah @C1, 25°C.
- Rack Mount or Cabinet Storage
- Maximum Energy Density
Physical Attributes:
- Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
- Net Weight: 48.0kg .
- 5 Year Warranty
Voltage
- Voltage: 51.2VDC
- Nominal Capacity: 100Ah
- Watt Hours: 5120Wh
- Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
- Float: 54V ± 0.2V
- Low DC Cutoff: 47V-44V depending on load
- Charing Current: 100A (30A – 50A recommended)
- Discharging Current: 100A
LuxPower | 5kW | 48V
THE INVERTER
The LuxPower SNA 5000 is a high-quality off-grid inverter that delivers exceptional performance and reliability.
With its advanced features and cutting-edge technology, this inverter is designed to meet the demands of off-grid power systems. It boasts two high voltage MPPTs and a maximum PV input of 6000 Watts, allowing for efficient energy conversion and utilisation.
The LuxPower SNA 5000 is also compatible with a wide range of lithium batteries, providing flexibility and versatility in system configuration. With the added convenience of off-site monitoring via an intuitive app, you can easily track and manage your energy production.
Trust in the LuxPower SNA 5000 for reliable and efficient off-grid power solutions.
Output
- Rated Power: 5000W
- Parallel Supported: Yes
- Normal Output Voltage: 230VAC-240VAC, Split Phase 220VAC/110VAC
- Normal Output Frequency: 50Hz / 60Hz
- Surge Power: 10000VA
- Switch Time: 10ms
- Wave Form: Pure Sine Wave
Battery
- Battery Type Supported: Lithium / Lead-Acid
- Normal Voltage: 51.2VDC / 48VDC
- Maximum Charging Voltage: 59VDC
Solar
- Maximum PV Power: 3200W / 3200W
- Number of MPP Trackers: 2
- Maximum PV Open Circuit Voltage: 480VDC
- MPPT Voltage Range: 100VDC – 385VDC
- Maximum Solar Charge Current: 100A
- Maximum Solar Input Current: 13A / 13A
Grid
- Normal Voltage: 230VAC
- AC Voltage Range: 110VAC-280VAC
- Maximum Charge Current: 60A
- Frequency Range: 50Hz / 60Hz (Auto Sensing)
Environment Limit
- Ingress Protection: IP20
- Relative Humidity: 5% to 95% (Non Condensing)
- Operating Temperature Range: 0°C to +50°C
- Storage Temperature: -15°C to +60°C
- Communication: CAN / RS485/ WIFI / GPRS
Bifacial Solar Panel | 565W
JA SOLAR PANEL
The JA Solar 565W Bifacial Solar Panel is designed to capture sunlight from both sides, these advanced panels increase energy generation by up to 30% compared to traditional monofacial panels.
Upgrade your solar system with the cutting-edge JA Solar 565W Bifacial Solar Panel and experience a significant boost in energy generation. Harness the sun’s power from both sides and take a step towards a greener future.
Impressive Power Output
Boasting an impressive 565W power output, these bifacial panels ensure maximum energy production for your solar system.
Bifacial Technology
The dual-sided design enables sunlight absorption from both the front and rear sides, harnessing reflected light to generate additional power.
Durable and Weather-Resistant
Crafted with premium materials, the JA Solar 565W panels are built to withstand harsh weather conditions, ensuring long-lasting performance.
Versatile Applications
Whether you’re installing a residential or commercial solar system, this panel is suitable for a wide range of applications. Its versatility allows for seamless integration into various rooftop or ground-mounted installations.
Eco-Friendly and Sustainable
By harnessing solar energy, you contribute to a cleaner and more sustainable future. The JA Solar 460W Monocrystalline Solar Panel enables you to reduce your carbon footprint and lower your reliance on fossil fuels.
Rigorous Quality Control
JA Solar is renowned for its strict quality control measures, ensuring that each solar panel meets the highest industry standards. You can trust in the reliability and longevity of the JA Solar brand.
Easy Installation
The panel features a user-friendly design, making installation quick and hassle-free. Compatible with various mounting systems, it allows for flexible and convenient installation options.
PRODUCT SPECIFICATIONS
| Weight | 259.10 kg |
|---|---|
| Dimensions | 61 × 52 × 72 cm |
| Brand | LiFeTIDE, JA Solar, Luxpower |
| Product Type | Solar System |
| System Phase | Single Phase |
| System Type | Off-Grid |
| kW Size | 5kW |
| Battery Storage Capacity | 5120Wh/battery |
| Amp Hours (Ah) | 100Ah/battery |
| Battery Cycles | >6000/battery |
| Depth of Discharge (DoD) | 80% |
| Energy Storage | Lithium Iron Phosphate (LiFePO4) Battery |
| Max Parallel Units | 10 Inverters, 16 Batteries |
| Maximum PV Array Power | 6000W/inverter |
| Panel Watts | 565W/panel |
| Panel Cell Type | Bifacial |
| Panel Efficiency | 21.9% |
| Mounting | Battery Cabinet, Roof Mounting, Wall Mount |
| Voltage | 48V |
| Warranty | Manufacturer Warranty Per Item |
