FREE SHIPPING WITHIN SOUTH AFRICA FOR ORDERS ABOVE R55.000 All PRICES INCLUDE VAT

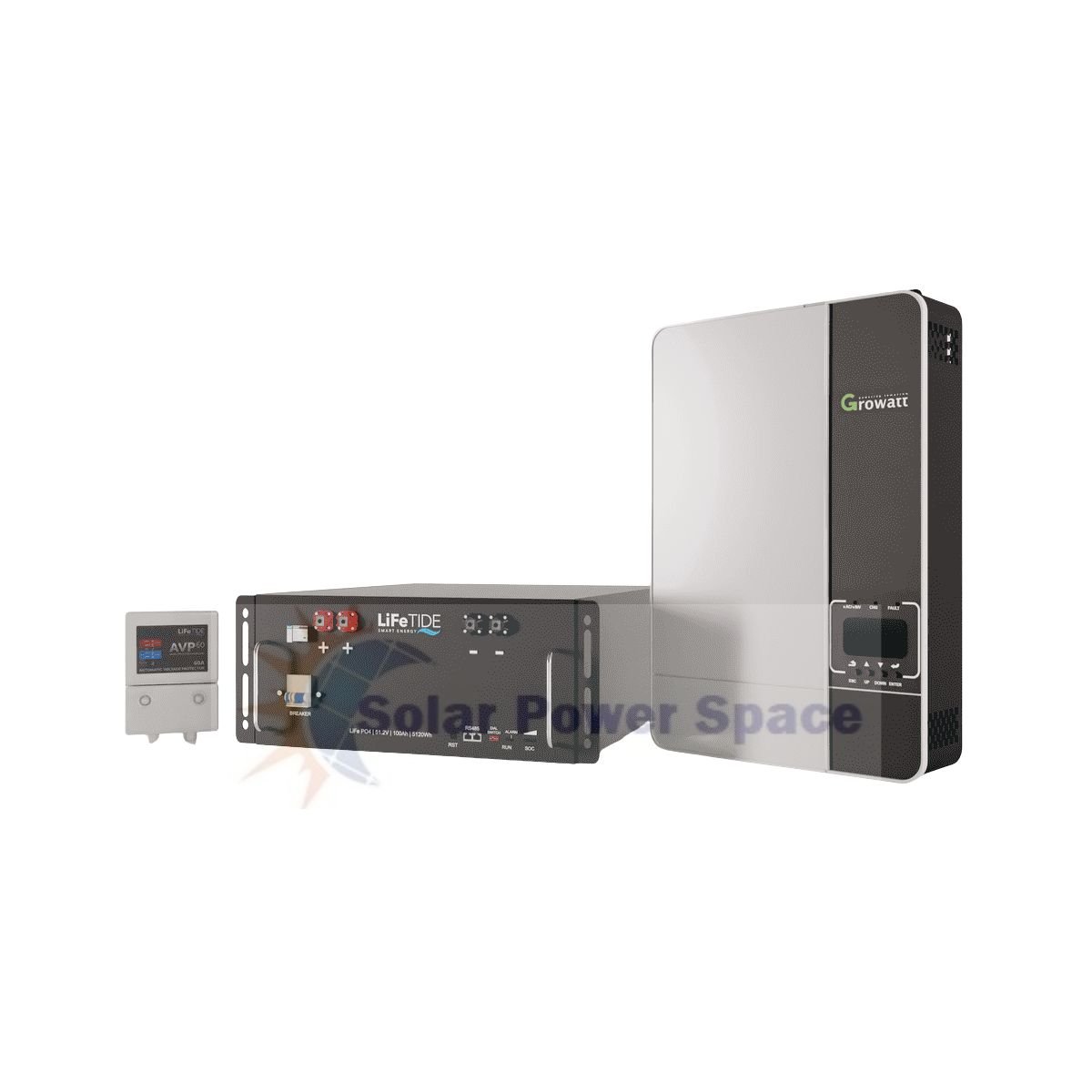

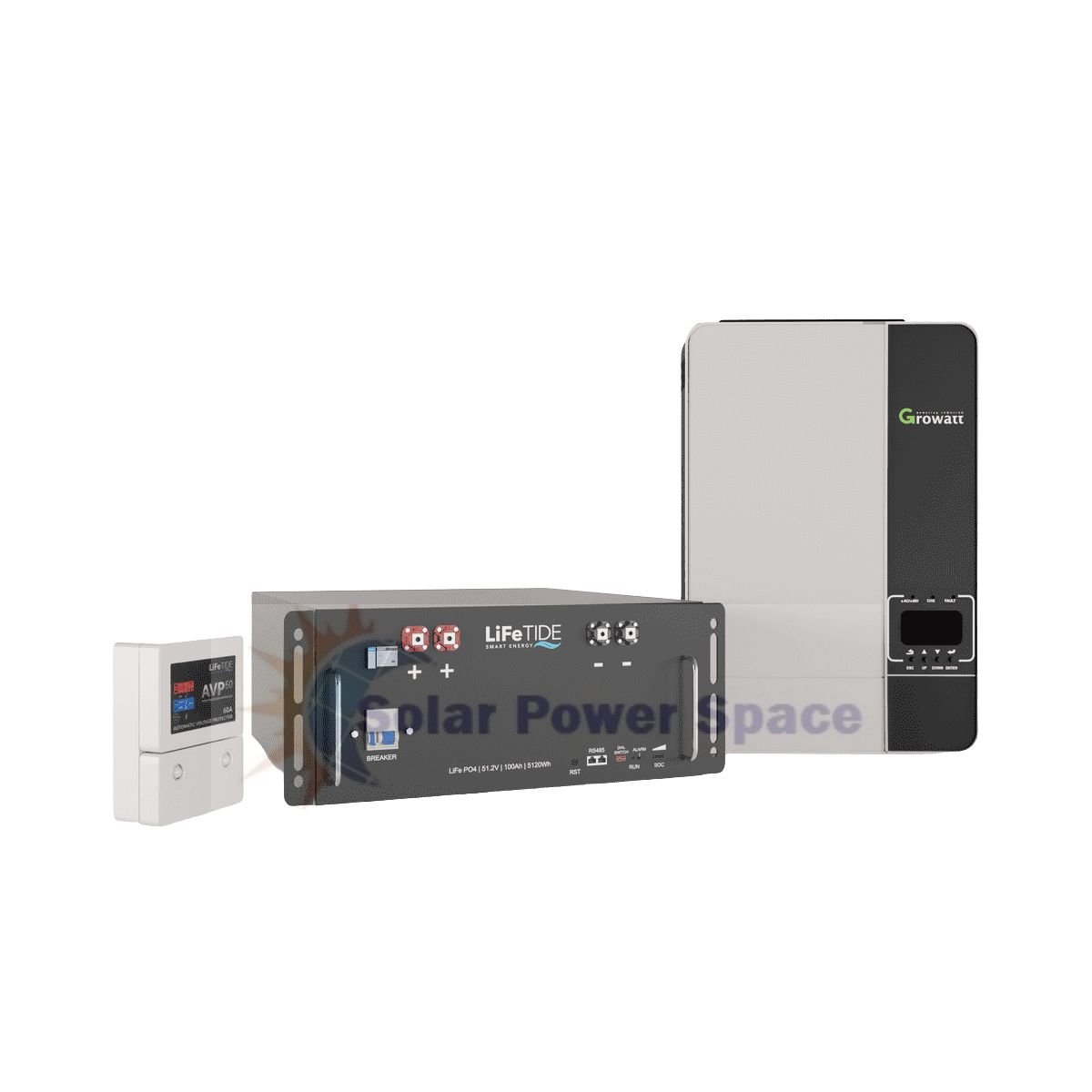

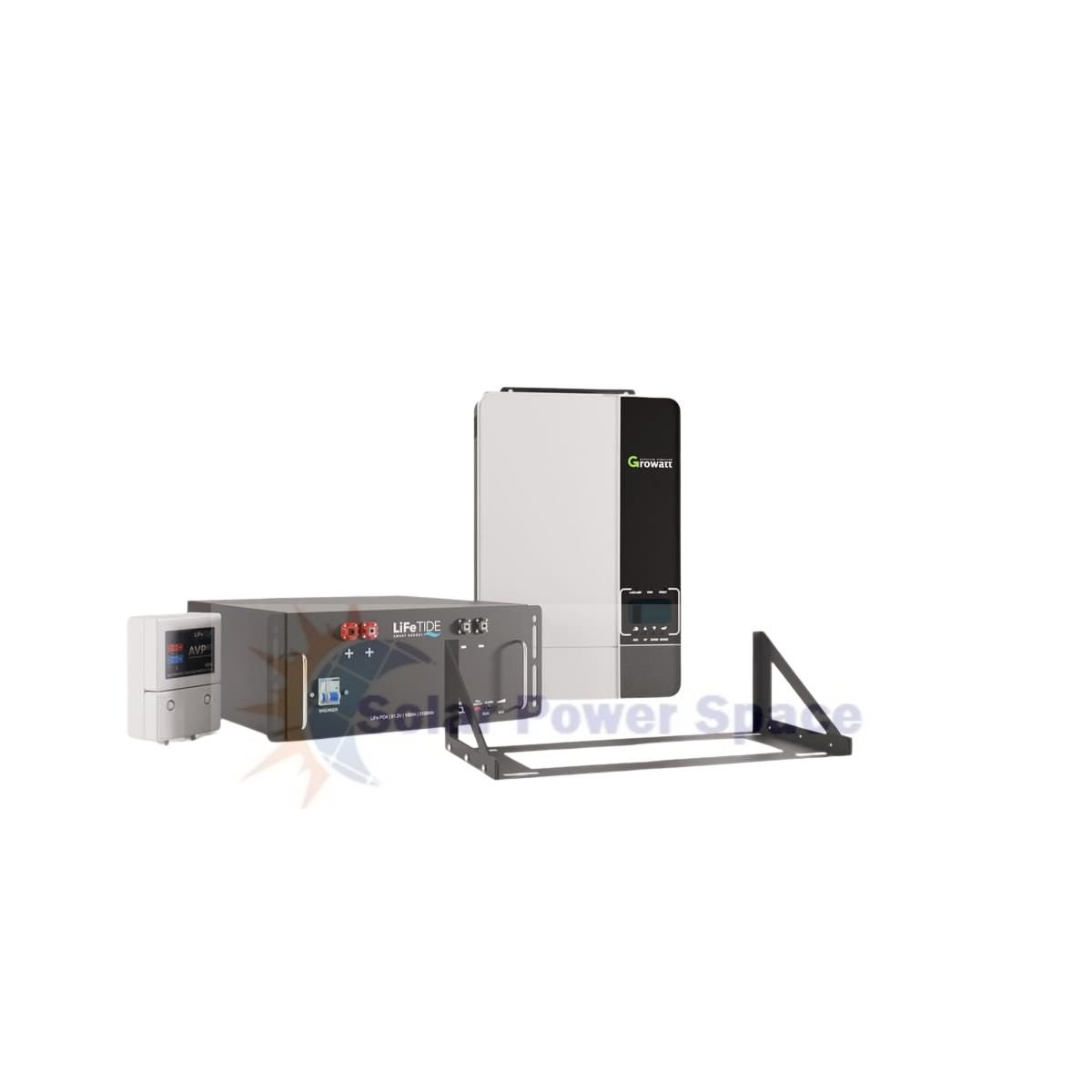

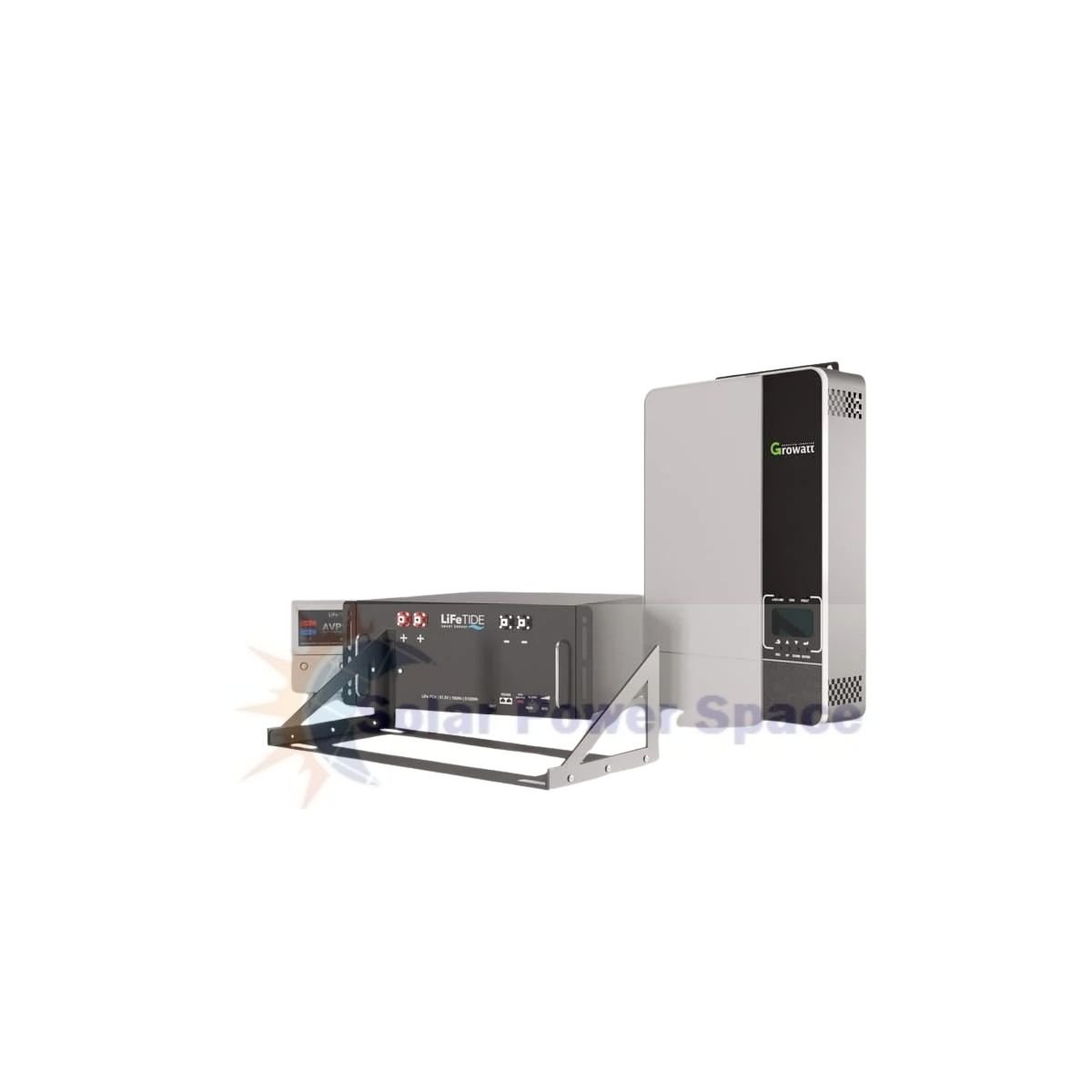

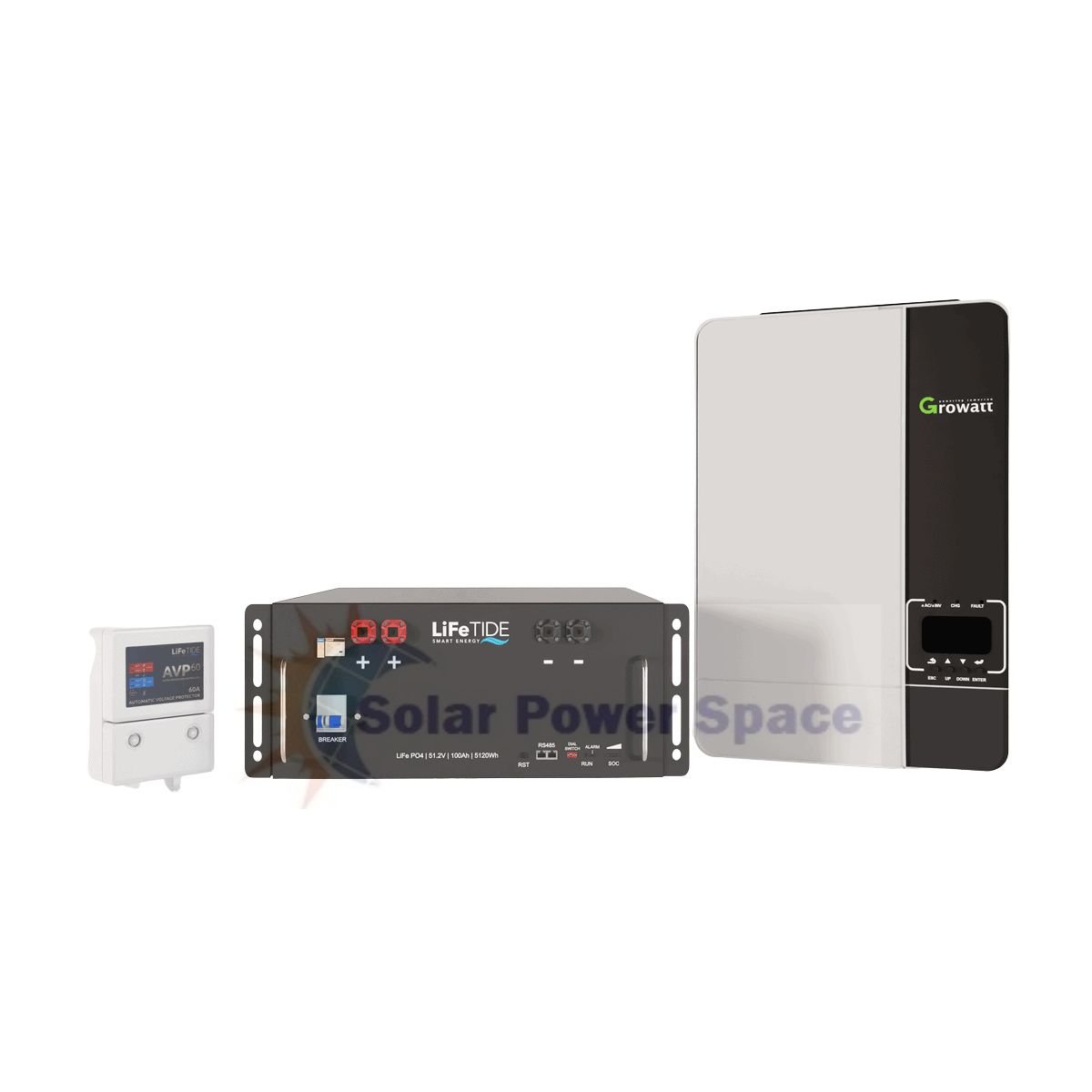

6kW Growatt Load Shedding Kit | 5120Wh LiFePO4 Battery

R21 799,00
Price incl. VAT

6kW Growatt Load Shedding Kit | 5120Wh LiFePO4 Battery

Need help choosing the right Solar equipment? Call us today!

Everything you need when the power goes out:

INVERTER: Growatt SPF 6000 ES | 6Kw | 48V
BATTERY: LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
CABLES: 2 x LiFeTIDE 150mm Red & Black Battery Connectors

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , , , ,
Brands: ,

Description

LiFePO4 | 51.2V | 100Ah | 5120Wh

THE BATTERY

The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution.

These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.

Features:

  • Ultra-reliable Lithium Iron Phosphate Technology.
  • High Performance  Tier One A+ Cells
  • Power output = 5.12kW (continuous).
  • Fully rechargeable in 2 hours.

Robust & Durable:

  • Can be discharged to 100% DoD.
  • 6,000 Cycles @ 80% DoD
  • 99% Efficiency
  • Laser Welded Cell Connections

Safe & Secure:

  • Over-charge, over-discharge & short-circuit protection.
  • Temperature, Voltage and Current Monitoring
  • Non-combustible & 100% Recyclable.
  • Smart Battery Monitoring System
  • Built-In Fire Extinguisher
  • Environmentally Friendly & Lead-Free
  • Built-In Circuit Breaker

General Specification:

  • Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
  • Nominal Voltage: 51.2V.
  • Ah Rating: 100Ah @C1, 25°C.
  • Rack Mount or Cabinet Storage
  • Maximum Energy Density

Physical Attributes:

  • Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
  • Net Weight: 48.0kg .
  • 5 Year Warranty

Voltage

  • Voltage: 51.2VDC
  • Nominal Capacity: 100Ah
  • Watt Hours: 5120Wh
  • Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
  • Float: 54V ± 0.2V
  • Low DC Cutoff: 47V-44V depending on load
  • Charing Current: 100A (30A – 50A recommended)
  • Discharging Current: 100A

Growatt SPF 6000 ES | 5KW | 48V

THE INVERTER

With enhanced power capacity and next-generation technology, the Growatt SPF 6000ES Plus delivers reliable, high-performance power conversion for modern solar systems. Offering a robust 6000W output, it’s perfectly suited for both residential and light commercial applications. Its integrated dual MPPT charge controllers maximise solar energy yield, while the smart, user-friendly interface and optional WiFi/GPRS connectivity allow for effortless monitoring and system management. Trust the SPF 6000ES Plus to power your energy independence with efficiency, flexibility, and confidence.

Key Features

  • Dual MPPT solar charge controller (integrated)

  • Equalisation charging function for battery health

  • Supports up to 500 VDC PV input

  • Selectable input priority: solar or grid

  • WiFi/GPRS remote monitoring (optional)

  • Parallel support for up to 6 units (battery required)

  • Smart hybrid mode: PV and grid can supply load simultaneously

  • Scalable system – add solar panels later

  • From the world’s #1 residential inverter brand

General Specifications

  • Model: Growatt SPF 6000ES Plus

  • Battery Voltage: 48 VDC

  • Compatible Battery Types: Lithium / Lead-acid

Inverter Output [AC]

  • Rated Power: 6000 W

  • AC Output Voltage (Battery Mode): 230 VAC ± 5%

  • Surge Power: 12000 VA (for 5 sec)

  • Peak Efficiency: ≥ 93%

  • Waveform: Pure sine wave

  • Transfer Time: 10–20 ms

Solar Charger

  • Max PV Array Power: 8000 W

  • MPPT Operating Range: 120 – 460 VDC

  • Max PV Open Circuit Voltage: 500 VDC

  • Max Solar Charge Current: 100 A

AC Charger

  • Max Charge Current: 80 A

  • Input Voltage: 230 VAC

  • Selectable Voltage Range: 170–280 VAC (user configurable)

  • Frequency Range: 50/60 Hz (auto sensing)

Physical

  • Protection Rating: IP20 (indoor use)
  • Dimensions (W × H × D): 460 mm × 395 mm × 132 mm

  • Weight: 13.5 kg

PRODUCT SPECIFICATIONS

Weight 63.50 kg
Dimensions 60 × 51 × 72 cm
Brand Growatt, LiFeTIDE
Product Type Load Shedding Kit
System Phase Single Phase
Voltage 48V
kW Size 6kW
Battery Storage Capacity 5120Wh/battery
Amp Hours (Ah) 100Ah/battery
Battery Cycles >6000/battery
Depth of Discharge (DoD) 80%
Energy Storage Lithium Iron Phosphate (LiFePO4) Battery
Max Parallel Units 16 Batteries, 6 Inverters
Maximum PV Array Power 8000W/inverter
Mounting Wall Mount
System Type Off-Grid
Warranty Manufacturer Warranty Per Item
