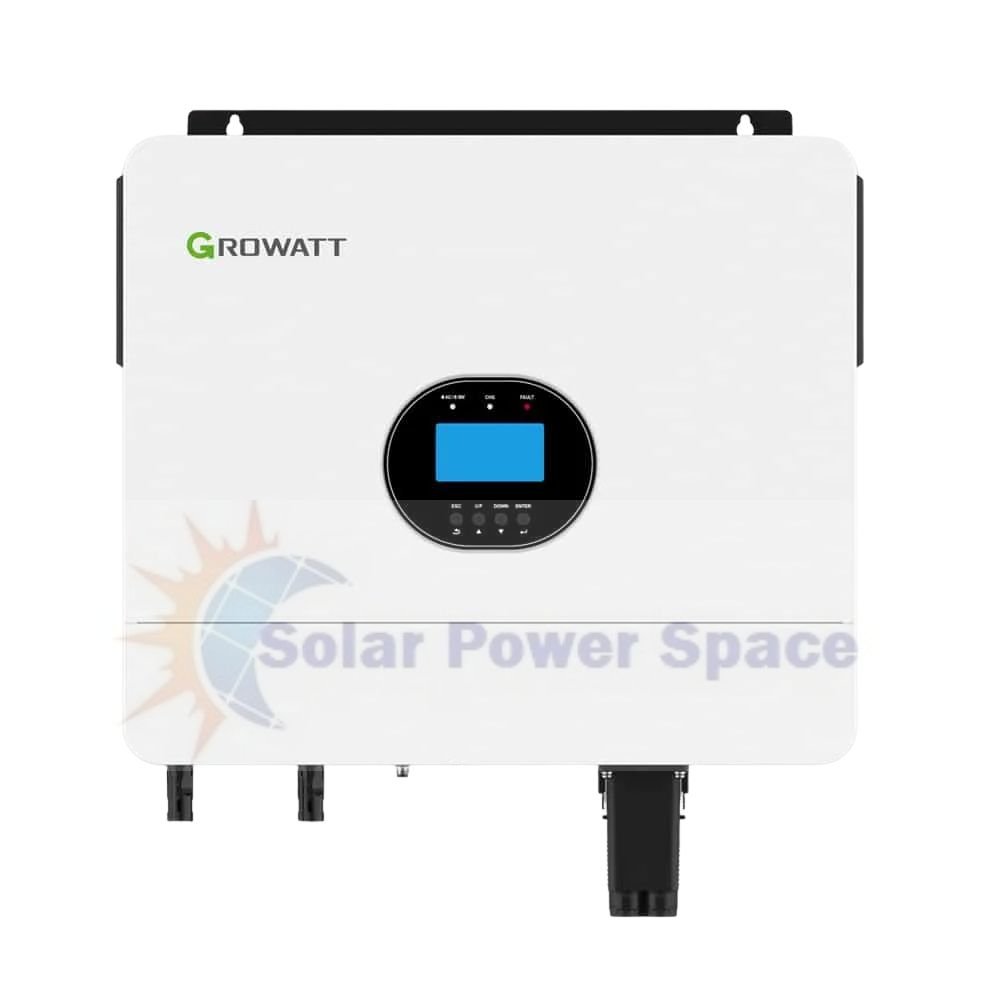

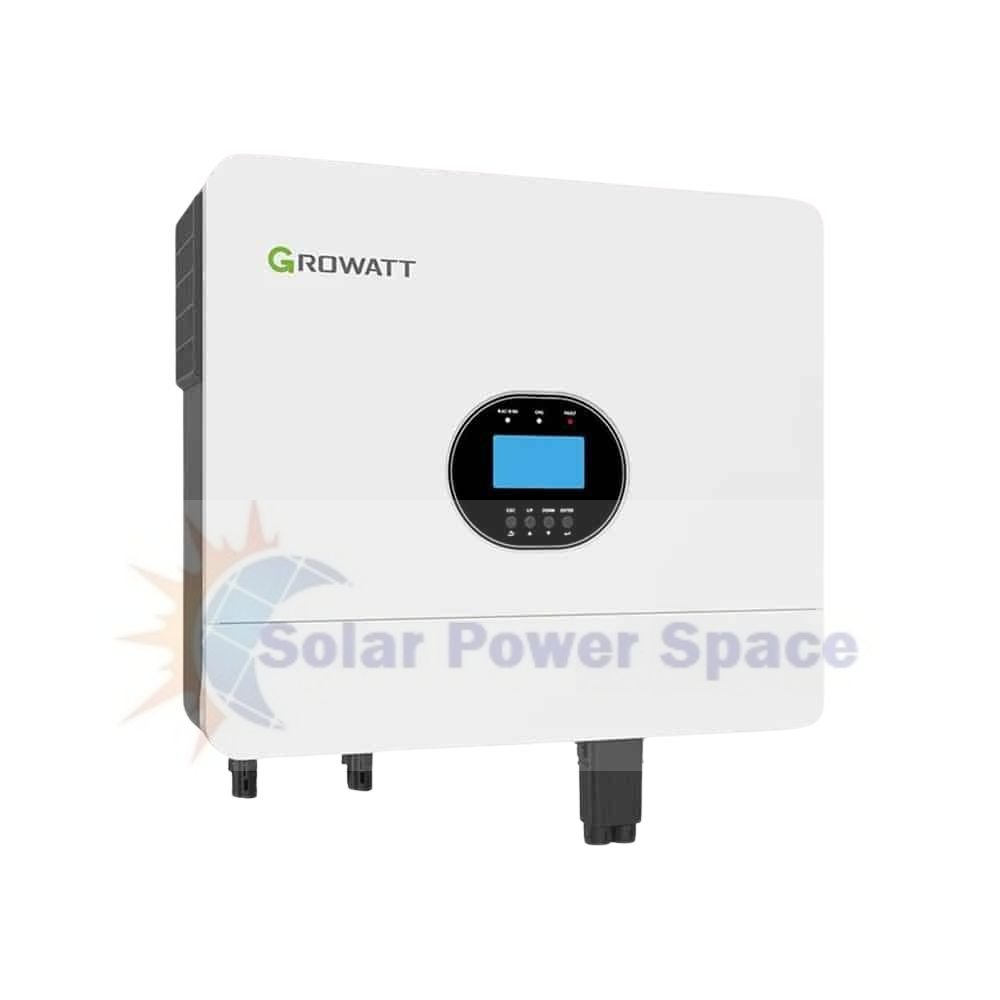

6kW Growatt SPF 6000 ES 48v Inverter

With enhanced power capacity and next-generation technology, the Growatt SPF 6000ES Plus delivers reliable, high-performance power conversion for modern solar systems. Offering a robust 6000W output, it’s perfectly suited for both residential and light commercial applications. Its integrated dual MPPT charge controllers maximise solar energy yield, while the smart, user-friendly interface and optional WiFi/GPRS connectivity allow for effortless monitoring and system management. Trust the SPF 6000ES Plus to power your energy independence with efficiency, flexibility, and confidence.

Key Features

• Dual MPPT solar charge controller (integrated)

• Equalisation charging function for battery health

• Supports up to 500 VDC PV input

• Selectable input priority: solar or grid

• WiFi/GPRS remote monitoring (optional)

• Parallel support for up to 6 units (battery required)

• Smart hybrid mode: PV and grid can supply load simultaneously

• Scalable system – add solar panels later

• From the world’s #1 residential inverter brand

General Specifications

• Model: Growatt SPF 6000ES Plus

• Battery Voltage: 48 VDC

• Compatible Battery Types: Lithium / Lead-acid

Inverter Output [AC]

• Rated Power: 6000 W

• AC Output Voltage (Battery Mode): 230 VAC ± 5%

• Surge Power: 12000 VA (for 5 sec)

• Peak Efficiency: ≥ 93%

• Waveform: Pure sine wave

• Transfer Time: 10–20 ms

Solar Charger

• Max PV Array Power: 8000 W

• MPPT Operating Range: 120 – 460 VDC

• Max PV Open Circuit Voltage: 500 VDC

• Max Solar Charge Current: 100 A

AC Charger

• Max Charge Current: 80 A

• Input Voltage: 230 VAC

• Selectable Voltage Range: 170–280 VAC (user configurable)

• Frequency Range: 50/60 Hz (auto sensing)

Physical

• Protection Rating: IP20 (indoor use)
• Dimensions (W × H × D): 460 mm × 395 mm × 132 mm

• Weight: 13.5 kg
