Battery Input Data
- Battery Type: Lead-acid or Li-lon.
- Battery Voltage Range (V): 40-60V.
- Max.Charging Current (A): 190A.
- Max.Discharging Current (A): 190A.
- Charging Curve: 3 Stages/Equalization.
- External Temperature Sensor: Optional.
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data
- Max. DC Input Power (W): 10400W.
- PV Input Voltage (V): 370V (100V – 500V).
- MPPT Range (V): 125V – 425V.
- Full Load DC Voltage Range: 240V – 425V.
- Start-up Voltage (V): 150V.
- PV Input Current (A): 18A+18A.
- No.of MPPT Trackers: 2.
- No.of strings per MPPT Tracker: 2+2.
AC Output Data
- Rated AC Output and UPS Power (W): 8000W.
- Max. AC Output Power (W): 8800W.
- Peak Power (off grid): 2 times of rated power, 10 S.
- AC Output Rated Current (A): 33.4A/35A.
- Max. AC Current (A): 38.3A/40A.
- Max Continuous AC Passthrough (A): 50A.
- Power Factor: 0.8 leading to 0.8 lagging.
- Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase).
- Grid Type: Split phase / 2/3 phase / Single Phase.
- Current Harmonic Distortion: THD<3%(Linear Load<1.5%).
General Data
- Operating Temparature Range (C): -25-60C, >45C Derating
- Cooling: Fan
- Noise(dB): <30
- Communication with BMS: RS485;CAN
- Weight (Kg): 20.5
- Size (Length x Widthx Height mm): 670 x 420 x 233mm
- Protection Degree: IP65
- Installation Style: Wall mounted
- Warranty: 5 Years

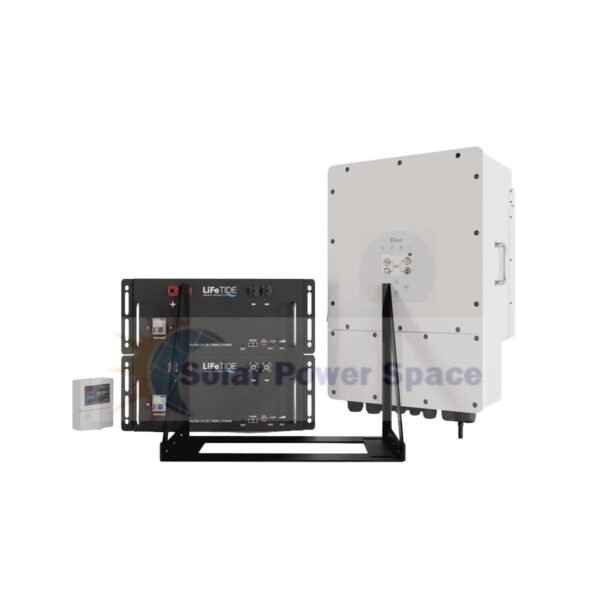

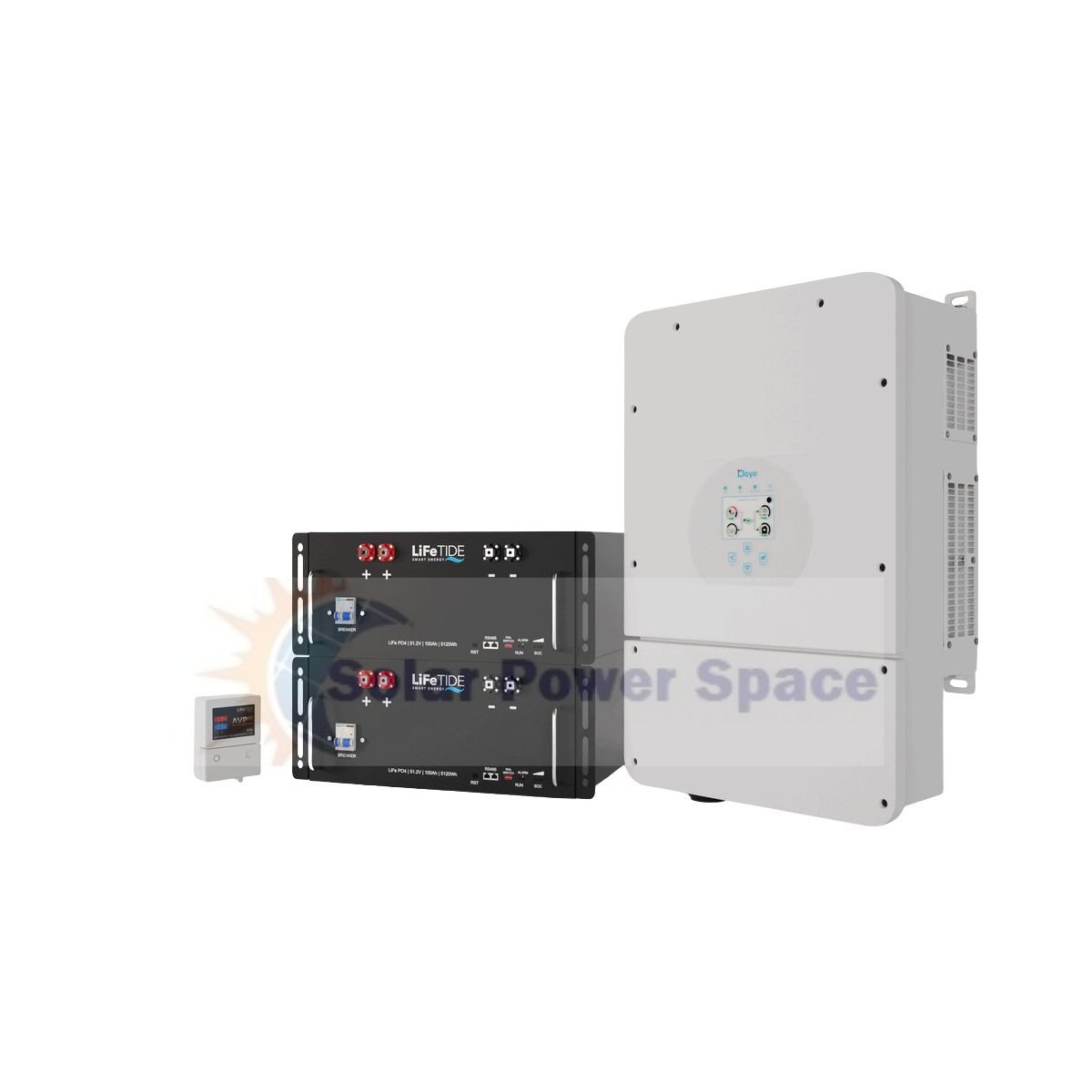

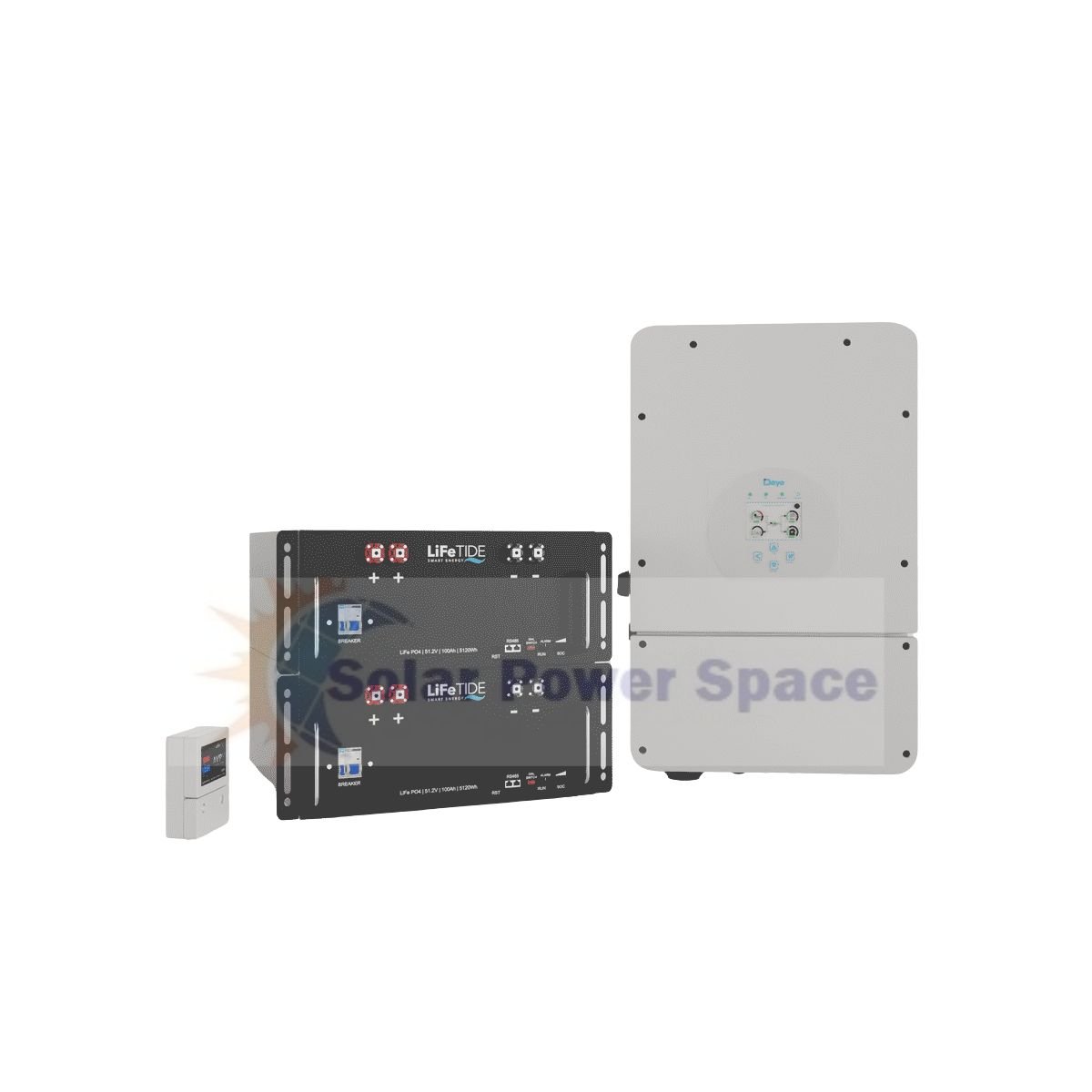

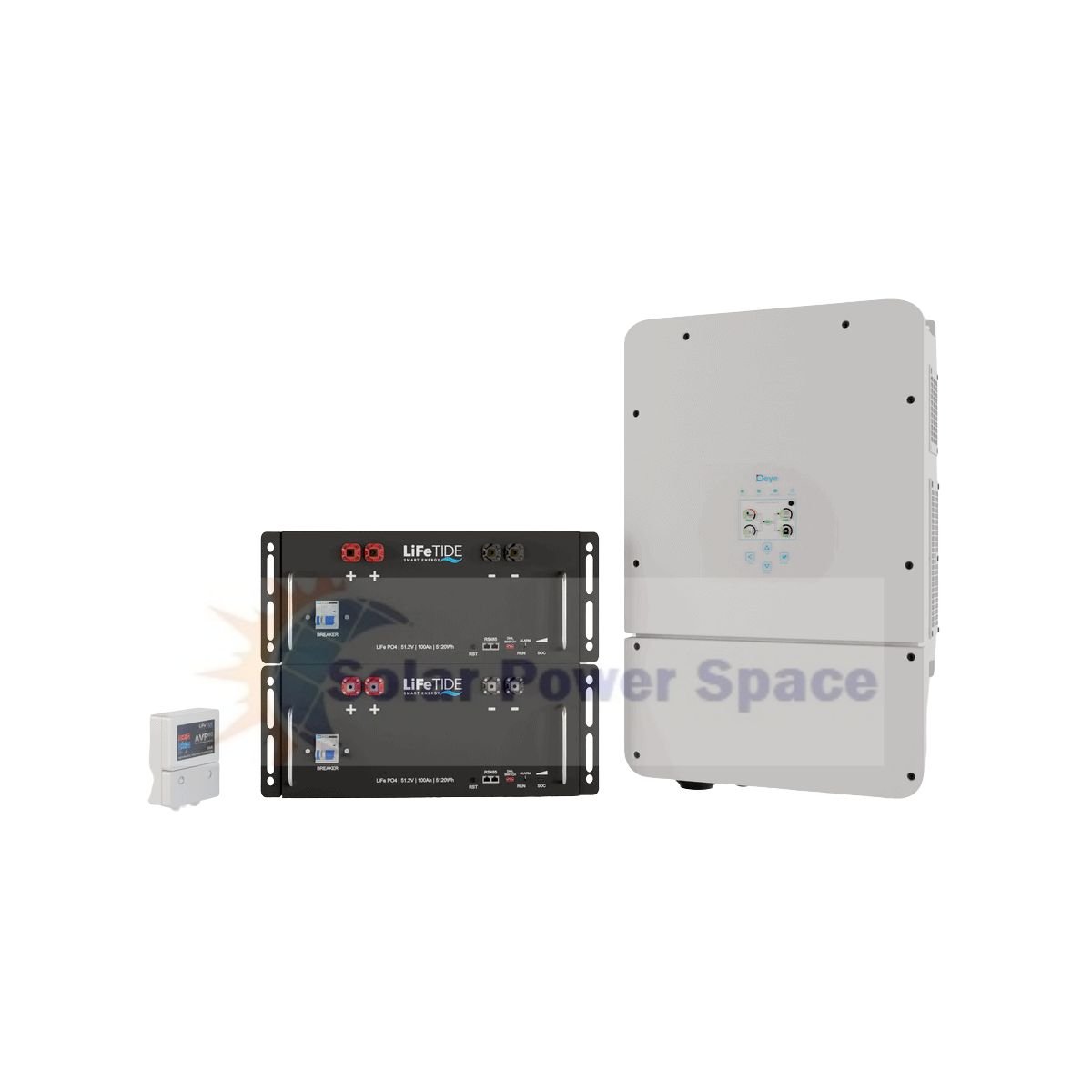

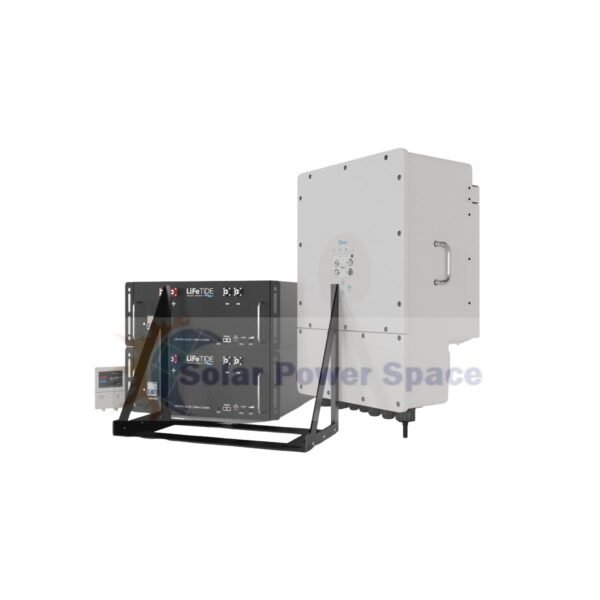

Deye 8kW Hybrid Inverter
Scale Up Over Time
With the flexibility of 2 MPPT’s (Maximum Power Point Trackers), you can start with just one MPPT and expand to utilise the second MPPT at a later date. This scalability allows you to adapt your solar system to your evolving needs and budget.
Need Even More Power
The Deye 8kW Solar Inverter offers the ability to scale up your system by including up to 16 units in parallel. Whether you’re expanding your energy capacity for residential or commercial purposes, this inverter has you covered.
Experience Higher Yields and Reduced Electricity Bills
Improve self-consumption ratio up to 80% for maximum energy utilisation.Reduce your electricity bill with a DC/AC ratio up to 1.3, optimising energy conversion.Designed for double-side PV modular systems, ensuring efficient power generation.Benefit from a Two MPPT design for enhanced performance and flexibility.Achieve maximum efficiency of 97.6% for optimal energy production.
User-Friendly and Convenient
Enjoy easy operation with the LCD touch screen and intuitive buttons.Compatible with both lithium-ion and lead-acid batteries for versatile energy storage options.Monitor your system effortlessly through a web browser or mobile app.
Reliable and Protected
Equipped with PV lightning protection, anti-islanding protection, and leakage current protection.Offers IP65 protection, ensuring durability in various weather conditions.Automatically switches from Grid-Tied to Off-Grid mode within 5ms for uninterrupted power supply.Prevents system feeding into the grid with the zero export function. NRS Approved.Fast reaction time of within 200ms in zero export mode.Smart and Versatile:
Programmable charging and discharging schedules for customised energy management.Compatible with both wind turbines and solar panels as DC input power sources.Paralleling capability of up to 16 units for higher system power.Allows retrofitting of existing solar systems into energy storage systems.
Experience the versatility and scalability of the Deye 8kW Solar Inverter, empowering you to customise and optimise your solar energy system over time. Enjoy reliable power, uninterrupted performance, and the flexibility to adapt to your energy needs.
