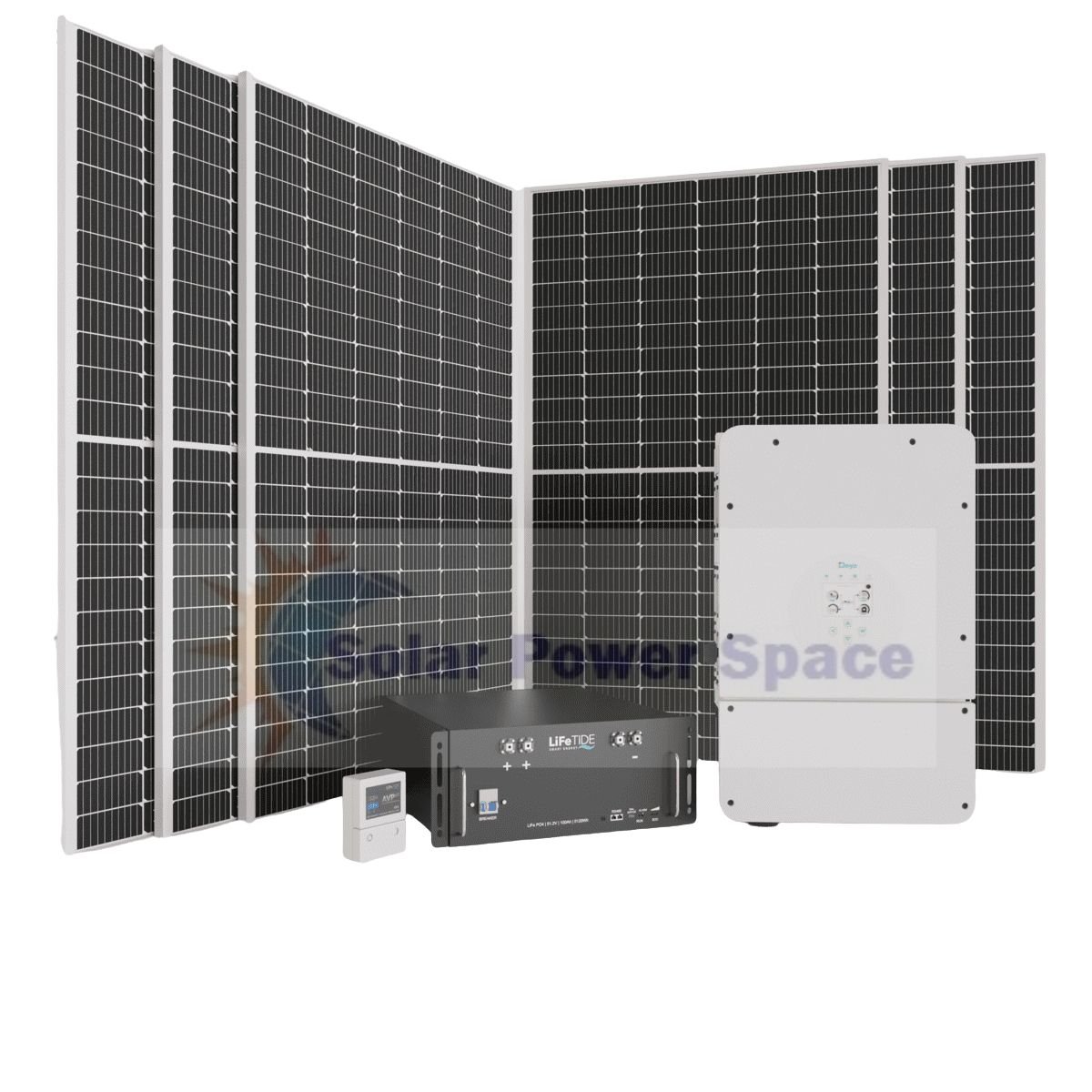

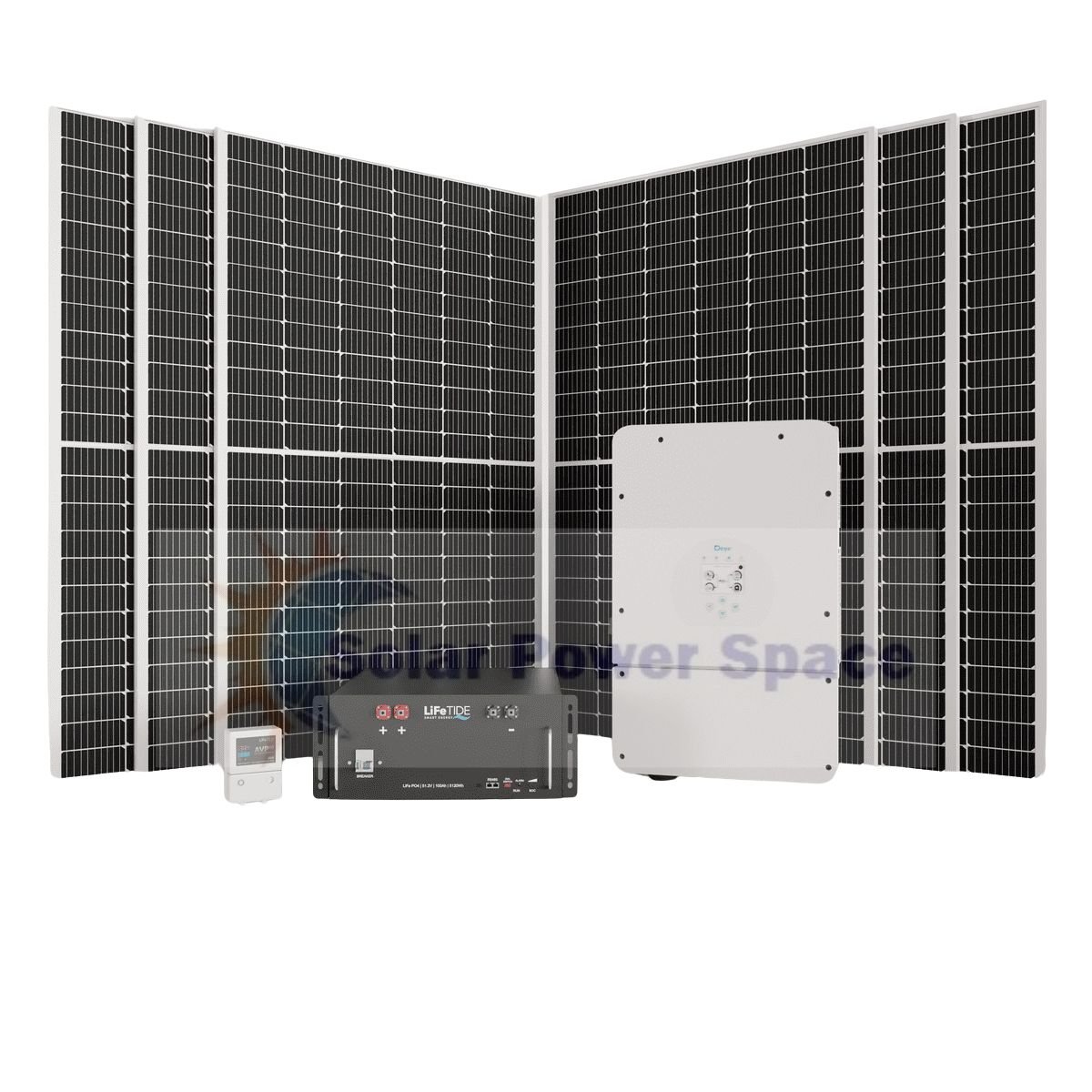

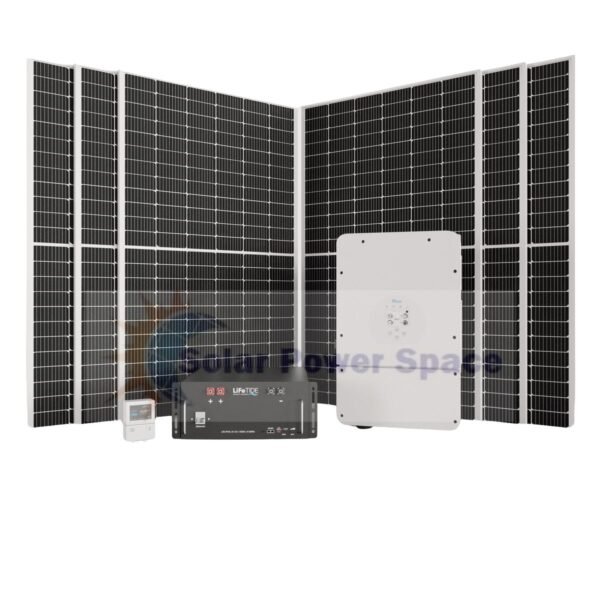

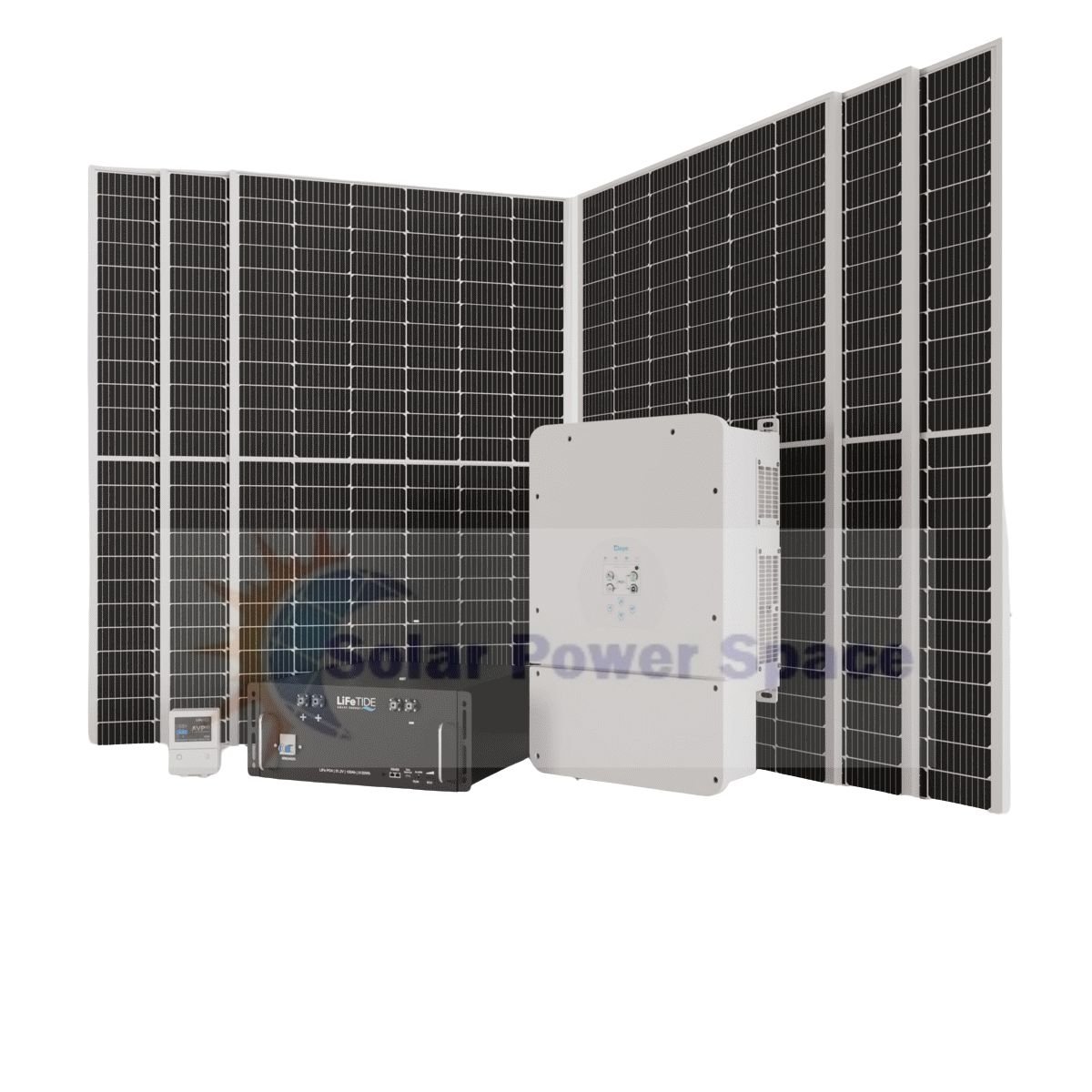

8kW Deye Solar System | 5120Wh Battery | 5x 565W JA Solar Panels
R54 099,00
8kW Deye Solar System | 5120Wh Battery | 5x 565W JA Solar Panels
Need help choosing the right Solar equipment? Call us today!
Everything you need when the power goes out:
INVERTER: Deye Hybrid Inverter | 8Kw | 48V
BATTERY: LiFePO4 | 51.2V | 100Ah | 5120Wh (LiFeTIDE, Dyness or similar)
PANELS: 5x JA Solar 565W Bifacial Solar Panel
CABLES: LiFeTIDE 150mm Red & Black Battery Connectors
~ Please contact us for a final quote ~
~ Installation is not included ~
Description
LiFePO4 | 51.2V | 100Ah | 5120Wh
THE BATTERY
8kW Deye Solar System | 5120Wh Battery | 5x 565W JA Solar Panels. The 5120Wh LiFePO4 Batteries offered by Solar Power Space RSA are a high-capacity and reliable energy storage solution. JA Solar 565W Bifacial Panels – Maximum Energy Generation. Best 8kW Solar System South Africa – Deye vs Growatt vs LuxPower. 8kW Deye Hybrid Solar System – Smart Power for South Africa. Includes 5120Wh LiFePO4 Battery + JA Solar 565W Bifacial Panels. Beat Load Shedding with seamless backup power. Smart hybrid tech – works with solar, grid, or both. Expandable system – add more panels & batteries as you grow. Nationwide delivery – order your Deye 8kW Solar Kit today.
These cutting-edge batteries utilize advanced Lithium Iron Phosphate (LiFePO4) technology, ensuring exceptional performance and longevity. With its impressive 5120Wh capacity, these battery offers ample power for off-grid applications, backup power systems, or renewable energy storage. Enjoy the benefits of long cycle life, fast charging capabilities, and high energy density, providing you with a dependable and sustainable energy solution.
Features:
- Ultra-reliable Lithium Iron Phosphate Technology.
- High Performance Tier One A+ Cells
- Power output = 5.12kW (continuous).
- Fully rechargeable in 2 hours.
Robust & Durable:
- Can be discharged to 100% DoD.
- 6,000 Cycles @ 80% DoD
- 99% Efficiency
- Laser Welded Cell Connections
Safe & Secure:
- Over-charge, over-discharge & short-circuit protection.
- Temperature, Voltage and Current Monitoring
- Non-combustible & 100% Recyclable.
- Smart Battery Monitoring System
- Built-In Fire Extinguisher
- Environmentally Friendly & Lead-Free
- Built-In Circuit Breaker
General Specification:
- Battery Chemistry: Lithium Iron Phosphate (LiFePO4).
- Nominal Voltage: 51.2V.
- Ah Rating: 100Ah @C1, 25°C.
- Rack Mount or Cabinet Storage
- Maximum Energy Density
Physical Attributes:
- Dimensions – Main enclosure: 442mm x 470mm x 155mm (W x D x H).
- Net Weight: 48.0kg .
- 5 Year Warranty
Voltage
- Voltage: 51.2VDC
- Nominal Capacity: 100Ah
- Watt Hours: 5120Wh
- Charging Voltage (Bulk/Absorb): 56.2V ± 0.2V
- Float: 54V ± 0.2V
- Low DC Cutoff: 47V-44V depending on load
- Charing Current: 100A (30A – 50A recommended)
- Discharging Current: 100A
Deye Hybrid | 8kW | 48V
THE INVERTER
Experience the incredible versatility of the Deye 8kW Solar Inverter with its innovative blending technology and the ability to cater to both Essential and Non-Essential Loads.
This exceptional inverter offers a wide range of applications:
- Grid-Tied Inverter: Utilise the inverter with solar panels only, seamlessly connecting to the grid to maximise your solar energy production and reduce your reliance on the utility.
- Load Shedding Solution: Use the inverter with batteries only, providing a reliable backup power source during load shedding or grid outages. Keep your essential loads powered and maintain your daily activities uninterrupted.
- Hybrid Solution: Enjoy the best of both worlds by harnessing the power of solar energy and the grid. The Deye 8kW Solar Inverter enables you to charge your batteries using solar panels and the grid, ensuring a continuous power supply during outages or load shedding.
Battery Input Data
- Battery Type: Lead-acid or Li-lon.
- Battery Voltage Range (V): 40-60V.
- Max.Charging Current (A): 190A.
- Max.Discharging Current (A): 190A.
- Charging Curve: 3 Stages/Equalization.
- External Temperature Sensor: Optional.
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data
- Max. DC Input Power (W): 10400W.
- PV Input Voltage (V): 370V (100V – 500V).
- MPPT Range (V): 125V – 425V.
- Full Load DC Voltage Range: 240V – 425V.
- Start-up Voltage (V): 150V.
- PV Input Current (A): 18A+18A.
- No.of MPPT Trackers: 2.
- No.of strings per MPPT Tracker: 2+2.
AC Output Data
- Rated AC Output and UPS Power (W): 8000W.
- Max. AC Output Power (W): 8800W.
- Peak Power (off grid): 2 times of rated power, 10 S.
- AC Output Rated Current (A): 33.4A/35A.
- Max. AC Current (A): 38.3A/40A.
- Max Continuous AC Passthrough (A): 50A.
- Power Factor: 0.8 leading to 0.8 lagging.
- Output Frequency and Voltage: 50/60Hz; 120/240Vac(split phase), 208Vac(2/3 phase),230Vac(single phase).
- Grid Type: Split phase / 2/3 phase / Single Phase.
- Current Harmonic Distortion: THD<3%(Linear Load<1.5%).
General Data
- Operating Temparature Range (C): -25-60C, >45C Derating
- Cooling: Fan
- Noise(dB): <30
- Communication with BMS: RS485;CAN
- Weight (Kg): 20.5
- Size (Length x Widthx Height mm): 670 x 420 x 233mm
- Protection Degree: IP65
- Installation Style: Wall mounted
- Warranty: 5 Years
Bifacial Solar Panel | 565W
JA SOLAR PANEL
The JA Solar 565W Bifacial Solar Panel is designed to capture sunlight from both sides, these advanced panels increase energy generation by up to 30% compared to traditional monofacial panels.
Upgrade your solar system with the cutting-edge JA Solar 565W Bifacial Solar Panel and experience a significant boost in energy generation. Harness the sun’s power from both sides and take a step towards a greener future. Export-ready 8kW Deye Hybrid Solar System with JA Solar 565W panels & LiFePO4 battery storage – engineered for international standards
Impressive Power Output
Boasting an impressive 565W power output, these bifacial panels ensure maximum energy production for your solar system.
Bifacial Technology
The dual-sided design enables sunlight absorption from both the front and rear sides, harnessing reflected light to generate additional power.
Durable and Weather-Resistant
Crafted with premium materials, the JA Solar 565W panels are built to withstand harsh weather conditions, ensuring long-lasting performance.
Versatile Applications
Whether you’re installing a residential or commercial solar system, this panel is suitable for a wide range of applications. Its versatility allows for seamless integration into various rooftop or ground-mounted installations.
Eco-Friendly and Sustainable
By harnessing solar energy, you contribute to a cleaner and more sustainable future. The JA Solar 460W Monocrystalline Solar Panel enables you to reduce your carbon footprint and lower your reliance on fossil fuels.
Rigorous Quality Control
JA Solar is renowned for its strict quality control measures, ensuring that each solar panel meets the highest industry standards. You can trust in the reliability and longevity of the JA Solar brand.
Easy Installation
The panel features a user-friendly design, making installation quick and hassle-free. Compatible with various mounting systems, it allows for flexible and convenient installation options.
PRODUCT SPECIFICATIONS
| Weight | 278.20 kg |
|---|---|
| Dimensions | 61 × 52 × 92 cm |
| Brand | LiFeTIDE, Deye, JA Solar |
| Product Type | Solar System |
| System Phase | Single Phase |
| System Type | Hybrid |
| kW Size | 8kW |
| Battery Storage Capacity | 5120Wh/battery |
| Amp Hours (Ah) | 100Ah/battery |
| Battery Cycles | >6000/battery |
| Depth of Discharge (DoD) | 80% |
| Energy Storage | Lithium Iron Phosphate (LiFePO4) Battery |
| Max Parallel Units | 16 Batteries, 16 Inverters |
| Maximum PV Array Power | 10400W/inverter |
| Panel Watts | 565W/panel |
| Panel Cell Type | Bifacial |
| Panel Efficiency | 21.9% |
| Mounting | Battery Cabinet, Roof Mounting, Wall Mount |
| Voltage | 48V |
| Warranty | Manufacturer Warranty Per Item |
Get uninterrupted power during load shedding in Johannesburg, Cape Town, Durban, Pretoria, Bloemfontein, East London, Port Elizabeth, Polokwane, Kimberley, and Nelspruit with the 8kW Deye Hybrid Solar System, Available across Gauteng, Western Cape, KwaZulu-Natal, Eastern Cape, Limpopo, Mpumalanga, Free State, North West, and Northern Cape, Perfect for homes, offices, farms, guest houses, and small businesses in South Africa, Power up your property in Namibia, Botswana, Zimbabwe, Mozambique, Zambia, Lesotho, and Eswatini with the 8kW Deye Solar Kit, Trusted by installers across Southern Africa for lodges, schools, rural projects, and commercial solar systems. Designed for Africa’s climate – LiFePO4 batteries + bifacial panels for maximum efficiency.
