Canadian Solar 555W Mono PERC HiKU6 with MC4-EVO2

Description

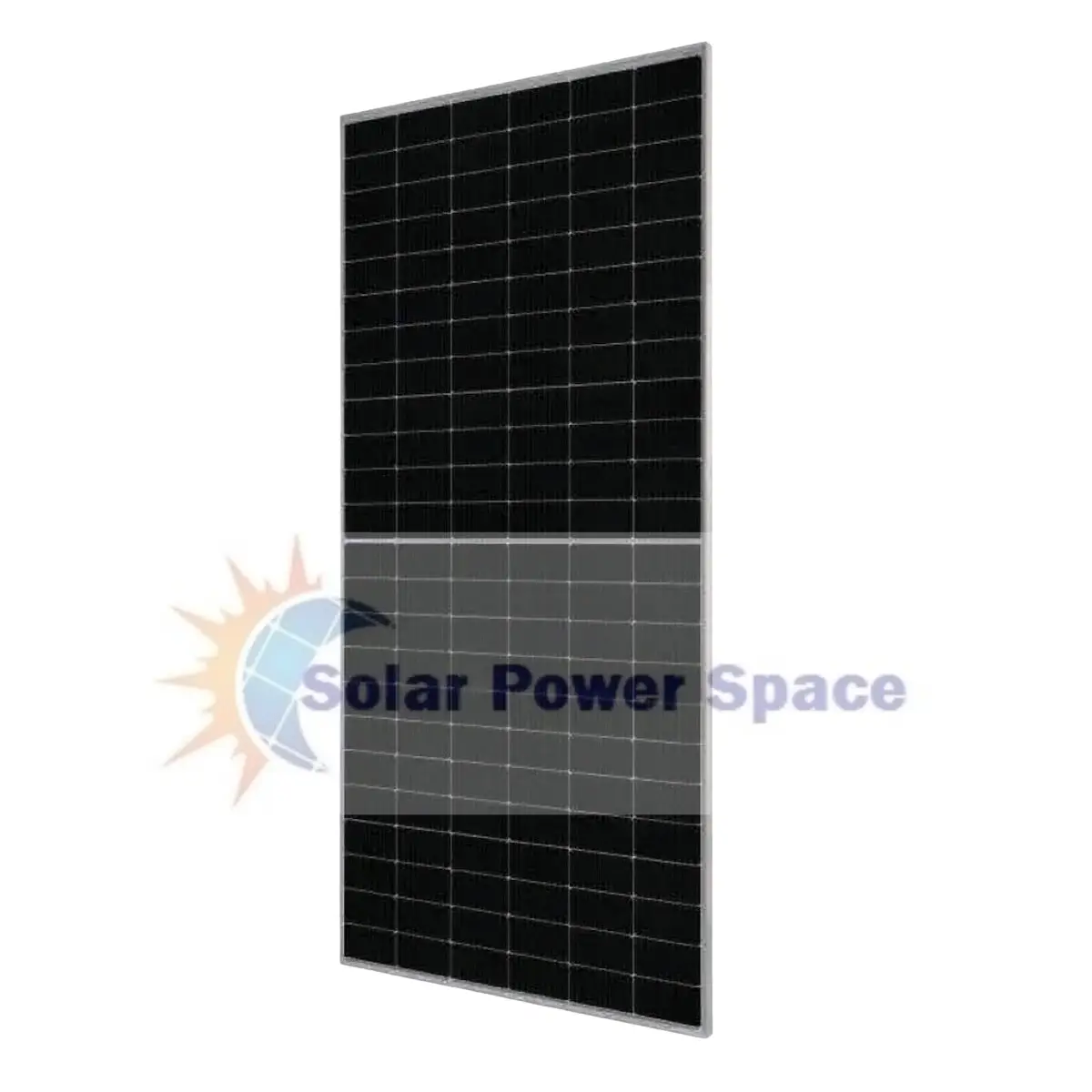

Canadian Solar 555W Mono PERC HiKU6 (MC4-EVO2)

The Canadian Solar 555W Mono PERC HiKU6 with MC4-EVO2 connectors is designed to deliver reliable power generation and long-lasting durability. Using advanced mono PERC cell technology, this module balances high efficiency with cost-effectiveness, making it suitable for a wide range of projects from residential rooftops to utility-scale plants.

This panel achieves a maximum output of 560W with efficiency ratings up to 21.7%, providing more energy per square meter and lowering overall system costs. Comprehensive LID and LeTID mitigation technology helps limit long-term degradation, ensuring consistent energy production throughout the panel’s life. Thanks to its half-cut cell design, the HiKU6 also handles shading more effectively, maintaining stable performance even in less-than-ideal conditions.

Built for demanding environments, the module is certified to withstand snow loads of up to 5400Pa and wind loads of up to 2400Pa. Its robust construction minimizes the effects of micro-cracks, further extending its operational life. Backed by a 12-year product warranty and a 25-year power output warranty, it offers peace of mind alongside strong performance.

The HiKU6 has been tested and certified under international standards including IEC, UL, CE, MCS, and UKCA, and is manufactured under ISO-certified quality, environmental, and occupational safety systems.

Key Electrical Data (STC):

• Rated Power: 555W

• Operating Voltage: 41.9V

• Operating Current: 13.25A

• Open Circuit Voltage: 49.9V

• Short Circuit Current: 14.0A

• Module Efficiency: 20.5%

• Temperature Range: -40°C to +85°C

• Maximum System Voltage: 1500V (IEC/UL)

• Power Tolerance: 0 to +10W

Mechanical Overview:
The panel uses monocrystalline half-cut cells arranged in a 144-cell format. It measures 2,278 × 1,134 × 30 mm and weighs 27.6 kg. The front surface is protected by 3.2mm tempered glass with an anti-reflective coating, supported by an anodized aluminium alloy frame. Junction boxes are rated IP68 with three bypass diodes, and the module comes with 4mm² (IEC) / 12 AWG (UL) cables and MC4-EVO2 compatible connectors.

Temperature Coefficients:

• Pmax: -0.34% / °C

• Voc: -0.26% / °C

• Isc: +0.05% / °C

• Nominal Operating Temp: 41 ± 3°C

⚠️ Installation Note: All solar products must be installed by qualified professionals in compliance with local electrical codes and safety standards. Incorrect installation may result in reduced performance or void warranties.
