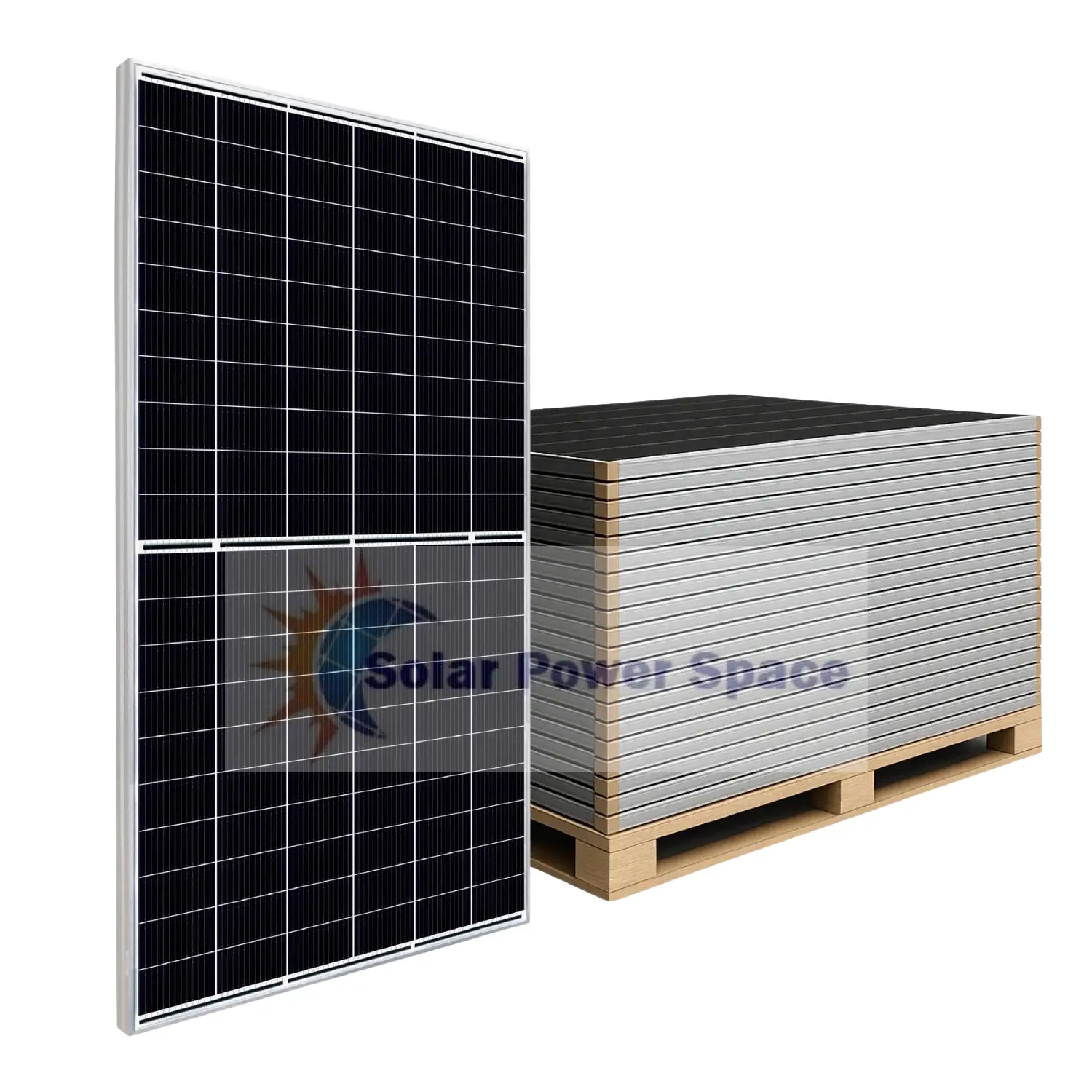

Canadian Solar HiKu6 550W Mono PERC Solar Panel Pallet of 31

Description

Canadian Solar HiKu6 550W Mono PERC Solar Panel Pallet of 31

The Canadian Solar 550W Mono PERC HiKU6 with MC4-EVO2 connectors is designed for projects that demand high efficiency, durability, and long-term reliability. Using advanced mono PERC technology, this module can achieve up to 21.5% efficiency, helping to deliver more power in the same footprint. Its MC4-EVO2 connection ensures both safety and a durable installation, making it suitable for residential rooftops, commercial arrays, and large-scale utility projects.

This panel not only boosts energy production by up to 550W per module but also contributes to lower overall system costs. With up to 4.5% reduction in LCOE and 5.6% reduction in total system cost, it provides a strong balance between upfront investment and long-term performance. Thanks to Canadian Solar’s comprehensive LID and LeTID mitigation technology, long-term degradation is reduced by up to 50%, ensuring that the panel maintains its performance over decades of use. The half-cut cell design improves shading tolerance, which translates into more stable energy output in real-world conditions.

Built to withstand harsh environments, the HiKU6 handles snow loads of up to 5400 Pa and wind loads up to 2400 Pa. Its rugged design minimizes the impact of micro-cracks, which are common issues that can shorten the lifespan of solar modules. Canadian Solar backs this reliability with a 12-year enhanced product warranty covering materials and workmanship, plus a 25-year linear power warranty, ensuring dependable performance year after year.

Technical Highlights (STC):

• Maximum Power Output: 550W

• Efficiency: 21.3%

• Voltage (Vmp): 41.7V | Current (Imp): 13.20A

• Open Circuit Voltage (Voc): 49.6V | Short Circuit Current (Isc): 14.0A

• Operating Temperature: -40°C to +85°C

• Max. System Voltage: 1500V (IEC/UL)

• Fire Rating: UL Type 1 / Type 2 or IEC Class C

• Power Tolerance: 0 ~ +10W

The panel is constructed with 144 monocrystalline half-cut cells, measures 2,278 × 1,134 × 30 mm, and weighs 27.6 kg. A 3.2mm tempered glass front with anti-reflective coating and an anodized aluminium frame ensure robust protection. It includes an IP68-rated junction box with three bypass diodes, 4mm² (IEC) / 12 AWG (UL) cables, and MC4-EVO2 compatible connectors.

Temperature Coefficients:

• Pmax: -0.34% / °C

• Voc: -0.26% / °C

• Isc: +0.05% / °C

• Nominal Operating Temperature: 41 ± 3°C

Certified under international standards including IEC 61215, IEC 61730, UL 61730, IEC 61701, IEC 62716, CE, and ISO-based manufacturing standards, the 550W HiKU6 is manufactured to the highest levels of quality and safety.

Installation Note: This module must be installed by qualified professionals following all relevant electrical codes and local regulations. Incorrect installation may reduce performance or void warranties.
