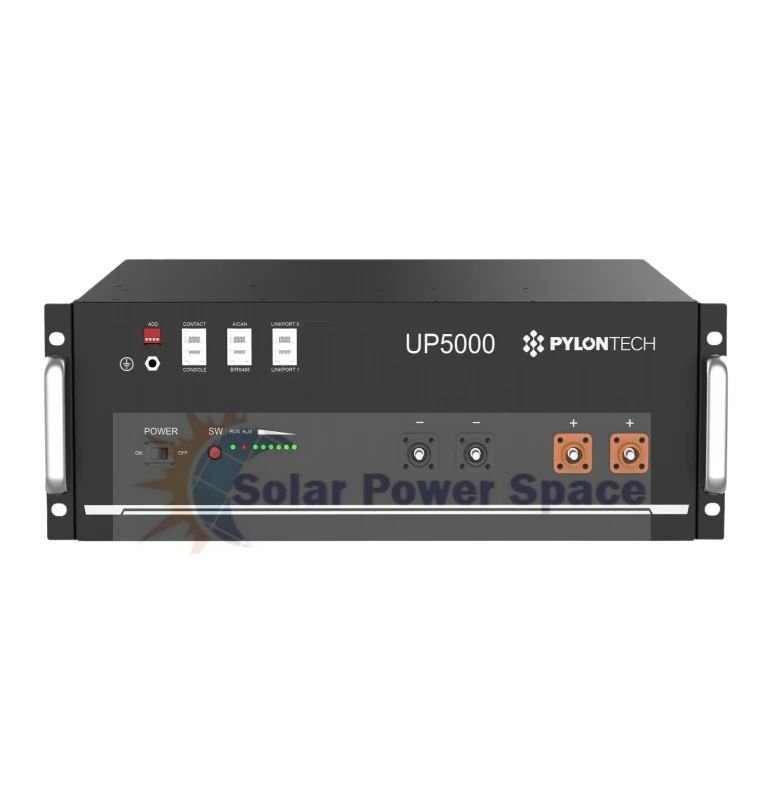

Pylon UP5000 4.8kWh Li-Ion Solar Battery 48V
R 29,809.00
Features
- 5 Year Warranty
- Highest Safety
- Fantastic Life-Cycle
- State of Health Monitoring
- State of Charge Monitoring
- Stackable, easy to add more
- Advanced BMS (Battery Management System)
- Best-Selling in Africa
- Compatible with various Inverters
Product Description
Top Features
Parallel Connection
A fantastic feature for those wanting to expand their system at a later stage is the ability to add more batteries to expand your battery capacity.
Long-life Quality Lithium-ion Battery
Vertical industry integration ensures 4500 cycles with 95% DOD. Developed with their own LFP (lithium iron phosphate) cell to ensure the highest safety and most promising cycle life.
BMS protected
Self-designed BMS protects the cell from abnormal temperatures, surges and irregular voltages.
Compatibility
Compatible with most of the leading inverters on the market. Its compact and fashionable design fits in your home environment
You can optionally add mounting brackets BRACK-US3000 to this product for a stable base, and to allow easy stacking of multiple units.
- Modular design for ease of expansion
- Higher usable capacity resulting in less battery modules installed
- Usable capacity 4560Wh
- Parallel Capability of up to 16 units
- Allows for large installation of up to 72.96kWh with no LV Hub
- Intelligent BMS protecting battery cells
- 95% DoD with more usable capacity
- RS485 and CAN compatible
- Comes with a 5-year warranty non-extendable
5-Year Warranty
Of the products that sell, the PylonTech batteries are only compatible with the Solis Hybrid, Deye Hybrid, Fusion, Voltronic Axpert, Growatt, GoodWe ES, EM and the Victron Multiplus 48V.
What you can run with a 5kWh 0.5C Battery (80% DOD):
You can run the following for around 4 hours
MODEM, PHONE, 6 X LED LIGHTS, FRIDGE
The maximum discharge for a 5kWh 0.5C battery is 2.5kWh
Please note: The above is only an example.
Additional information
| Weight | 41 kg |
|---|---|
| Dimensions | 442 × 420 × 165 mm |
| Brand | PylonTech |
| Storage Size | 4.8kWh |
| Storage Type | Lithium-ion |
| Ah | 100Ah |
| DoD | 95% |
| Cycles | 4500 |
| Volt Size | 48V |
| Parallel | Yes |
| Max Parallel Units | 16 |
| BMS System | Yes |
| Warranty | 5 Years |
| Best for | Commercial |
| Product type | Battery |
| Mounting Type | Rack-Mounted |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Solar Power Space Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
