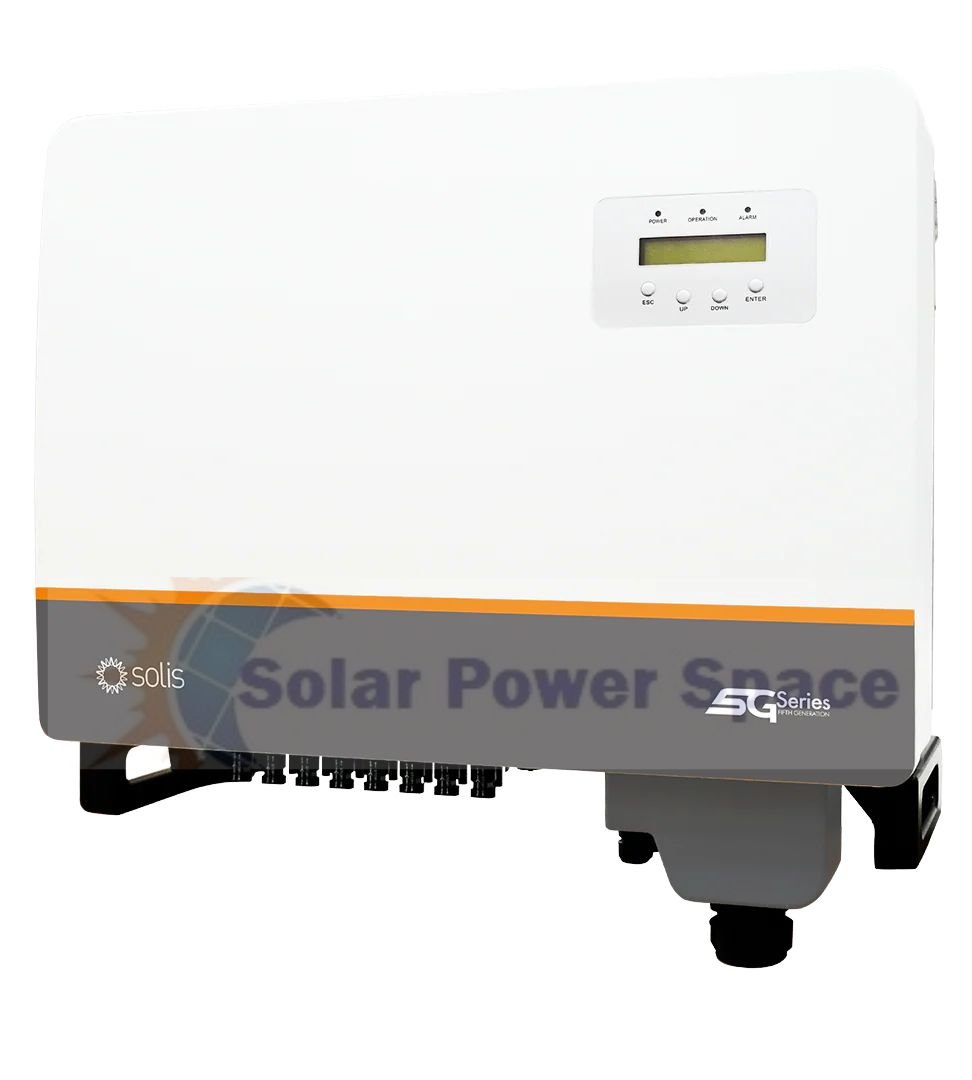

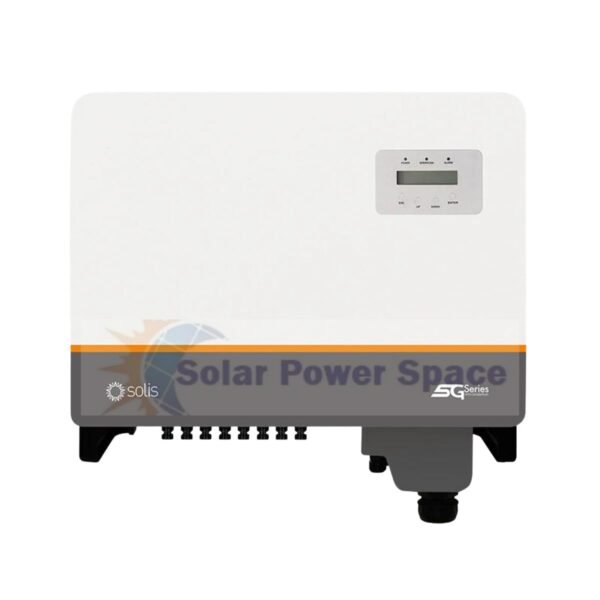

Solis S5 25.0kW Triple MPPT 3-Phase Grid Tie Inverter

Original price was: R39 198,00.Current price is: R37 255,00.
Price incl. VAT

Solis S5 25.0kW Triple MPPT 3-Phase Grid Tie Inverter

Key Benefits

  • High Power Performance: Handles up to 37.5kW DC input with strong 25kW AC rated output.

  • Triple MPPT Flexibility: Optimizes energy harvest even under partial shading.

  • Advanced Protection: Type-II surge protection (DC & AC), arc-fault, reverse-polarity, and more.

  • Durable & Weatherproof: IP65 design ensures long-lasting operation outdoors.

  • Certified & Trusted: SA: NRS 097 and COCT certified for South African grid compliance.

  • Quiet & Efficient: Operates at <30 dBA with natural convection cooling.

~ Please contact us for a final quote ~

~ Installation is not included ~

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. Solar Power Space RSA will not be held liable for any product malfunctions as a result of incorrectly installed systems.
Category:
Tags: , , , , , , ,
Brands:

Description

S5-GCP25K Three Phase String Inverter – Reliable Power for Bigger Energy Needs

At SOLAR POWER SPACE RSA, we provide premium solar solutions designed for performance, durability, and compliance. The S5-GCP25K Three Phase String Inverter is the ideal choice for residential estates, small industries, and commercial PV power plants that need reliable, high-capacity solar energy conversion.

This inverter delivers up to 98.5% efficiency, ensuring you maximize every ray of sunlight while keeping energy costs low. With triple MPPT inputs, advanced surge protection, and robust IP65 protection, it’s built to perform in South Africa’s toughest conditions.

Certified to SA: NRS 097 and COCT standards, this inverter gives you peace of mind that you’re investing in a system that is both safe and compliant.

Technical Specifications

Category Unit Information
Model – S5-GCP25K
Energy Source – PV
Max. DC Input Power kW 37.5
Max. DC Input Voltage V 1100
Rated Voltage V 600
Start-up Voltage V 180
MPPT Voltage Range V 160–1000
Max. Input Current A 32 / 32 / 32
MPPT Number / Max Input Strings – 3 / 6
Rated Output Power kW 25
Max. Apparent Output Power kVA 27.5
Max. Output Power kW 27.5
Rated Grid Voltage V 3/N/PE, 220V / 380V, 230V / 400V
Rated Grid Frequency Hz 50/60
Operation Phase – Three
Rated Grid Output Current A 38.0 / 36.1
Max. Output Current A 41.8
Power Factor – 0.8 leading…0.8 lagging
THDi – <1.5%
Max. Efficiency % 98.5
EU Efficiency % 98.1
Protections – Reverse polarity, Short circuit, Over current, Over voltage, Insulation monitoring, Residual current, Anti-islanding, Temperature, Surge (DC Type II / AC Type II)
Dimensions mm 647(W) × 629(H) × 252(D)
Weight kg 37
Topology – Transformerless
Night Self-consumption W <1
Operating Temperature °C -25 ~ 60
Ingress Protection – IP65
Noise Emission dBA <30
Cooling Concept – Natural convection
Max. Operation Altitude m 4000
Designed Lifetime – >20 years
Grid Connection Standard – EN50438, G59/3, AS4777, VDE0126-1-1, IEC61727
Relative Humidity % 0–100
Safety/EMC Standard – IEC62109-1/-2, AS3100, EN61000-6-1, EN61000-6-3
Connections – DC: MC4, AC: Terminal connectors
Display – LCD
Communication – RS485, Optional: Wi-Fi, GPRS
Certifications – SA: NRS 097 Certified, COCT Certified

⚠️ Important Notice:
All solar products, inverters, and related components must be installed by qualified personnel. Installations must comply with local wiring regulations and standards. SOLAR POWER SPACE RSA will not be held liable for malfunctions caused by incorrect installations.
