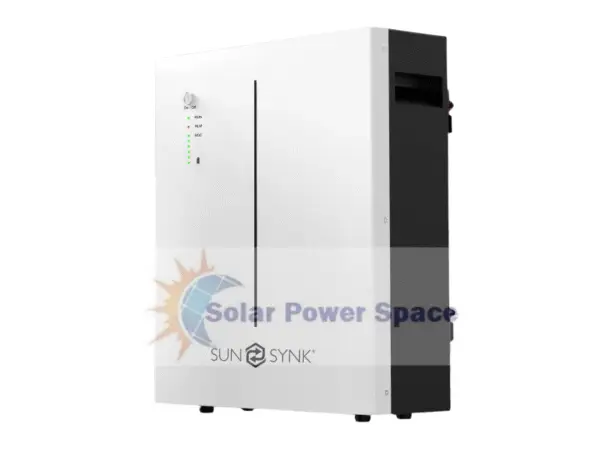

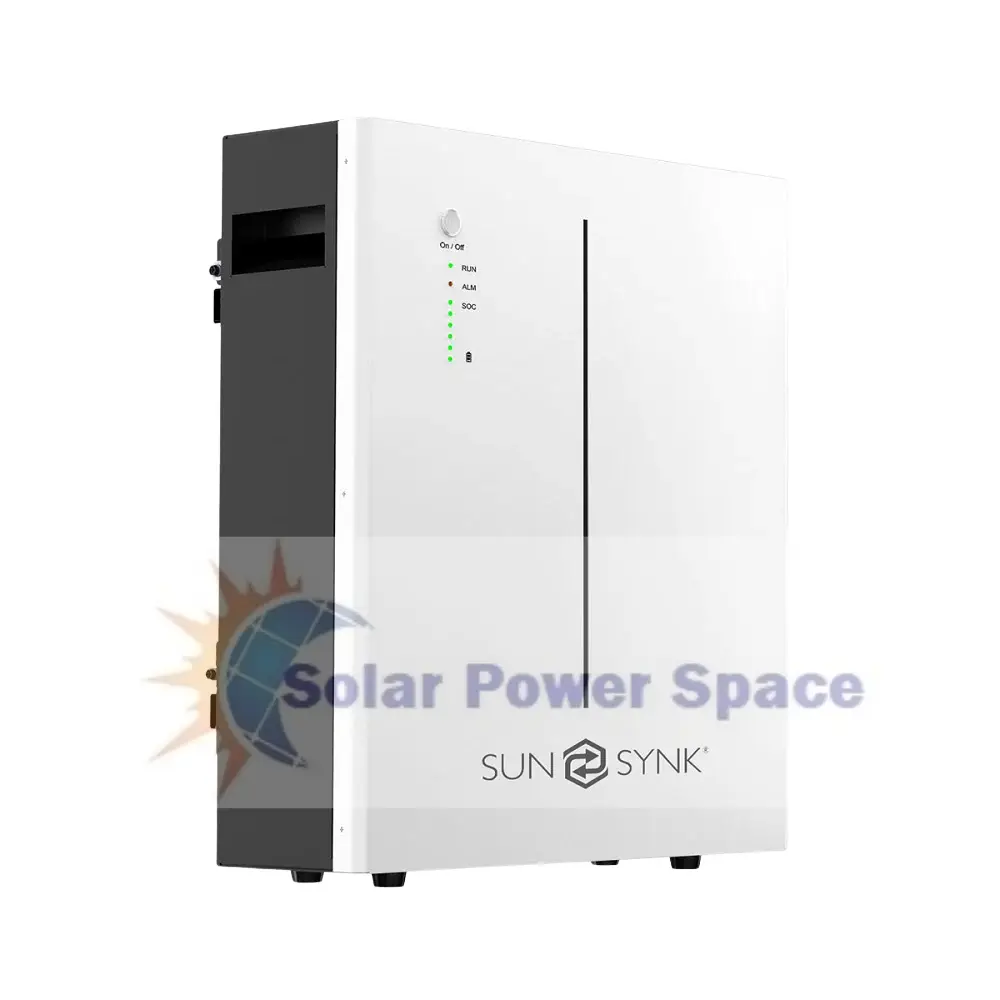

Sunsynk Wall Mount 5.32kWh 51.2V Lithium Battery
R 22,665.00R 28,838.00 (-21%)
Sunsynk Wall Mount 5.32kWh 51.2V Lithium Battery
Product Description
Introducing Sunsynk’s energy storage module well designed for residential UPS and off-grid applications. Cells produced by BYD, a global leader in lithium-ion battery development and manufacturing.
The Sunsynk Battery LFP Wall Mount 5.32kWh 51.2V is made up of Lithium Ion phosphate rechargeable batteries rated at 51.2V with 5.32kWh capacity. In addition, the unit has a built-in battery management system to ensure optimal performance at all times.
Product Description:
WARNING: These batteries contain BYD cells, not to be mistaken for the Sunsynk batteries which contain CATL cells. These batteries are almost identical apart from the difference in cell type, but this means you cannot mix BYD and CATL batteries in the same system.
MORE USABLE ENERGY 100% Depth of Discharge FLEXIBLE INVESTMENT Scalable from 5.32 to 42.56 kWh SAFE & RELIABLE Premium Lithium Iron Phosphate(LFP) 6000 cycles EASY INSTALLATION Floor Stand or Wall Mounted QUICK COMMISSIONING One Button ON/OFF Automatic ID Assignment PERFECT COMPATIBILITY Compatible with Major PCS Brand
Technical Specification
Performance
| Nominal Voltage | 51.2 Vdc |
| Nominal Capacity | 104Ah |
| Battery Energy 1 | 5320 Wh |
| Charge Voltage | 55.68~56.16Vdc |
| Discharge Voltage | 45.6-56.16 Vdc |
| Nominal Charge/Discharge Current | 50A |
| Nominal Charge/Discharge Power | 2500W |
| Max Charge/Discharge Current | 100A |
| Max Charge/Discharge Power | 5000W |
| Short Circuit Current | 350A |
| Warranty | 5 Years |
Communication
| Display | SOC status indicator, LED indicator |
| Communication | RS232、RS485、CAN |
General Specifications
| Dimension( W×D×H mm ) | 450×150×533mm |
| Weight (Kg) | 45kg |
| Installation | Floor stand or Wall mounted |
| Working Temperature 2 | -20℃ ~ 60℃ |
| Storage Temperature | ≤25℃,12 months; ≤35℃,6 months; ≤45℃,3 months |
| Operating / Storage / humidity | ≤ 95%RH |
| Max Operating Altitude | ≤2000m |
| IP Rating | IP20 |
| Cell Technology | LiFePO4，Lithium Iron Phosphate |
| Cycle life 3 | 6000 Cycles @ 80% DOD / 25℃ / 0.5C，60% EOL |
| Scalability | Max 8 batteries in parallel |
Important:
All solar products, power systems, water heating and gas products and their components must be installed by appropriately qualified personnel. All installations must adhere to local wiring regulations and standards. Solar Power Space Online will not be held liable for any product malfunctions as a result of incorrectly installed systems.
